Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil fill tube to the valve rocker arm cover, if removed.

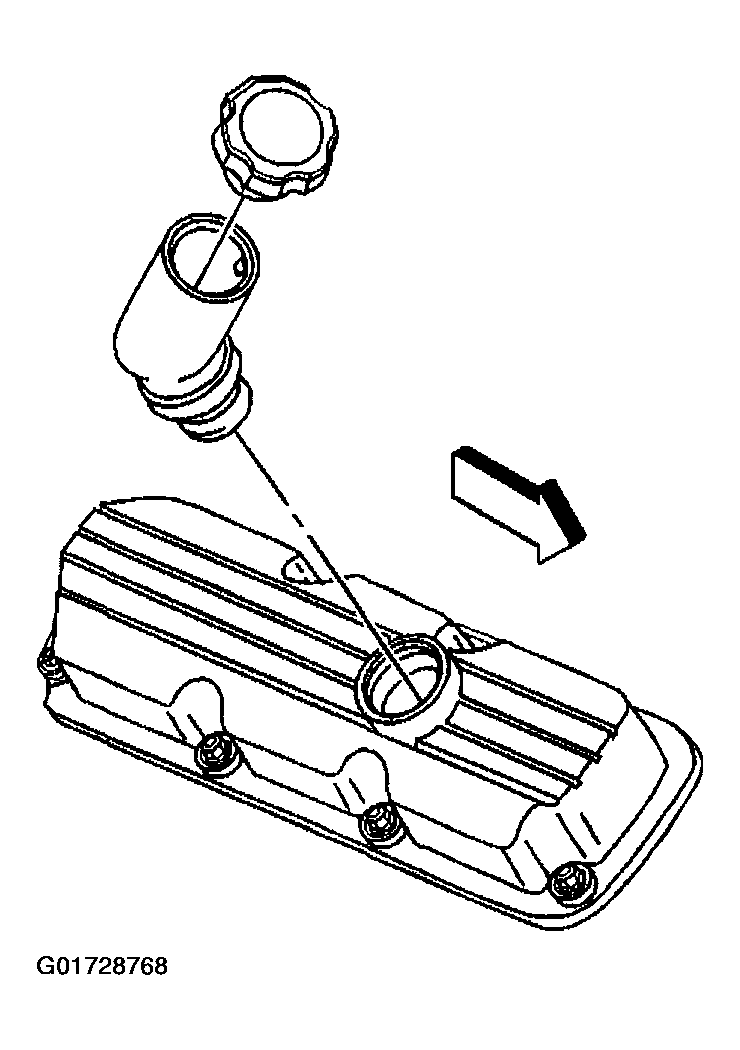

    Fig 1: Installing Oil Fill Tube
    G01728768Courtesy of GENERAL MOTORS CORP.
  2. Apply threadlock GM P/N 12345382, Canada P/N 10953489, or equivalent to the valve rocker arm cover bolt threads.
  3. Install the valve rocker arm cover.

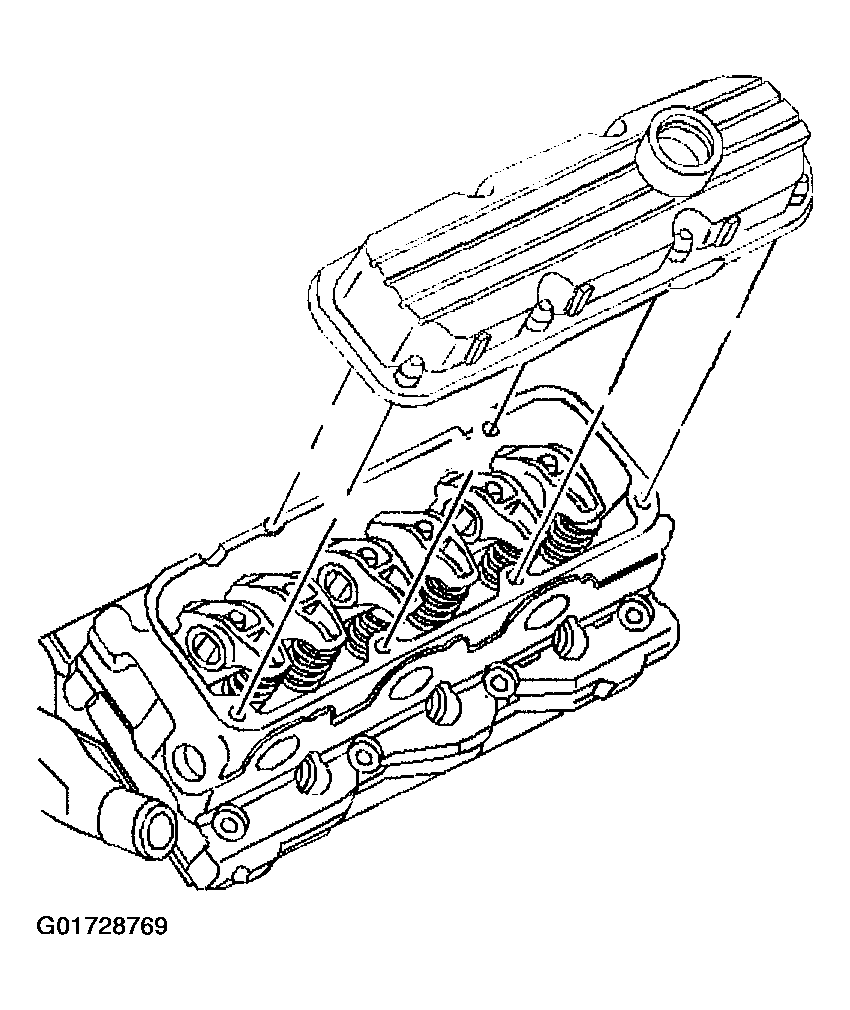

    Fig 2: Installing Valve Rocker Arm Cover
    G01728769Courtesy of GENERAL MOTORS CORP.
  4. Tighten the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 lb in).

  5. Raise the vehicle. LIFTING AND JACKING THE VEHICLE
  6. Install the rear engine lift bracket (3).

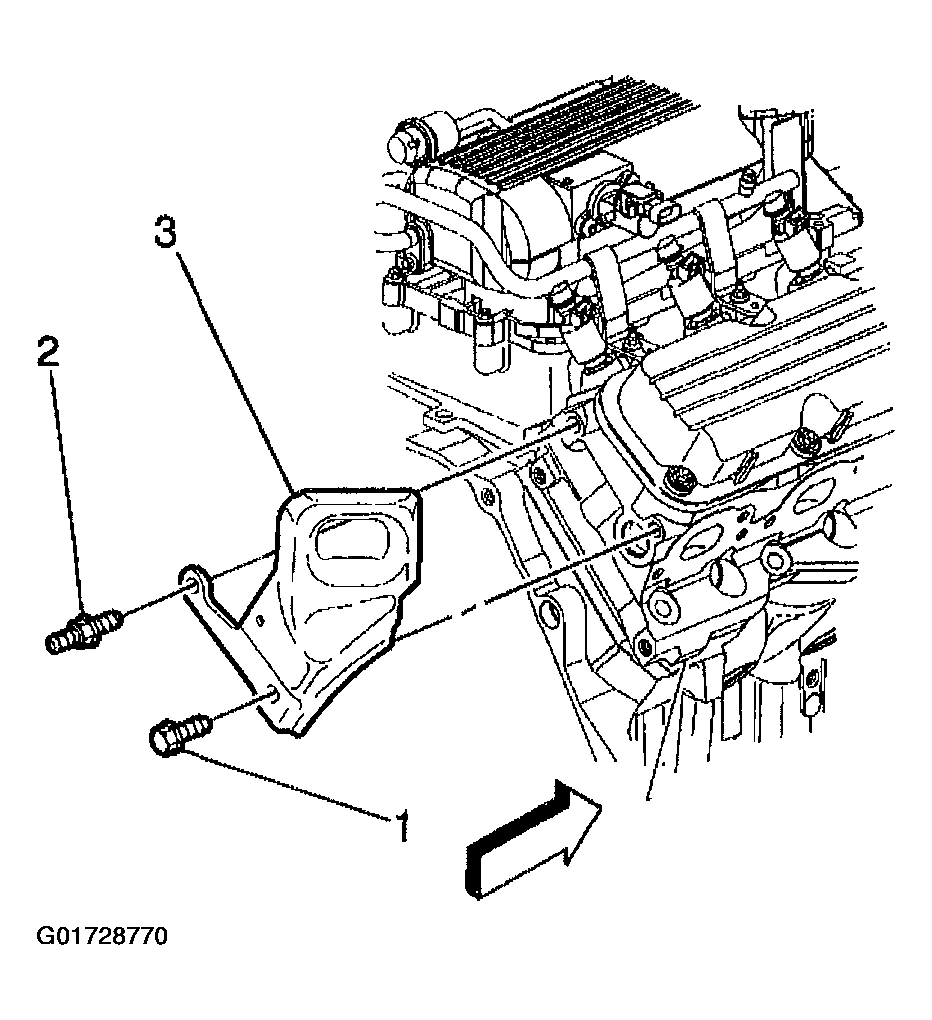

    Fig 3: Installing Rear Engine Lift Bracket
    G01728770Courtesy of GENERAL MOTORS CORP.
  7. Install the rear engine lift bracket stud (2) and bolt (1).

    Tighten

    Tighten the rear engine lift bracket stud (2) and bolt (1) to 30 N.m (22 lb in).

  8. Lower the vehicle.
  9. Install the spark plug wiring harness to the clip.
  10. Install the spark plug wires to the 1,3 and 5 spark plugs.

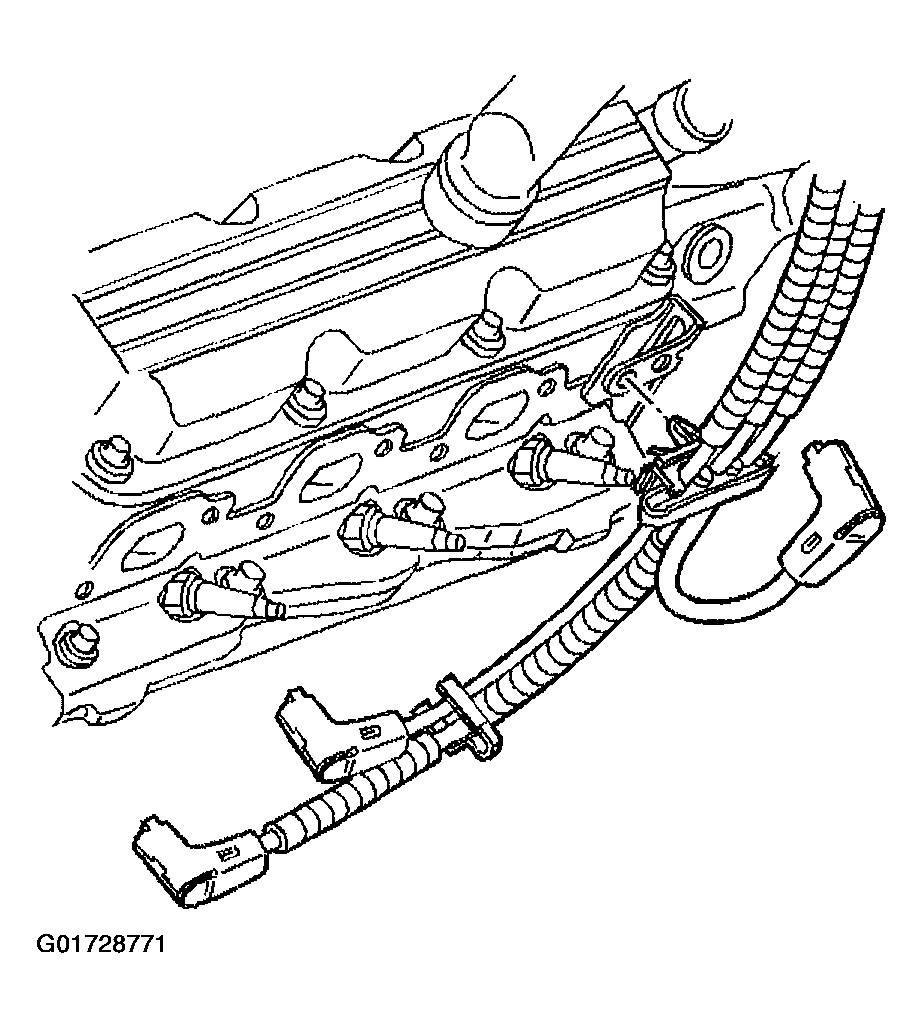

    Fig 4: Installing Spark Plug Wires
    G01728771Courtesy of GENERAL MOTORS CORP.
  11. Install the generator. Refer to GENERATOR .
