Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lower intake manifold. Refer Intake Manifold Replacement - Lower .
  2. Remove the valve rocker arms and the pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  3. Loosen the valve lifter guide bolts.
  4. Remove the valve lifter guide.
  5. Remove the valve lifters.

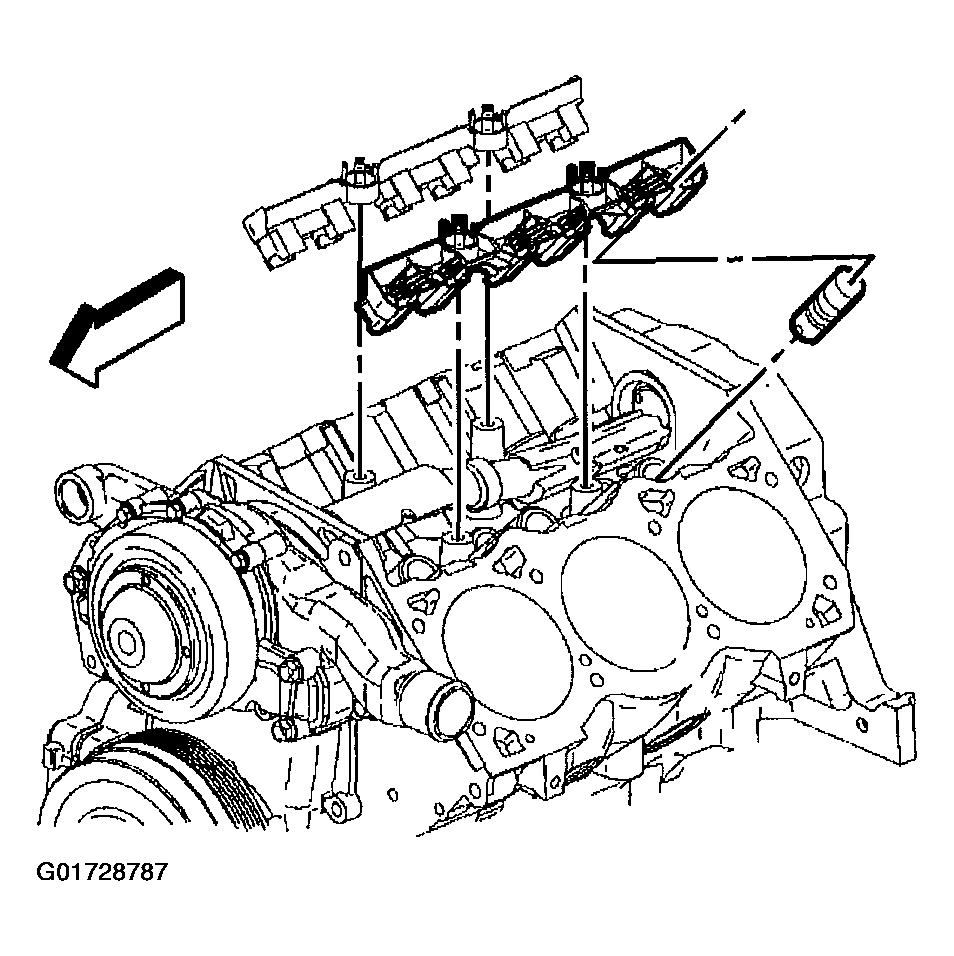

    Fig 1: Removing Valve Lifters
    G01728787Courtesy of GENERAL MOTORS CORP.
