Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

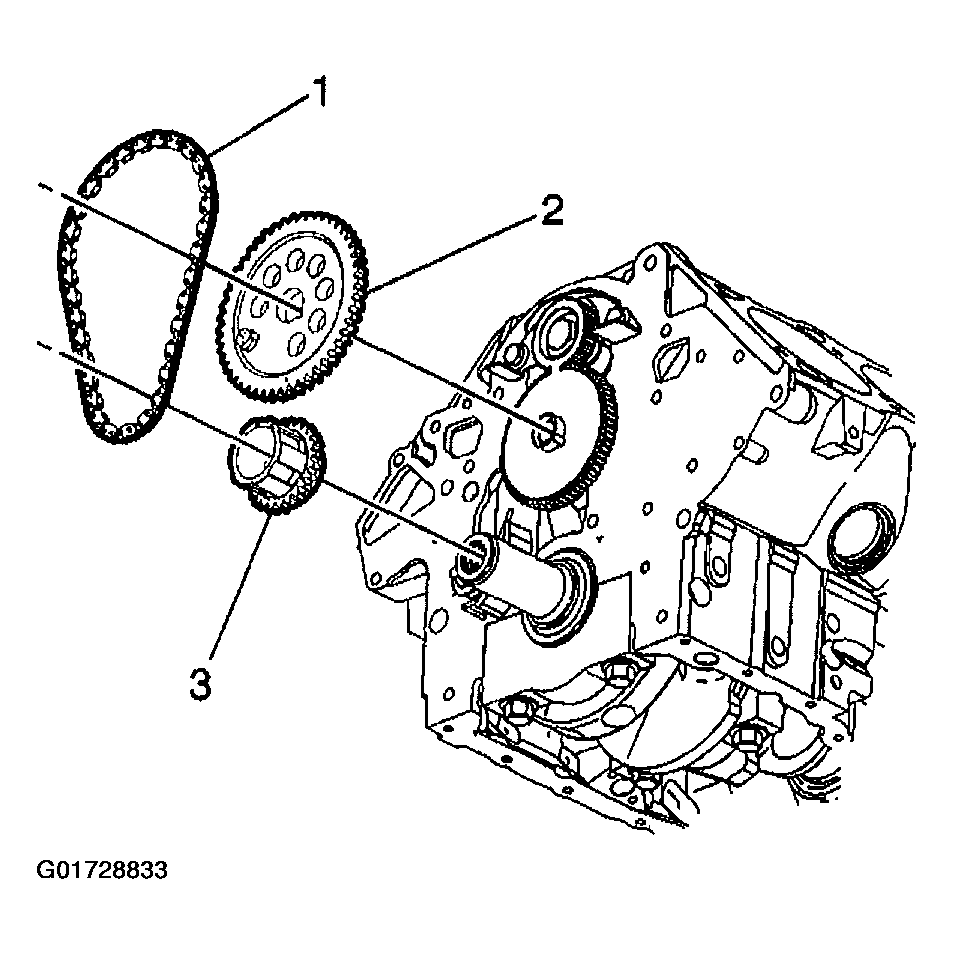

  1. Install the timing chain (1) onto the sprockets (2, 3) with the timing marks in their closest together position.
    Fig 1: Installing Timing Chain
    G01728833Courtesy of GENERAL MOTORS CORP.
  2. Install the timing chain (1) and sprockets (2, 3).
  3. Install the camshaft sprocket bolt.

    Tighten

    Tighten the camshaft sprocket bolt to 100 N.m (74 lb ft). Use the J 36660-A to torque the camshaft sprocket bolt an additional 90 degrees.

  4. Install the timing chain dampener.
  5. Install the timing chain dampener bolt.

    Tighten

    Tighten the dampener bolt to 22 N.m (16 lb ft).

    Important:  Rotate the engine two revolutions and check the timing marks. Ensure the marks are aligned.

  6. Install the engine front cover. Refer to Engine Front Cover Replacement .
