Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. While holding down the positive crankcase ventilation (PCV) valve cover, remove the cover bolts.
  2. Remove the PCV valve cover.
  3. Remove the PCV valve, spring, and O-ring.

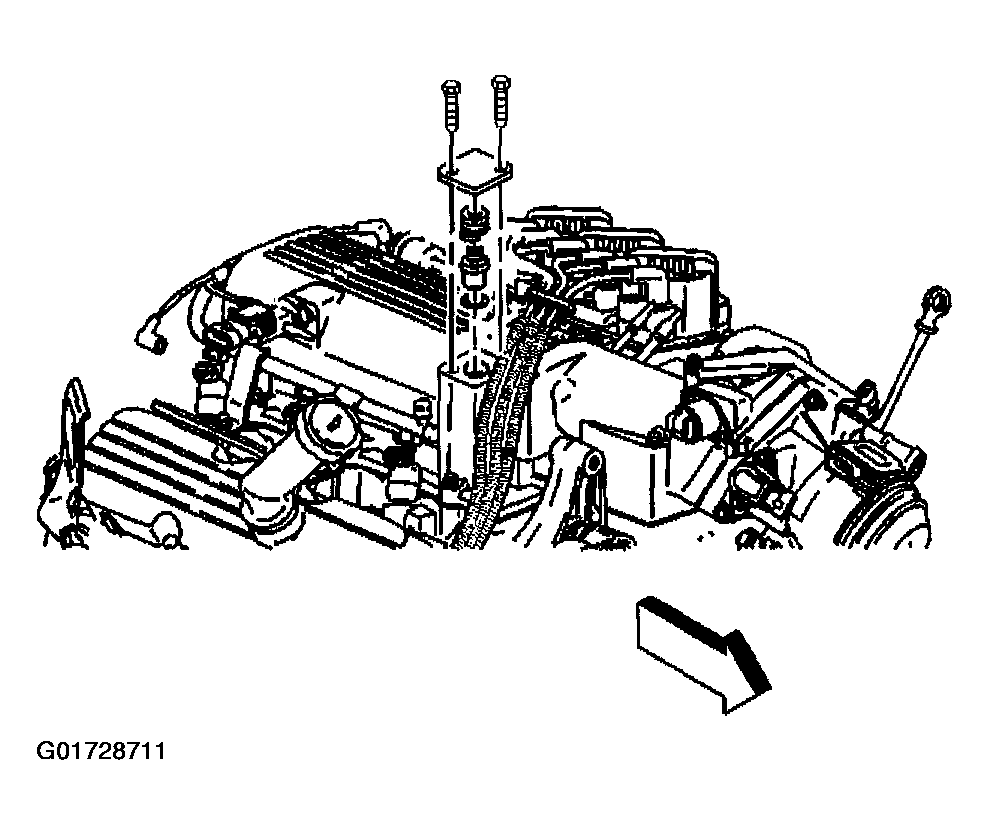

    Fig 1: Removing Cover Bolts
    G01728711Courtesy of GENERAL MOTORS CORP.
