Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the PCV valve O-ring, spring, and a NEW valve.
  2. Install the PCV valve cover (using a NEW gasket, if necessary) and install the cover bolts.

    Tighten

    Tighten the PCV valve cover bolts to 12 N.m (106 lb in).

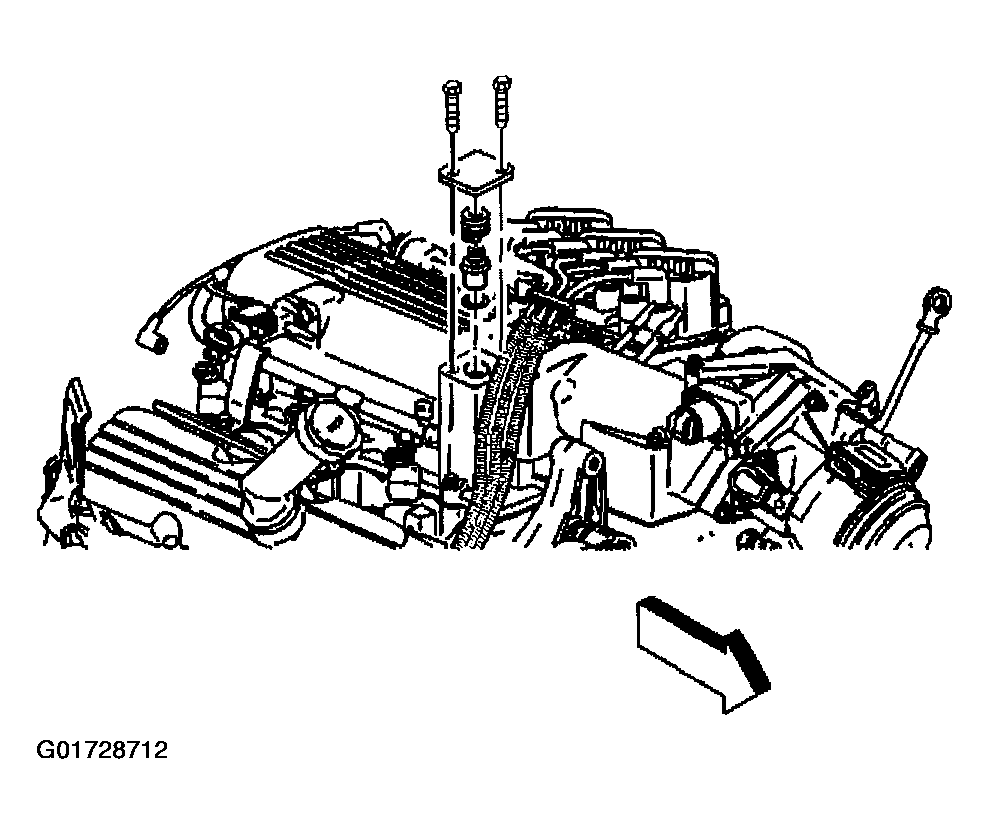

    Fig 1: Installing PCV valve cover bolts
    G01728712Courtesy of GENERAL MOTORS CORP.
