Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to Oil Pan Replacement .
  2. Remove the oil pump screen attaching bolts (2).

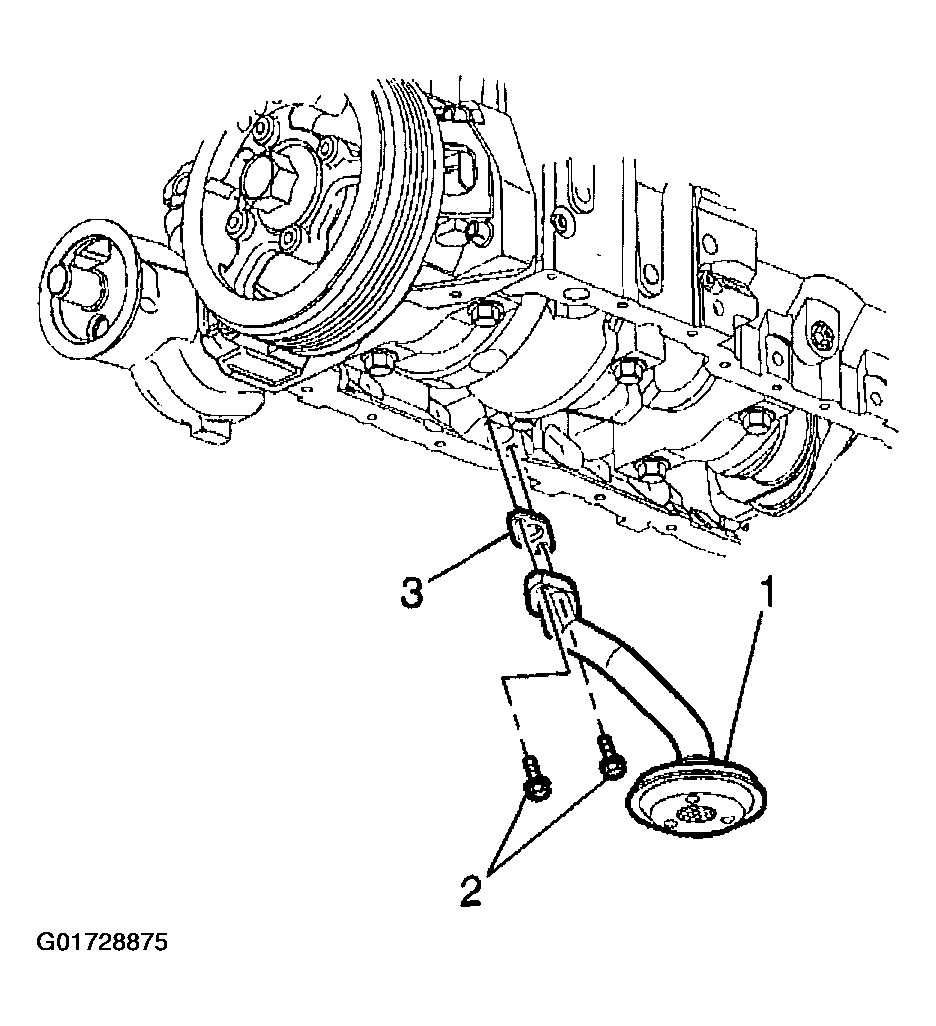

    Fig 1: Removing Oil Pump Screen Attaching Bolts
    G01728875Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pump screen (1).
  4. Remove the oil pump screen gasket (3).
  5. Clean the screen and housing with solvent and blow dry with compressed air.
  6. Clean the gasket mating surfaces on the pipe flange and cylinder block.
