Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to Engine Front Cover Replacement .
  2. Remove the oil pump cover attaching screws.

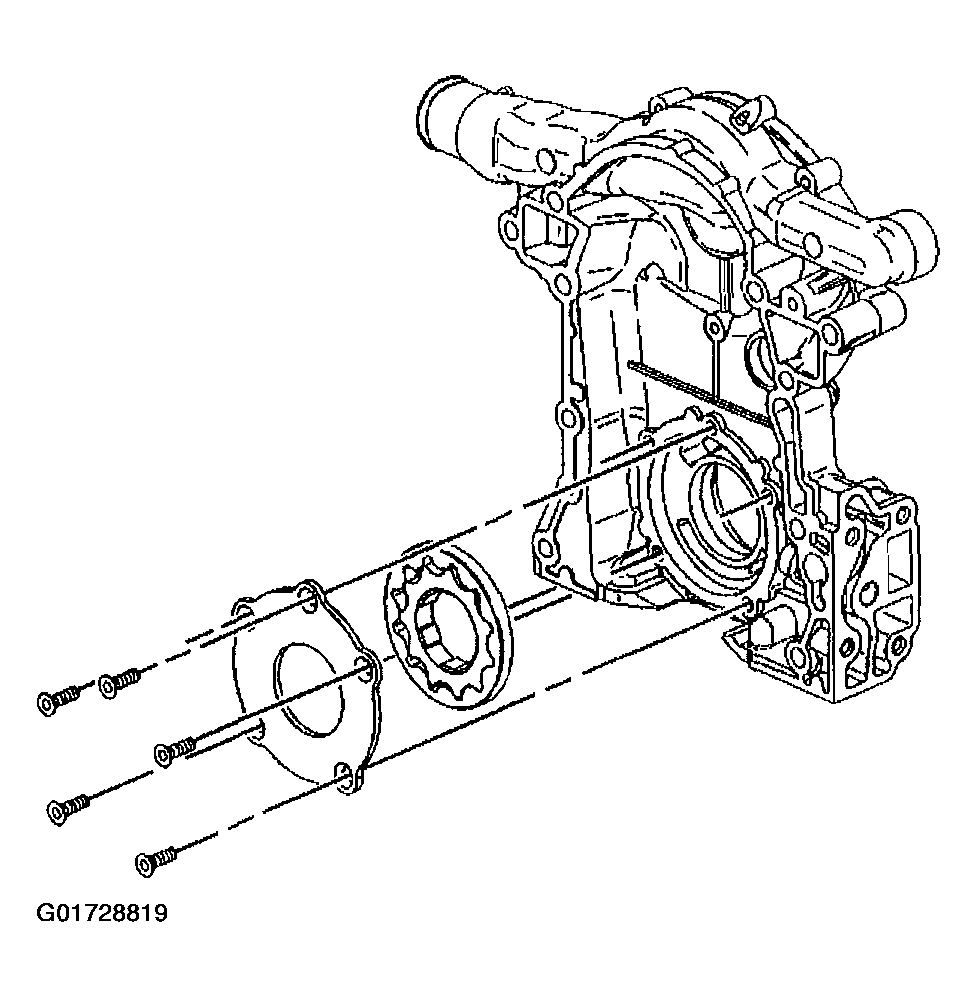

    Fig 1: Removing Oil Pump Cover Attaching Screws
    G01728819Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pump cover.
  4. Remove the oil pump gear set.
  5. Inspect the oil pump gear set and housing. Refer to OIL PUMP CLEANING AND INSPECTION .
