Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the oil pump gear set with petroleum jelly.
  2. Install the oil pump gear set.
  3. Pack the oil pump cavity with petroleum jelly.
  4. Install the oil pump cover.
  5. Install the oil pump cover screws.

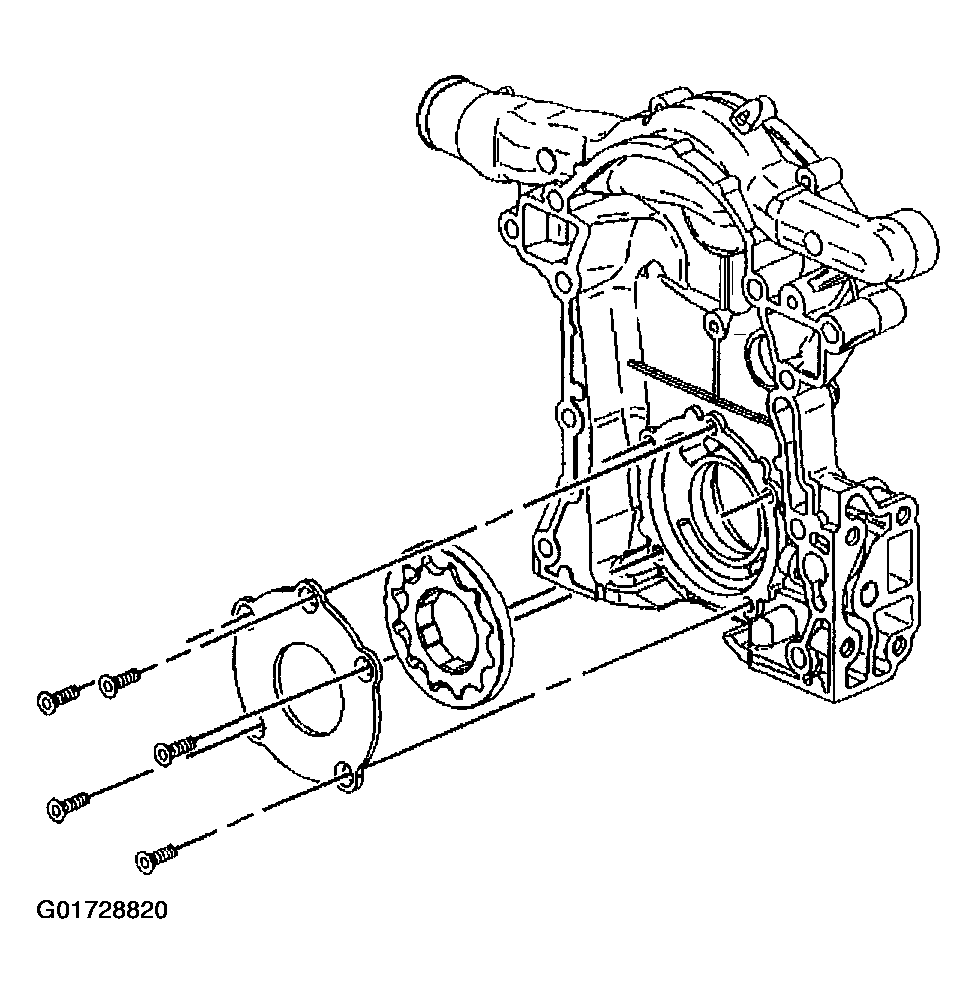

    Fig 1: Installing Oil Pump Cover Screws
    G01728820Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the oil pump cover screws to 11 N.m (98 lb in).

  6. Install the engine front cover. Refer to Engine Front Cover Replacement .
