Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator from the indicator tube.
  2. Remove the oil level indicator tube nut.
  3. Remove the oil level indicator tube from the engine block.

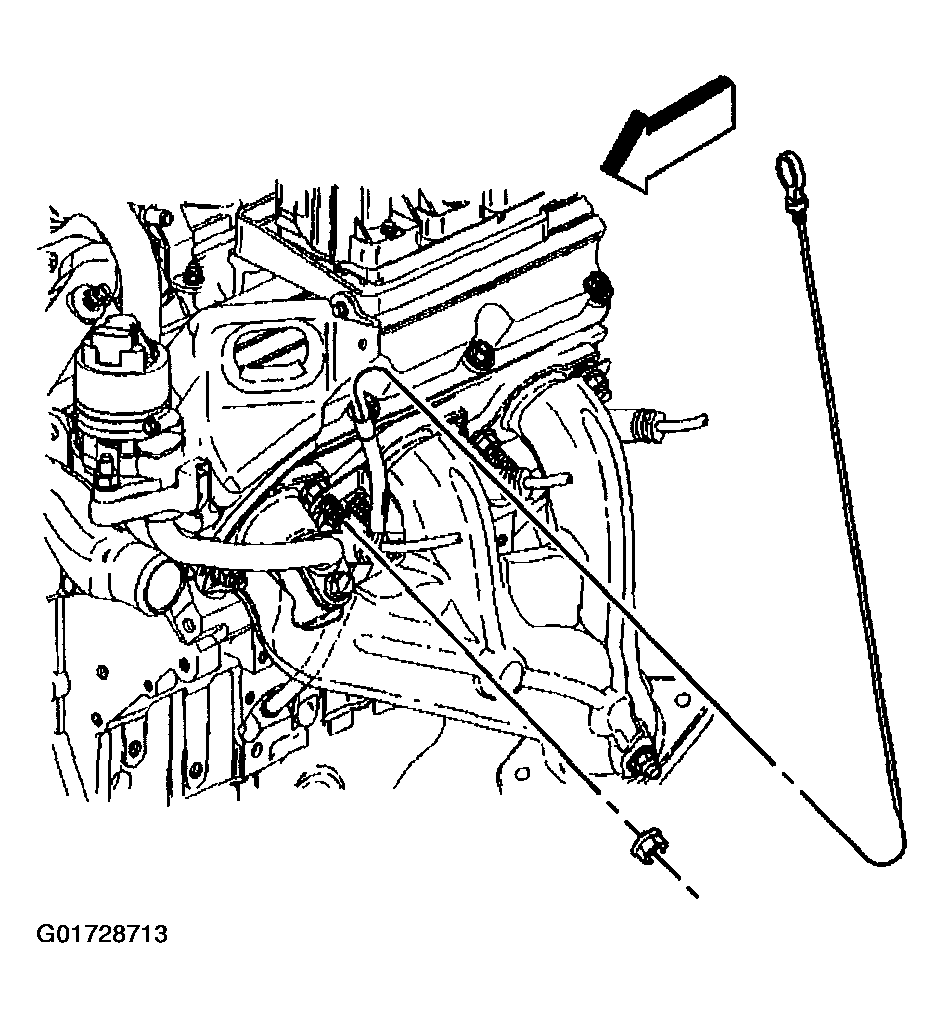

    Fig 1: Remove Oil Level Indicator Tube
    G01728713Courtesy of GENERAL MOTORS CORP.
