Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper intake manifold. Refer to Intake Manifold Replacement - Upper .
  2. Remove the O-ring seals (3, 4), if necessary.

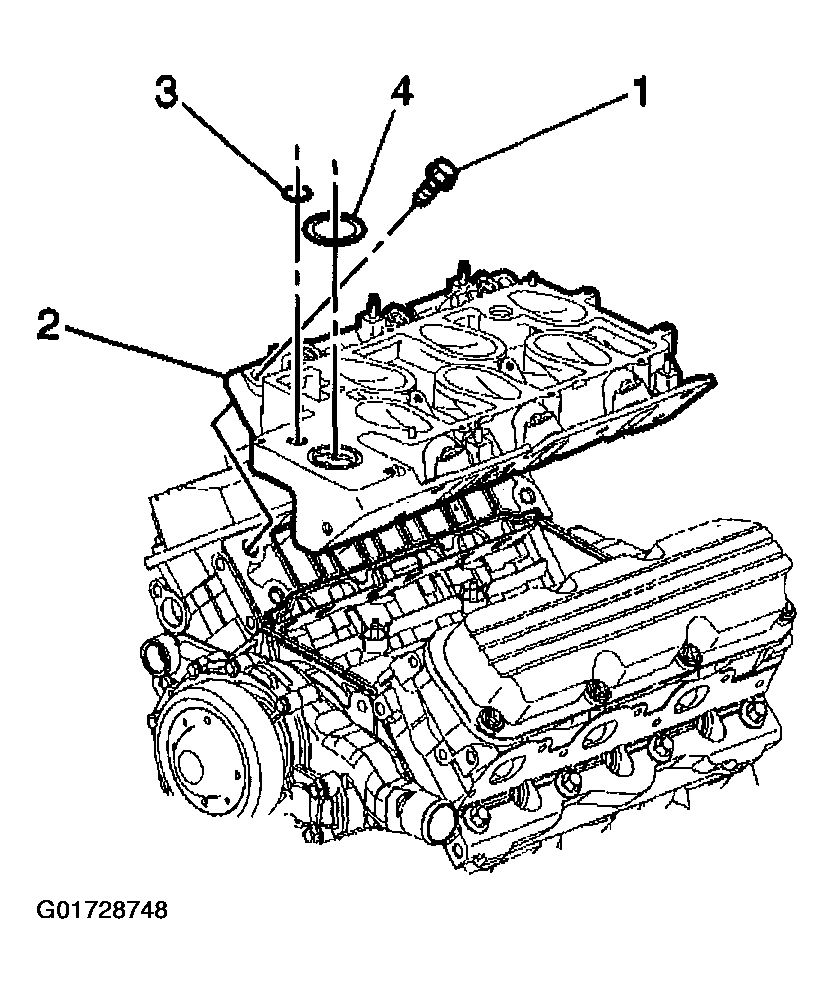

    Fig 1: Removing O-Ring Seals
    G01728748Courtesy of GENERAL MOTORS CORP.
  3. Remove the lower intake manifold bolts (1).
  4. Remove the lower intake manifold (2).
  5. Remove the lower intake manifold seals (1).

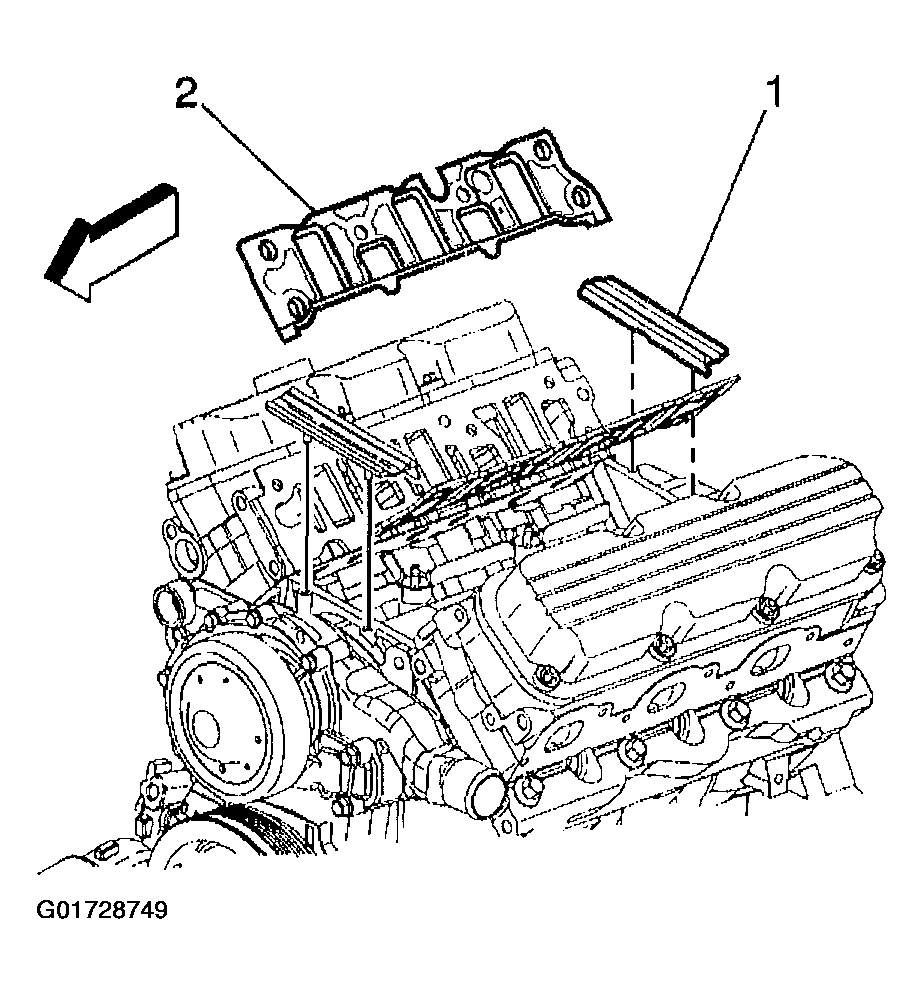

    Fig 2: Removing Lower Intake Manifold Seals
    G01728749Courtesy of GENERAL MOTORS CORP.
  6. Remove the lower intake manifold gaskets (2).
  7. If replacing the manifold remove the coolant temperature sensor.

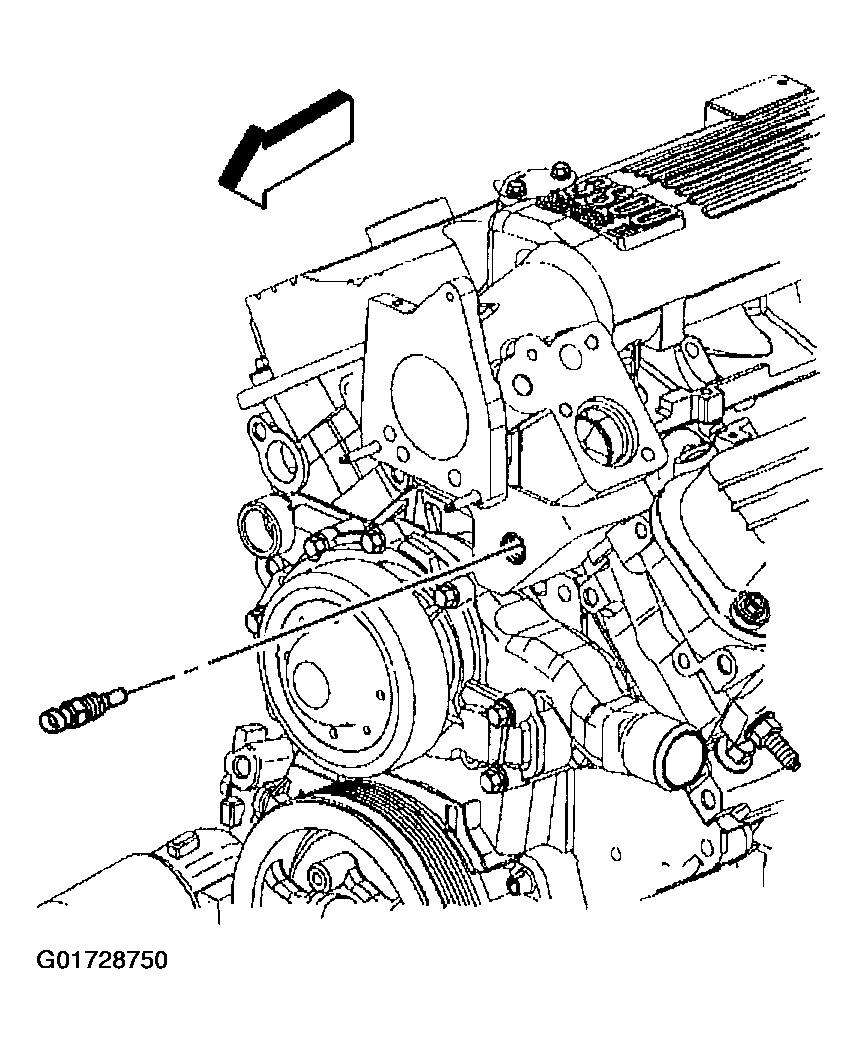

    Fig 3: Remove Coolant Temperature Sensor
    G01728750Courtesy of GENERAL MOTORS CORP.
