Tools Required

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove 2 strut mounting nuts from the left and right side strut towers.
  2. Attach the engine support fixture adapters J 28467-90A to the strut tower studs.
  3. Install the engine support fixture adapters J 41044-1 and J 41044-2 onto the fixture adapters J 28467-90A on each strut tower.
  4. Secure with the wings nuts provided.

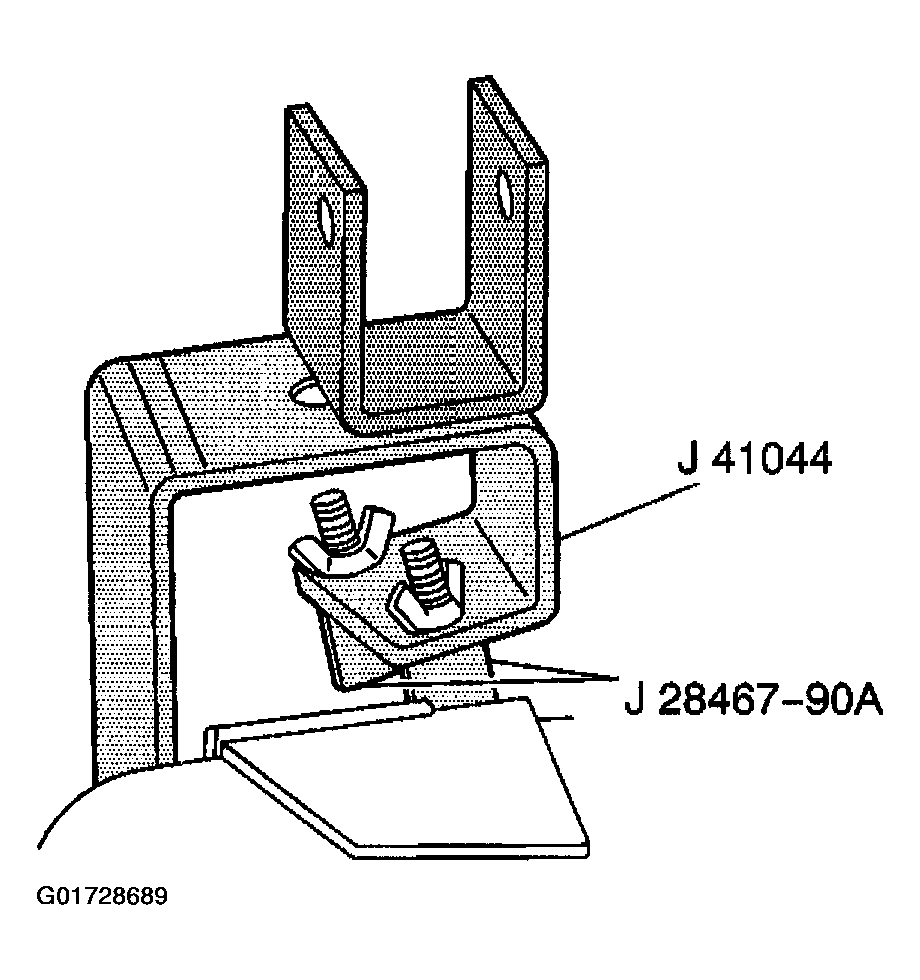

    Fig 1: Installing Engine Support Fixture Adapters
    G01728689Courtesy of GENERAL MOTORS CORP.
  5. Place the cross bar J 28467-3 into the engine support adapters J 41044-1 and J 41044-2.
  6. Install the quick release pins.
  7. Thread the lift hooks J 28467-50 and J 28467-8 or J 28467-8A into the support hook brackets J 28467-6A.
  8. Place the support hook brackets J 28467-6A over the cross bar J 28467-3 and connect the hooks to the engine lift brackets.
  9. Tighten the large wing nuts J 28467-34.

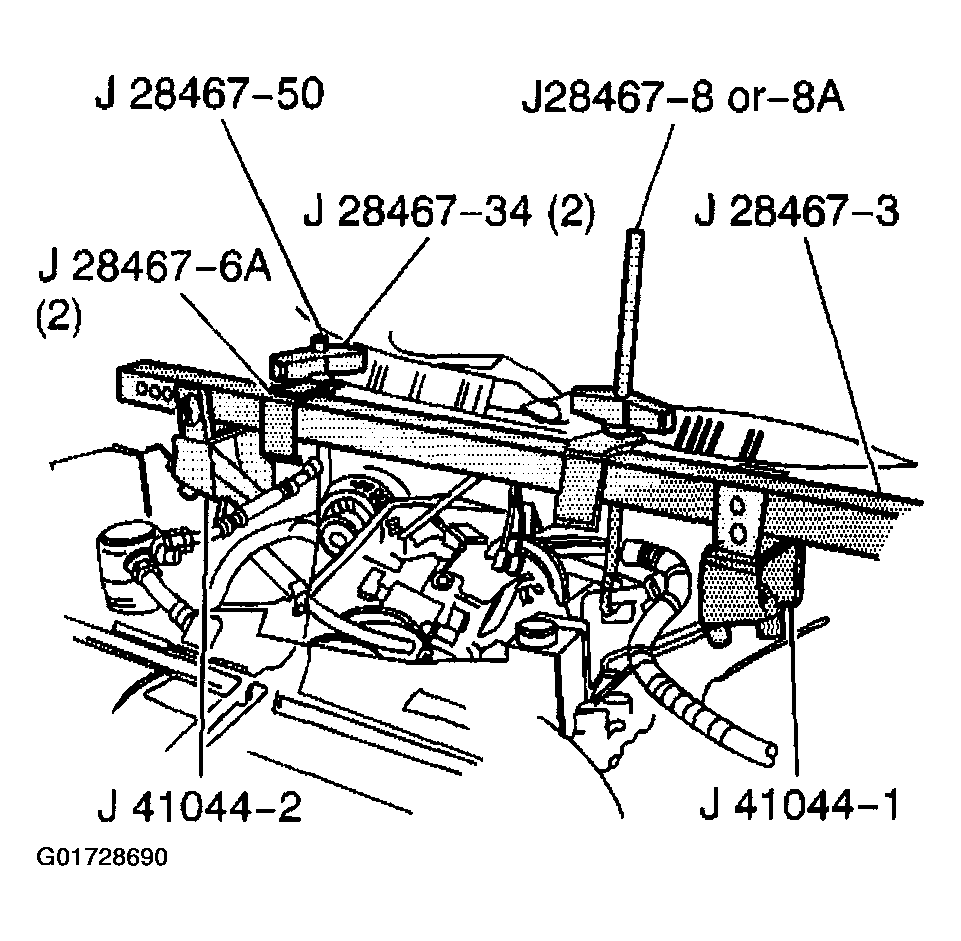

    Fig 2: Installing Engine Support Fixture
    G01728690Courtesy of GENERAL MOTORS CORP.
