Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect oil pressure sensor electrical connector (2).

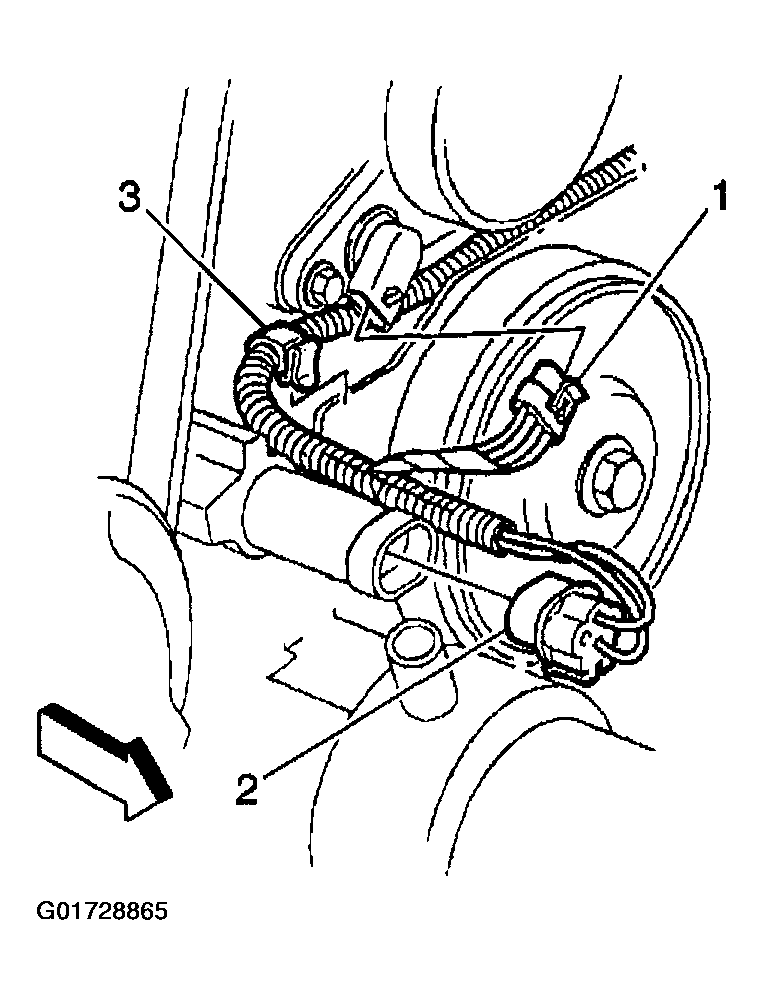

    Fig 1: Disconnecting Oil Pressure Sensor Electrical Connector
    G01728865Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pressure sensor.

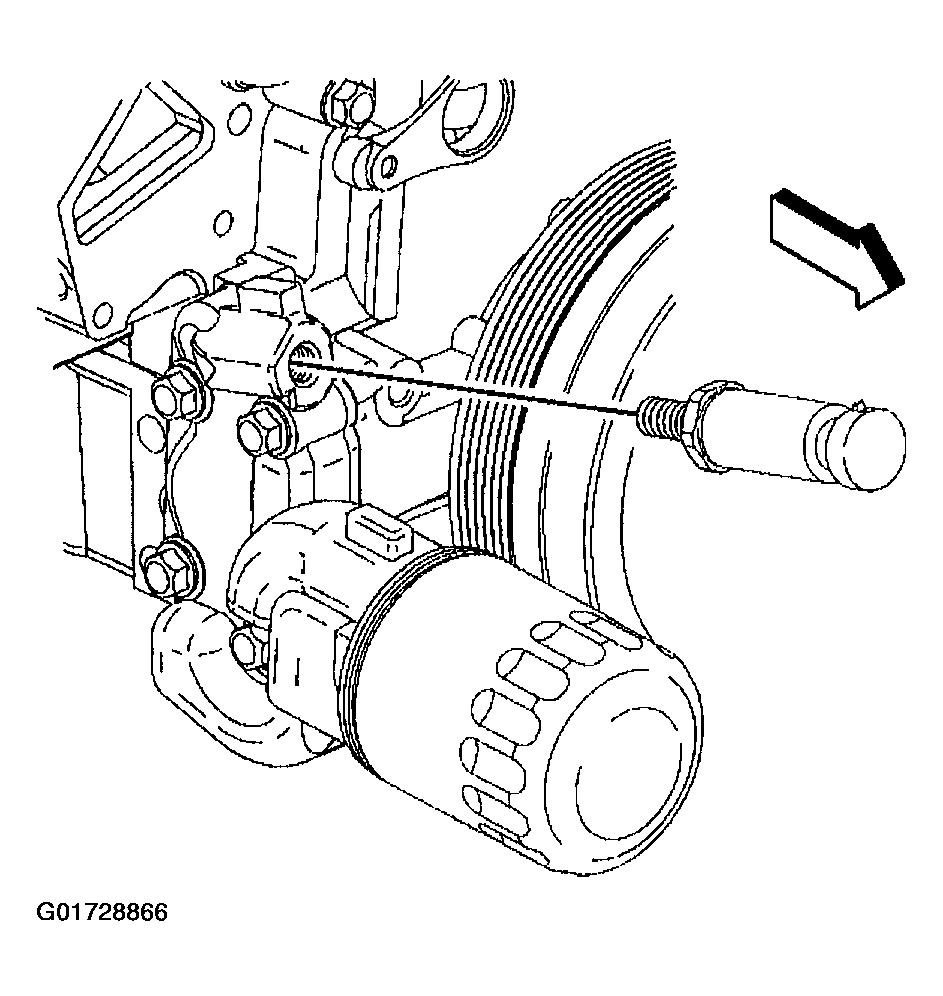

    Fig 2: Removing Oil Pressure Sensor
    G01728866Courtesy of GENERAL MOTORS CORP.
