Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

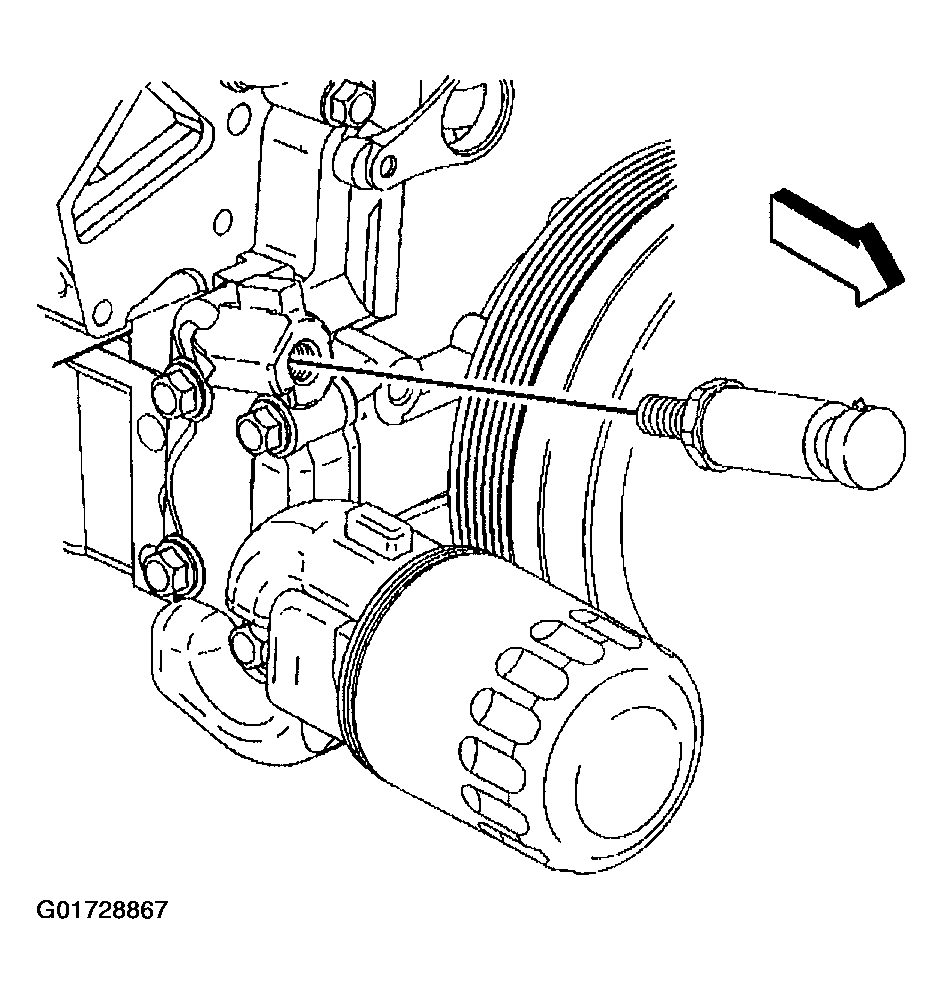

  1. Install the oil pressure sensor.
    Fig 1: Installing Oil Pressure Sensor
    G01728867Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the oil pressure sensor to 16 N.m (12 lb ft).

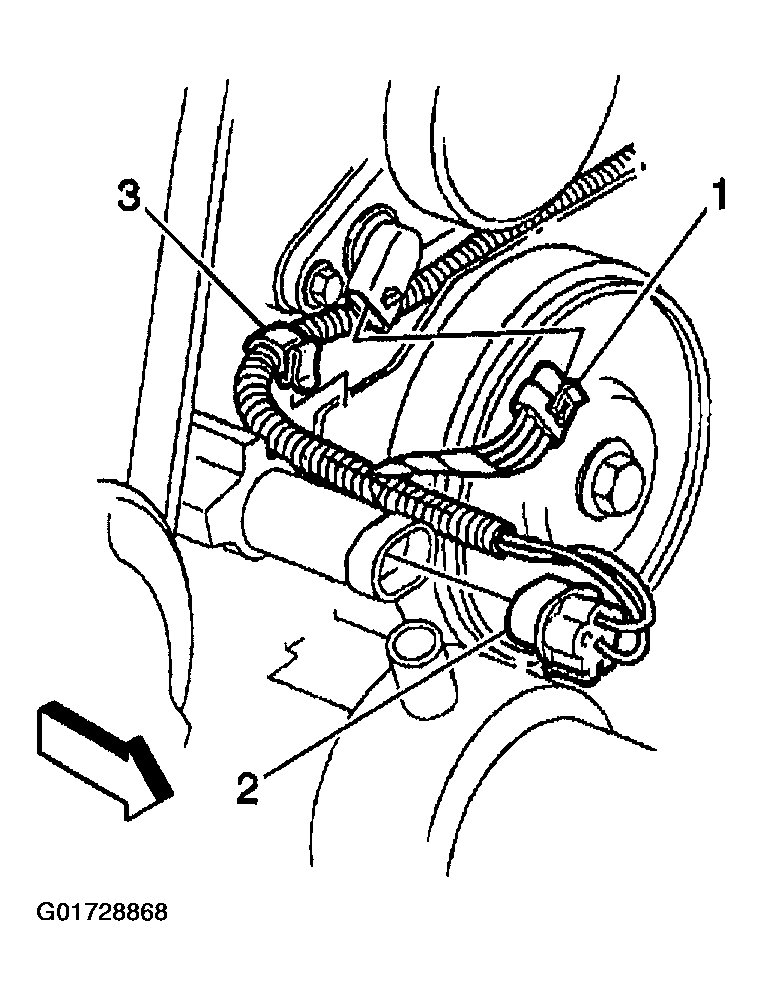

  2. Connect oil pressure sensor electrical connector (2).
    Fig 2: Connecting Oil Pressure Sensor Electrical Connector
    G01728868Courtesy of GENERAL MOTORS CORP.
