Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. LIFTING AND JACKING THE VEHICLE
  2. Remove the engine oil drain plug in order to drain the engine oil.

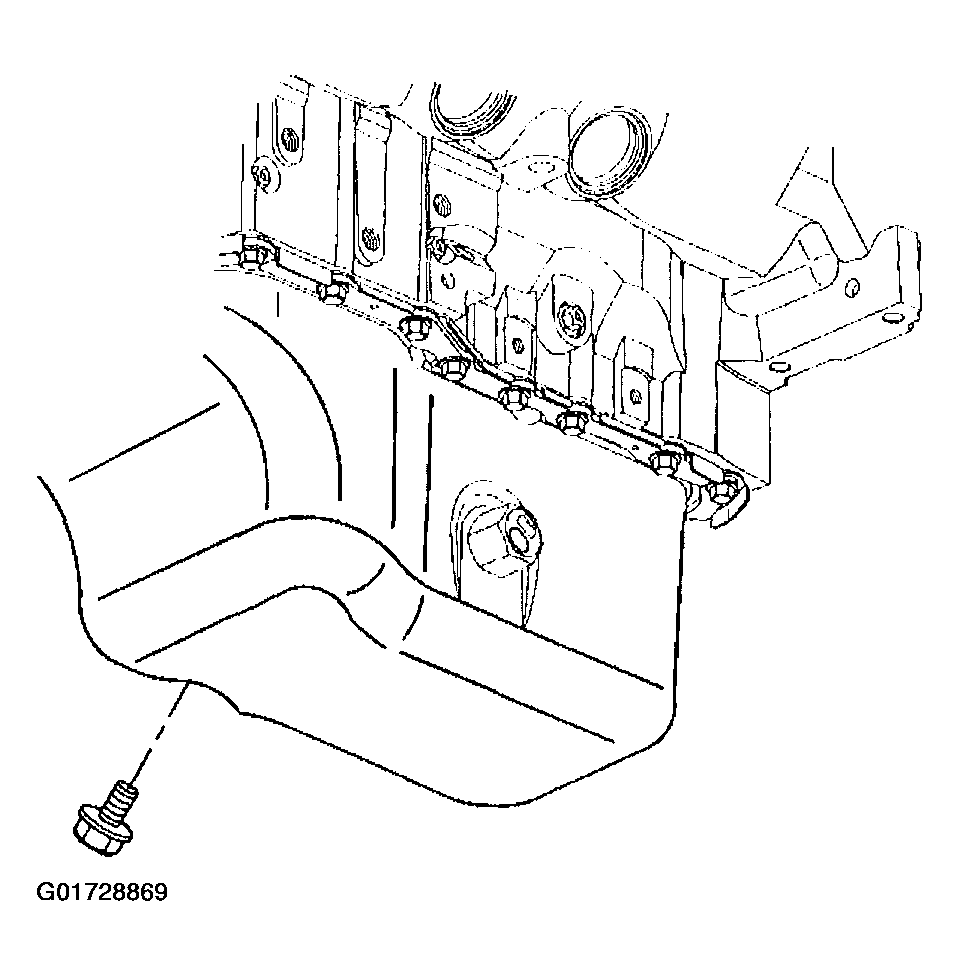

    Fig 1: Removing Engine Oil Drain Plug
    G01728869Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the oil level sensor electrical connector (1).

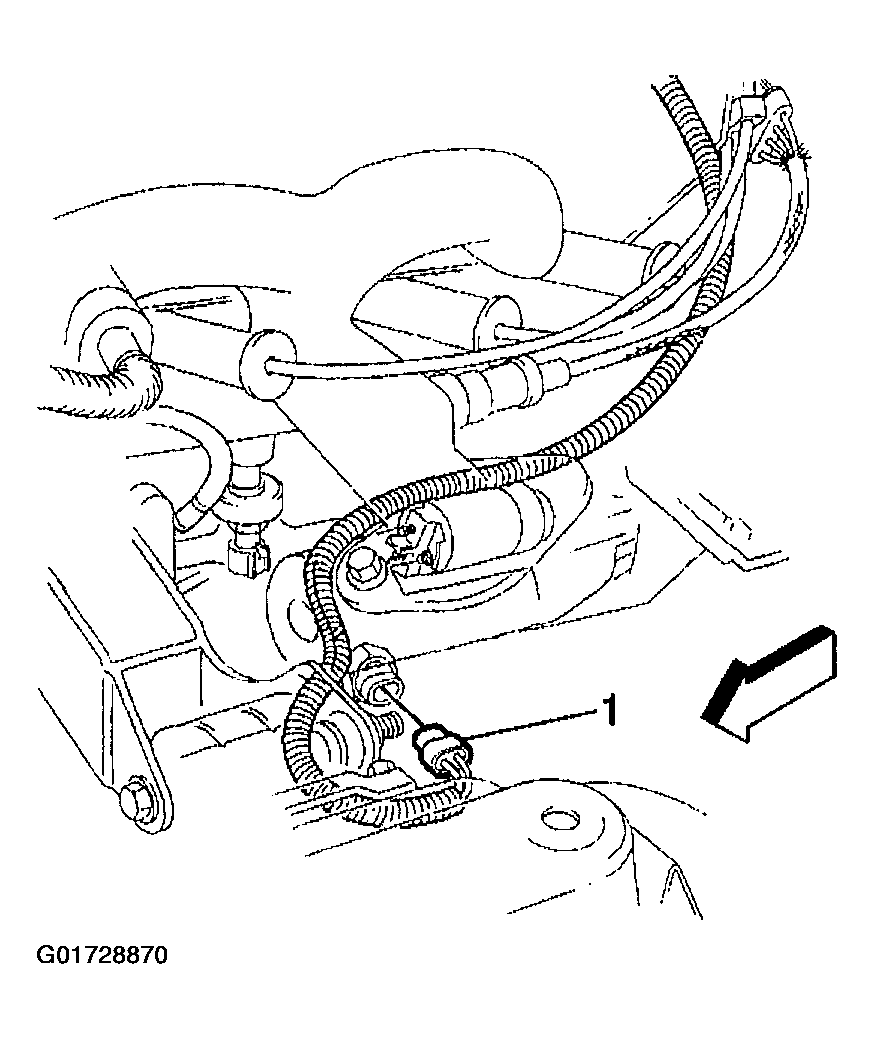

    Fig 2: Disconnecting Oil Level Sensor Electrical Connector
    G01728870Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil level sensor from the oil pan.

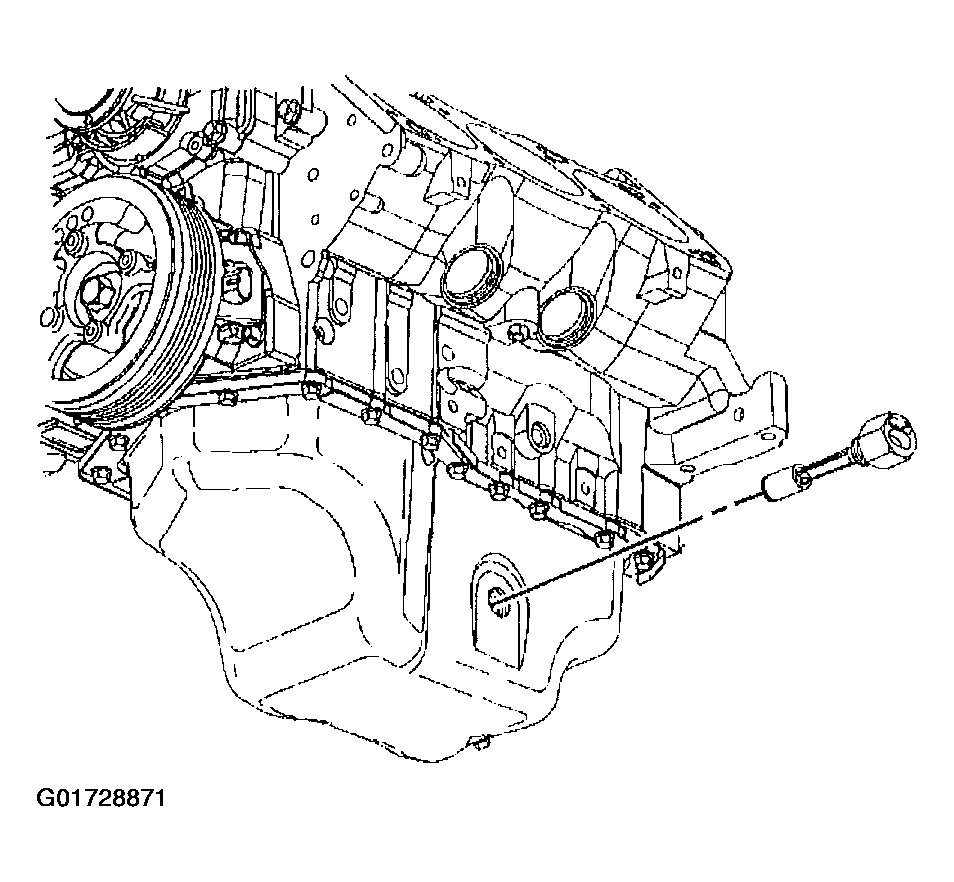

    Fig 3: Removing Oil Level Sensor
    G01728871Courtesy of GENERAL MOTORS CORP.
