Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil level sensor from the oil pan.

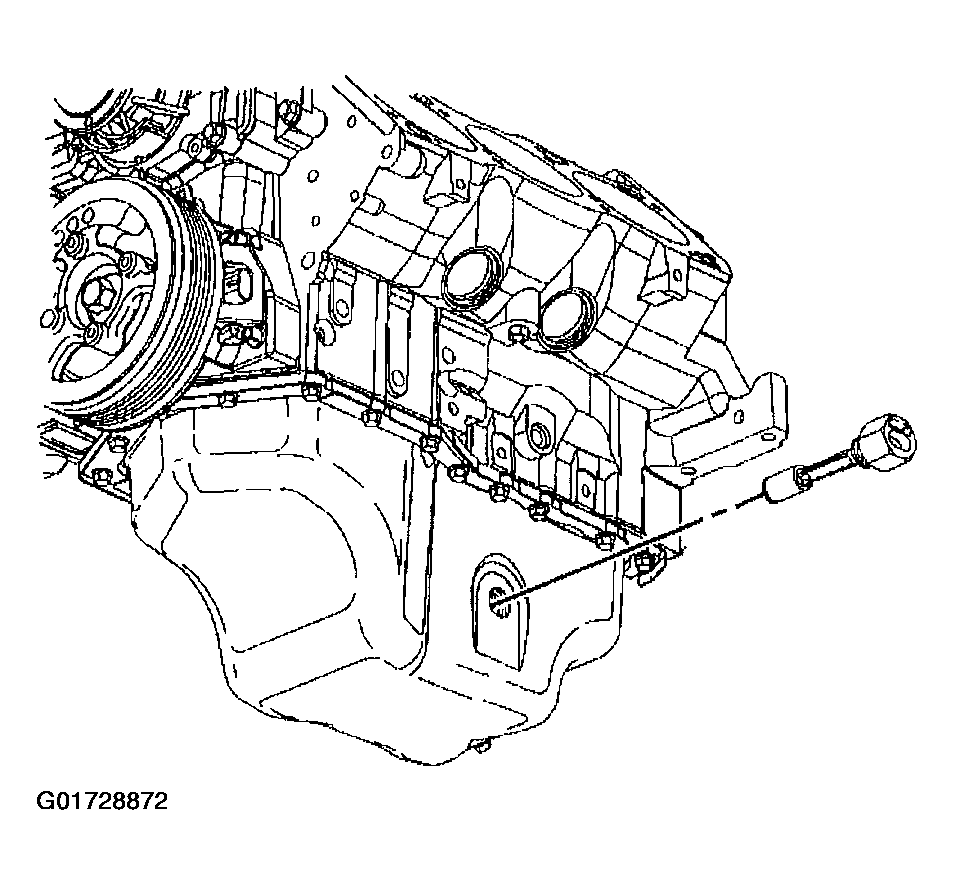

    Fig 1: Installing Oil Level Sensor From Oil Pan
    G01728872Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the oil level sensor to 20 N.m (15 lb ft).

  2. Connect the oil level sensor electrical connector (1).

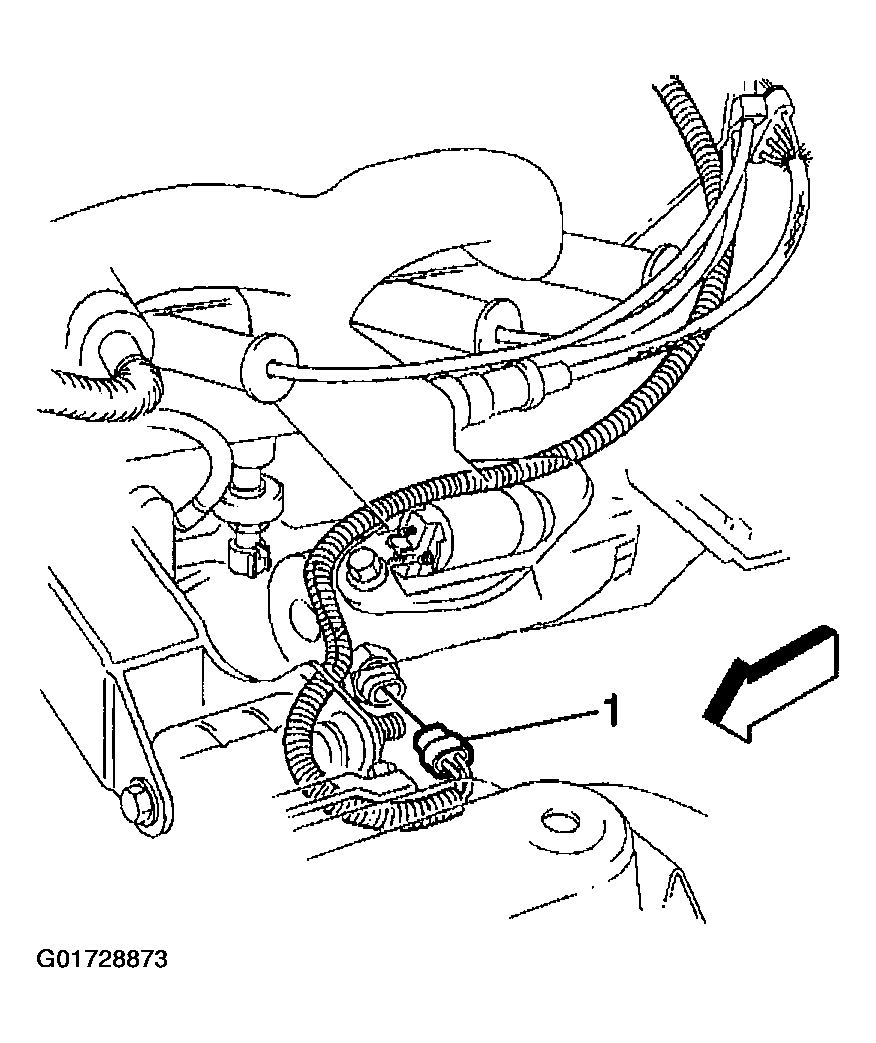

    Fig 2: Connecting Oil Level Sensor Electrical Connector
    G01728873Courtesy of GENERAL MOTORS CORP.
  3. Install the engine oil drain plug.

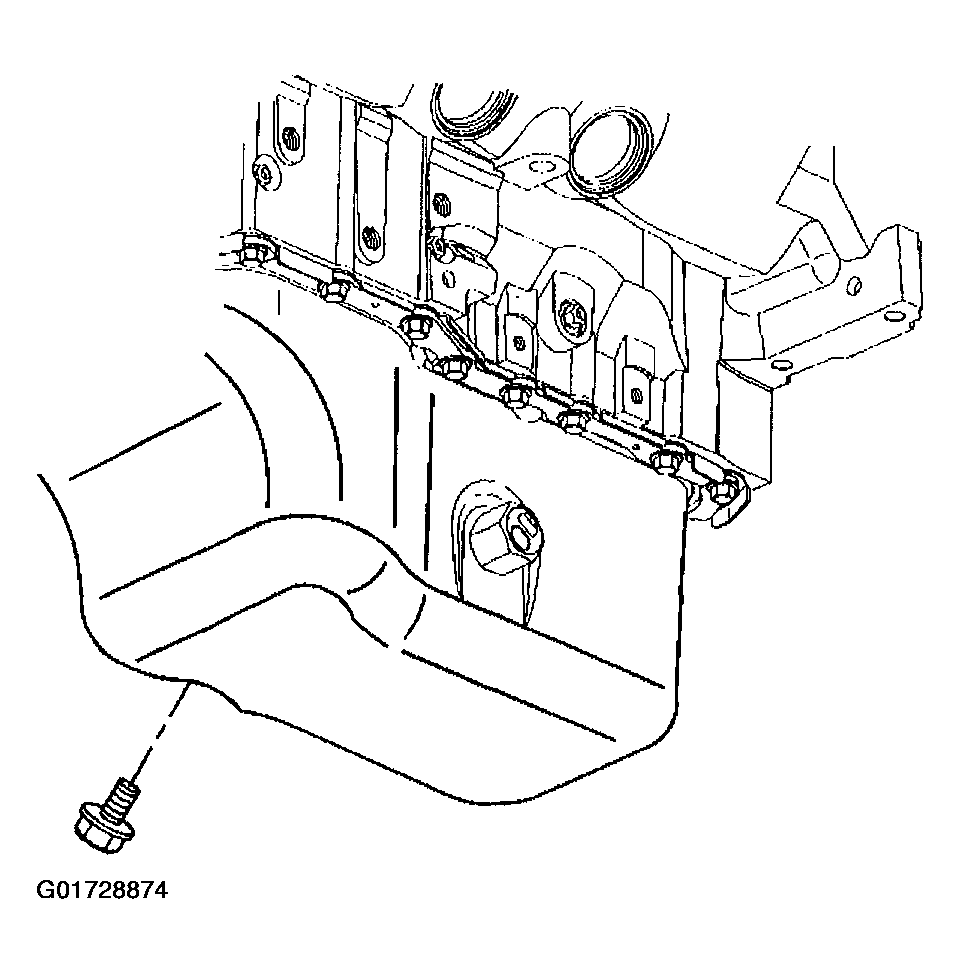

    Fig 3: Installing Engine Oil Drain Plug
    G01728874Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the engine oil drain plug to 30 N.m (22 lb ft).

  4. Refill the engine with oil.
  5. Lower the vehicle.
