Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount(s) Refer to Engine Mount Replacement .
  2. Remove the right engine mount bracket bolts (1,2) and the right engine mount bracket (3).

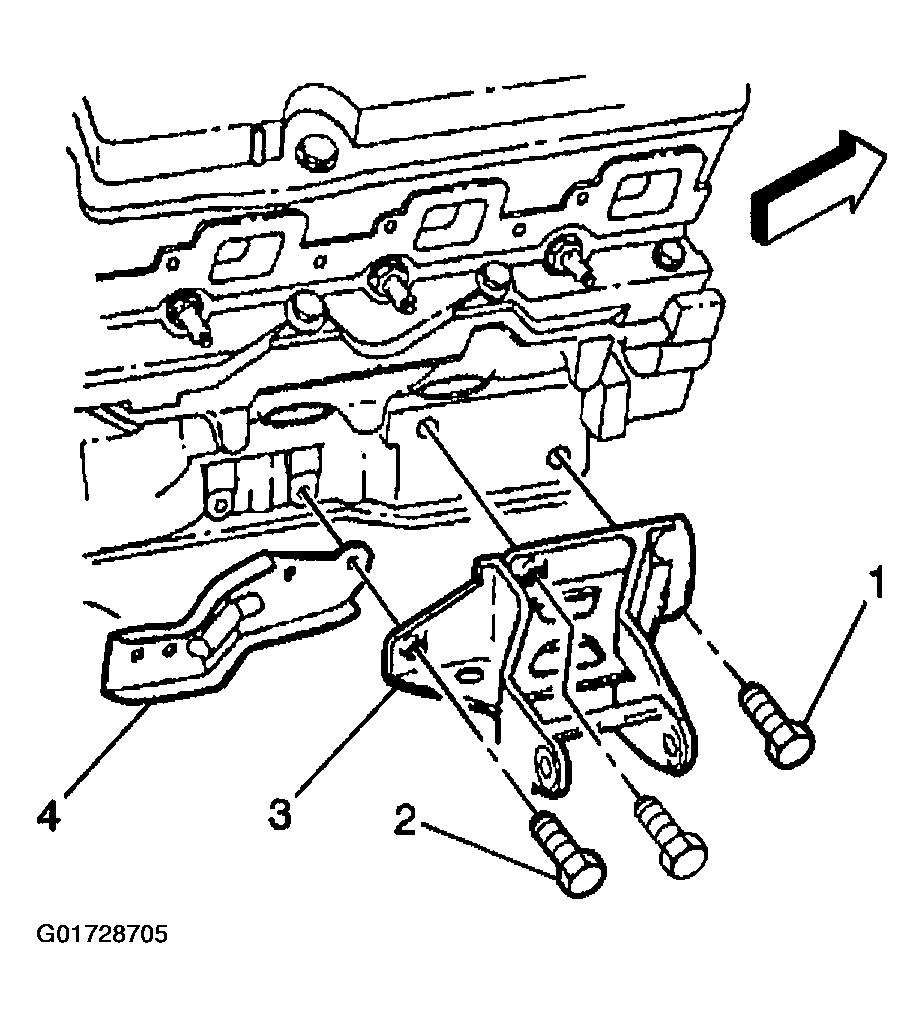

    Fig 1: Removing Right Engine Mount Bracket Bolts Right Engine Mount Bracket
    G01728705Courtesy of GENERAL MOTORS CORP.
  3. Remove the positive cable harness from the engine mount stud.
    • Remove the battery positive cable harness nut (2).
    • Remove the harness clamp from the stud.
    • Remove the RF (Radio Frequency) ground strap.

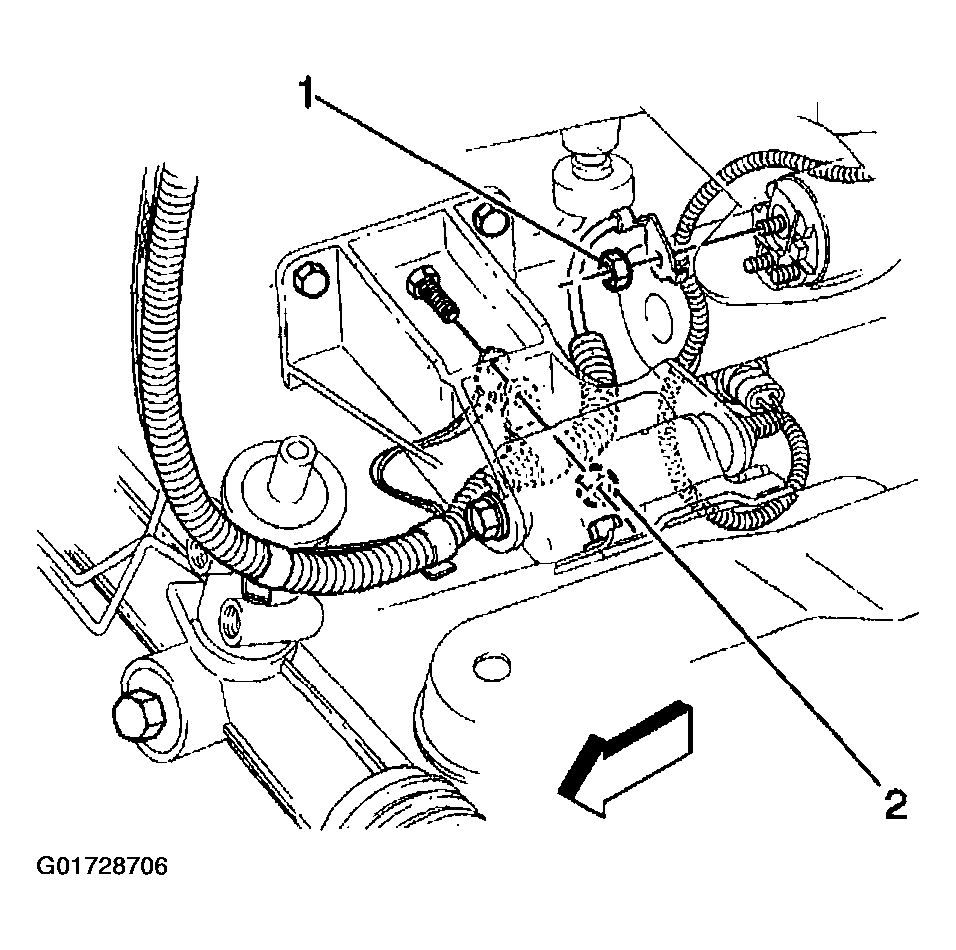

    Fig 2: Remove Battery Positive Cable Harness Nut
    G01728706Courtesy of GENERAL MOTORS CORP.
  4. Remove the left engine mount bracket bolts (3).
  5. Remove the left engine mount bracket stud (2) and the engine mount bracket (1).

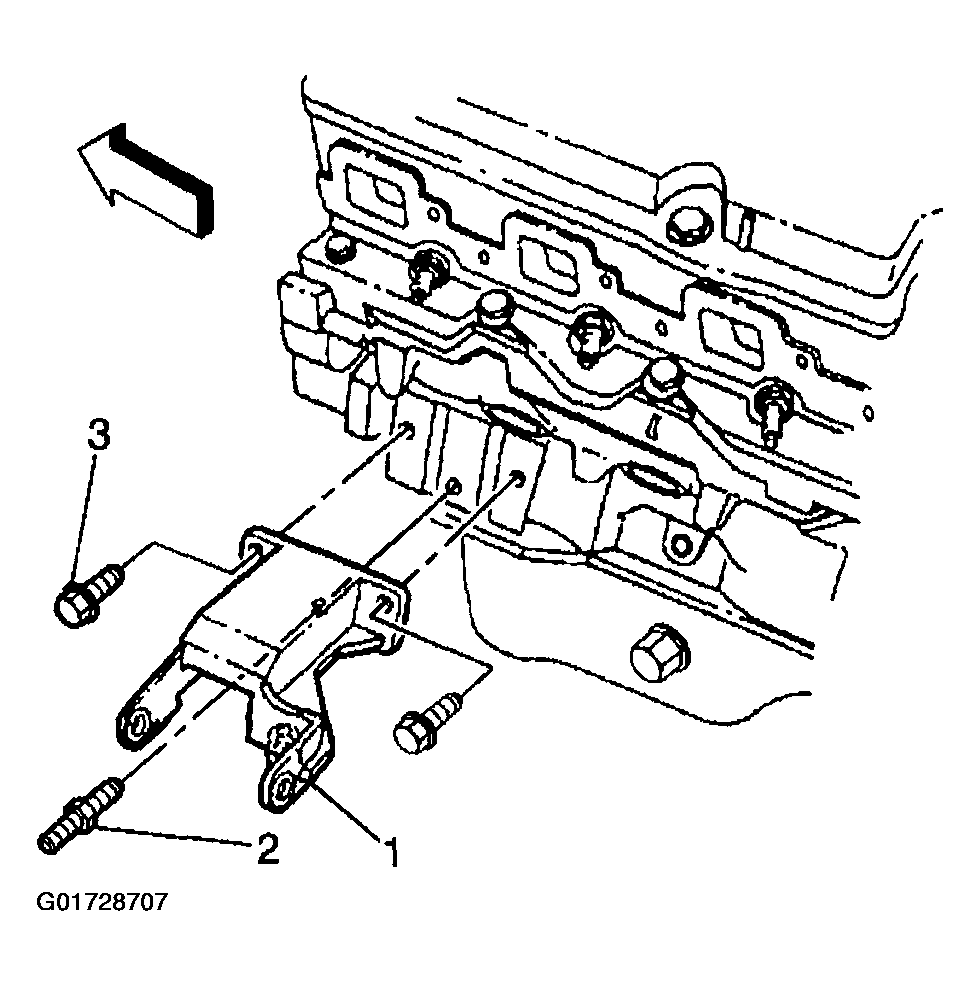

    Fig 3: Removing Left Engine Mount Bracket
    G01728707Courtesy of GENERAL MOTORS CORP.
