Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

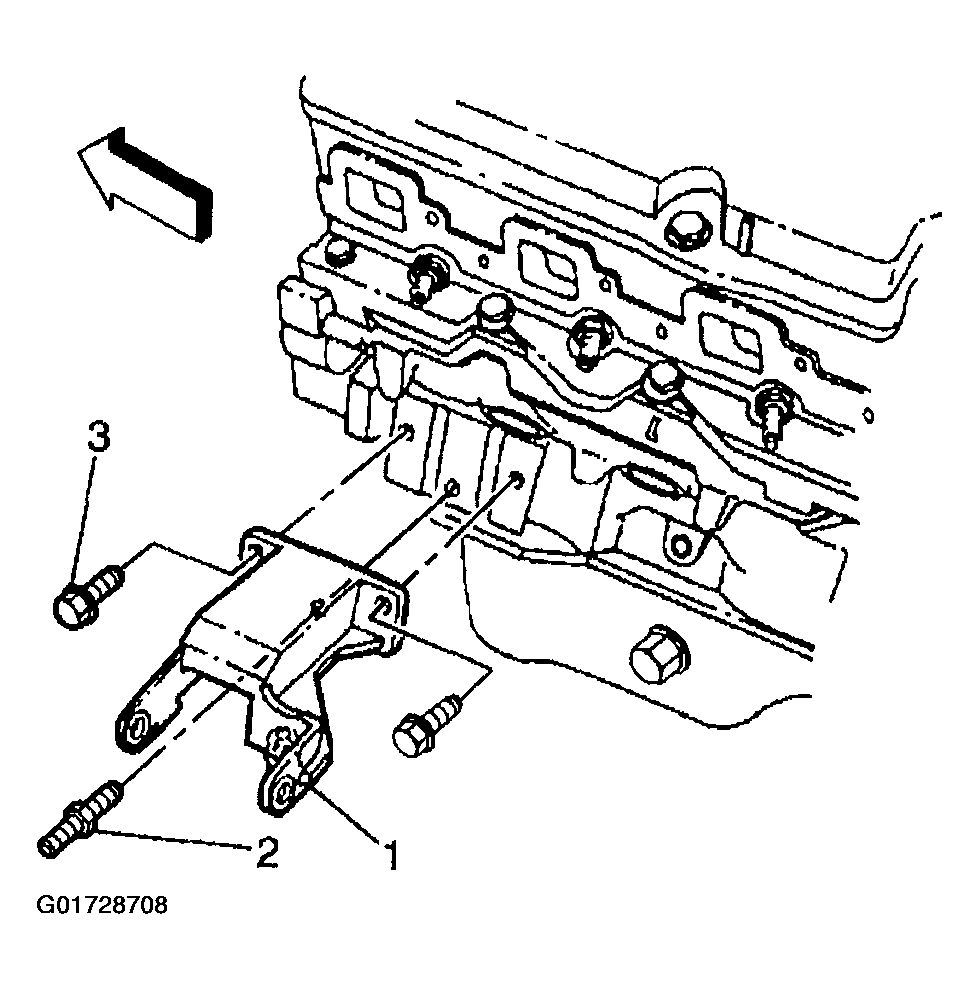

  1. Install the left engine mount bracket (1) and stud (2) to the engine block.
    Fig 1: Install Left Engine Mount Bracket And Stud
    G01728708Courtesy of GENERAL MOTORS CORP.
  2. Install the left engine mount bracket bolts (3).

    Tighten

    • Tighten the engine mount bracket bolts (3) to 102 N.m (75 lb ft).
    • Tighten the engine mount bracket stud (2) to 87 N.m (64 lb ft).

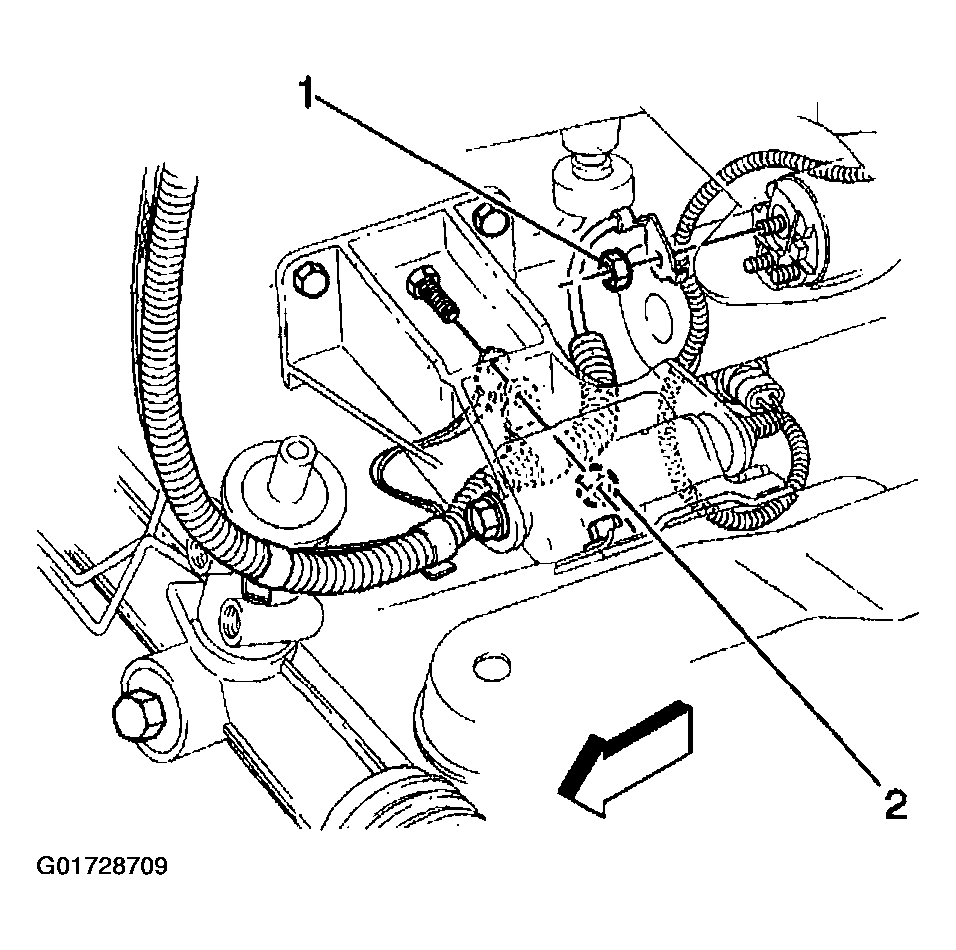

  3. Install the positive cable harness to the engine mount bracket stud.
    • Install the RF (Radio Frequency) ground strap.
    • Install the harness clamp to the stud.
    • Install the battery positive cable harness nut (2).
      Fig 2: Install Battery Positive Cable Harness Nut
      G01728709Courtesy of GENERAL MOTORS CORP.

      Tighten

      Tighten the battery positive cable nut (2) to 25 N.m (18 lb ft).

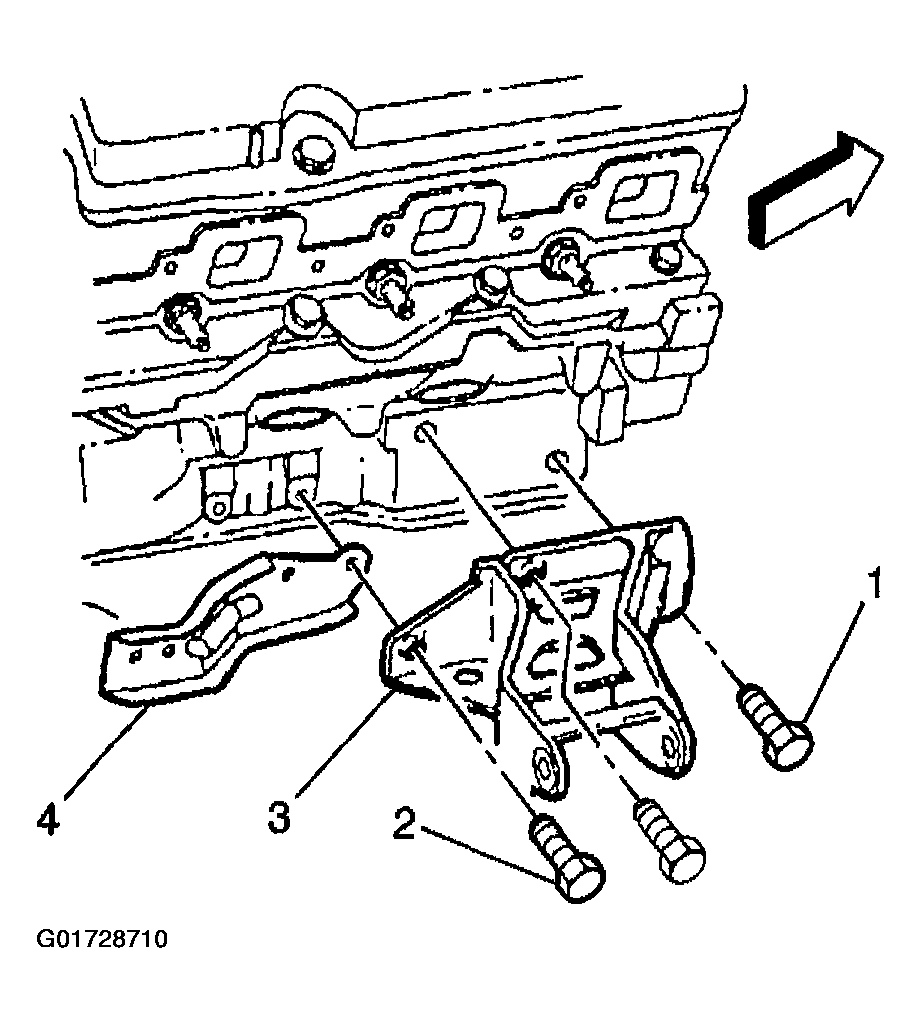

  4. Install the right engine mount bracket (3) and bolts (1,2) to the engine block.

    Tighten

    • Tighten the 2 engine mount bracket bolts (1) to 102 N.m (75 lb ft).
    • Tighten the engine mount bracket bolt (2) to 50 N.m (37 lb ft).
  5. Install the engine mount(s). Refer to Engine Mount Replacement .
    Fig 3: Installing Engine Mount(s)
    G01728710Courtesy of GENERAL MOTORS CORP.
