Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

If equipped with the automatic transmission, install the following components:
1. 1.1. Install the flywheel (2).
2. 1.2. Install the flywheel bolts (1) finger tight.

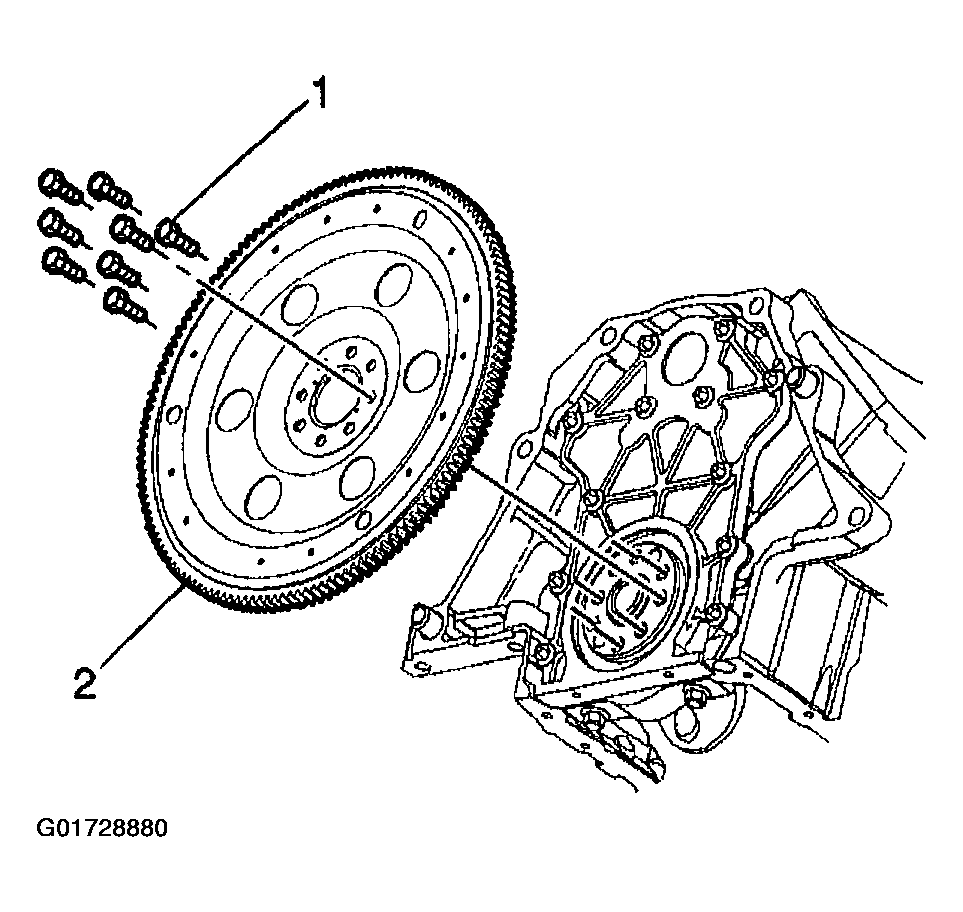

Fig 1: Installing Flywheel Bolts
Courtesy of GENERAL MOTORS CORP.
If equipped with the manual transmission, install the following components:
1. 2.1. Install the flywheel (2).
2. 2.2. Install the flywheel bolts (1) finger tight.
Using J 37096, hold the flywheel when tightening the flywheel bolts.
Tighten the flywheel bolts.
Tighten

Tighten the flywheel bolts to 15 N.m (11 lb ft). Using the J 36660-A to torque the flywheel bolts an additional 50 degrees.

Fig 2: Using the J 36660-A
Courtesy of GENERAL MOTORS CORP.
Install the automatic transmission, if equipped. Refer to REMOVAL & INSTALLATION - A/T .
Install the clutch, if equipped with a manual transmission. Refer to CLUTCH ASSEMBLY .
