Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position a hex-head socket on the belt tensioner pulley bolt.
  2. Rotate the drive belt tensioner (2) clockwise to relieve the tension on the drive belt (1).

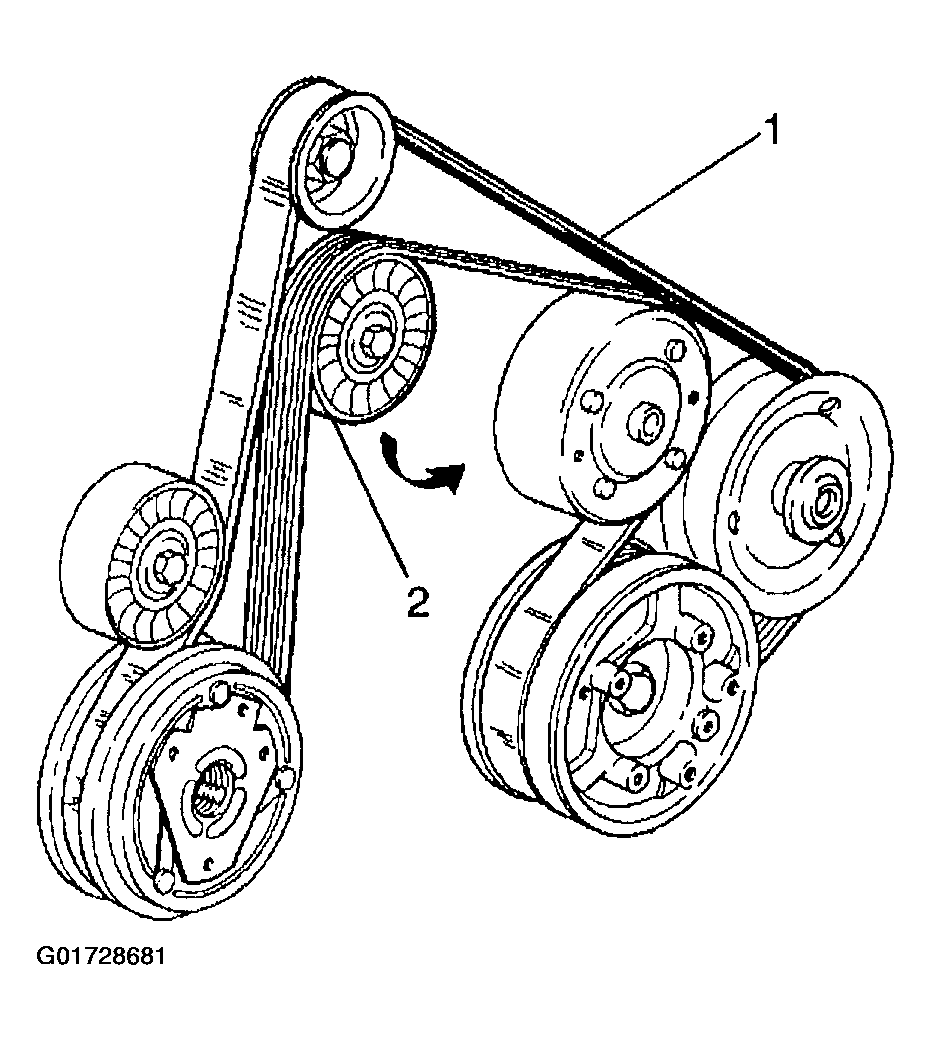

    Fig 1: Drive Belt Routing
    G01728681Courtesy of GENERAL MOTORS CORP.
  3. Remove the drive belt (1) from the tensioner (2) and pulleys.
  4. Clean and inspect the belt surfaces of all the pulleys.
