Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the drive belt (1) around the pulleys.
  2. Position a hex-head socket on the belt tensioner pulley bolt.
  3. Rotate the drive belt tensioner (2) clockwise to relieve the tension.
  4. Install the drive belt (1) onto the drive belt tensioner (2).
  5. Inspect the drive belt (1) to ensure that the belt is properly aligned into the grooves of the pulleys.

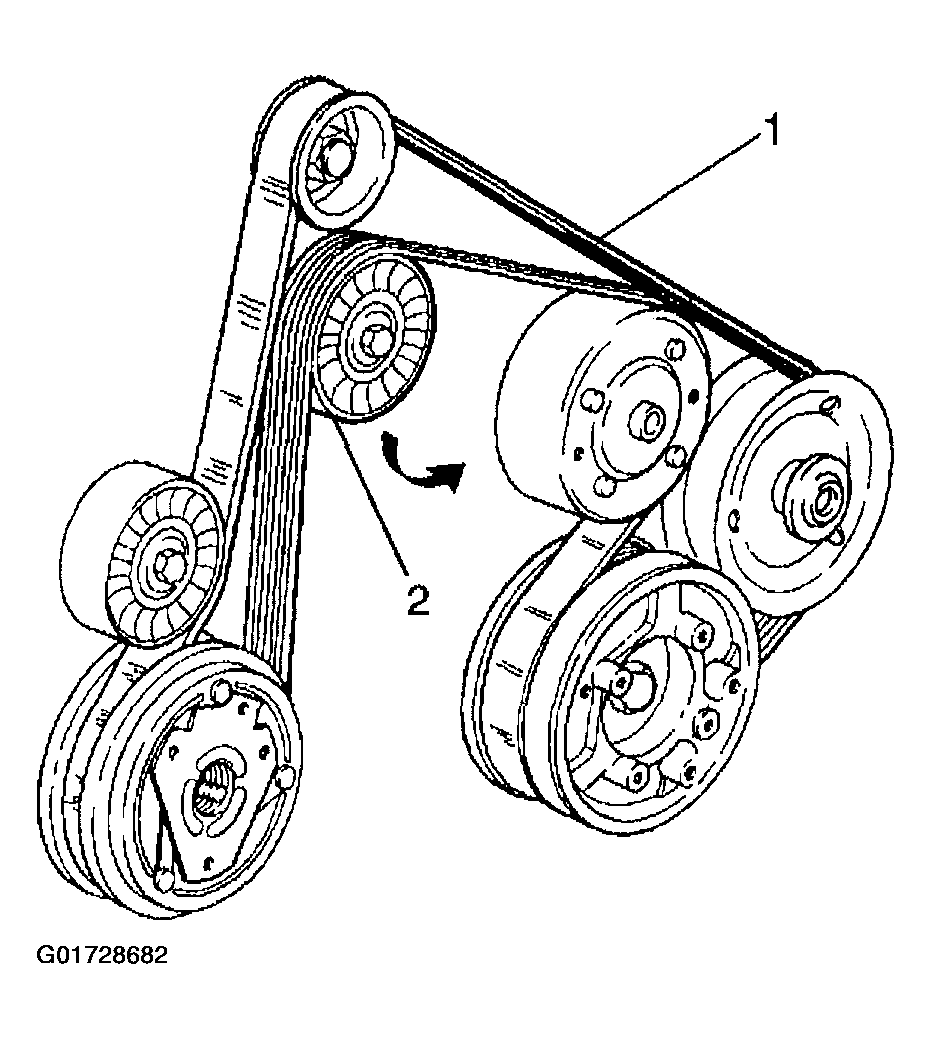

    Fig 1: Installing Drive Belt
    G01728682Courtesy of GENERAL MOTORS CORP.
