Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant. Refer to DRAINING AND FILLING COOLING SYSTEM .
  2. Remove the lower intake manifold. Refer to Intake Manifold Replacement - Lower .
  3. Remove the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT (3.8L) .
  4. Remove the valve rocker arms and the pushrods. Refer to Valve Rocker Arm and Push Rod Replacement .
  5. Remove the cylinder head bolts (1).

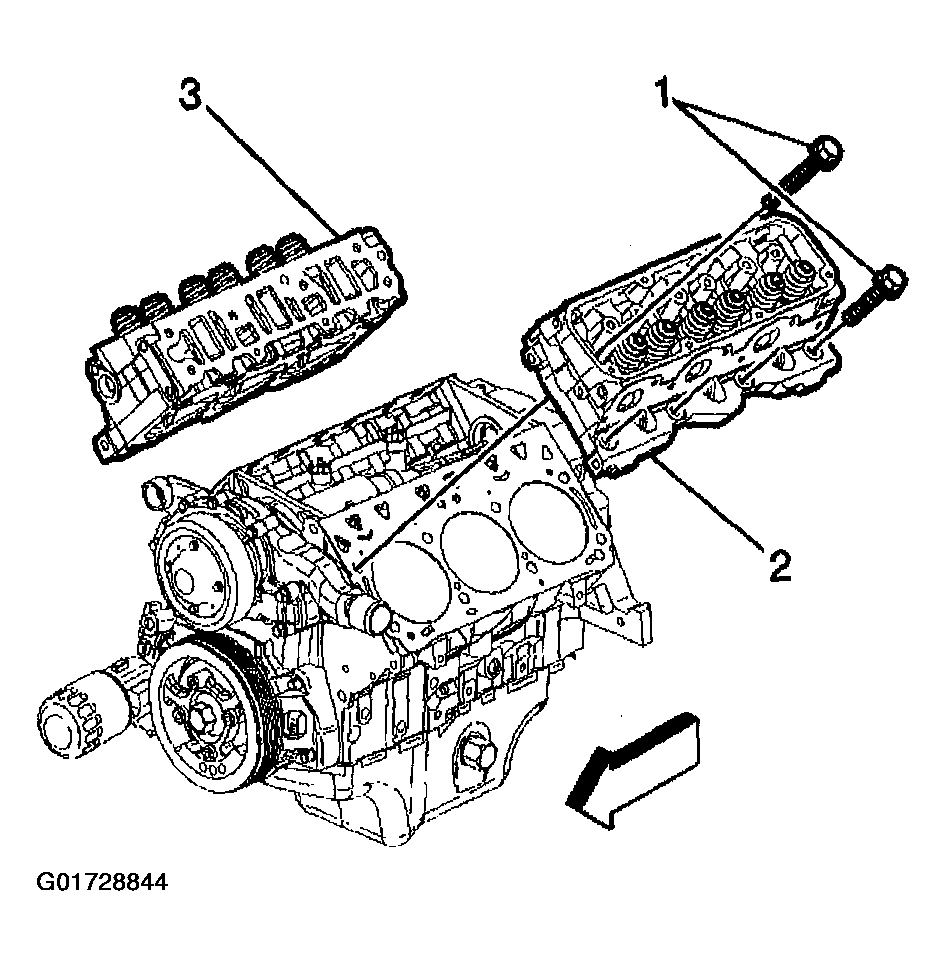

    Fig 1: Removing Cylinder Head Bolts
    G01728844Courtesy of GENERAL MOTORS CORP.
  6. Remove the right cylinder head (3).
  7. Remove the right cylinder head gasket (3).

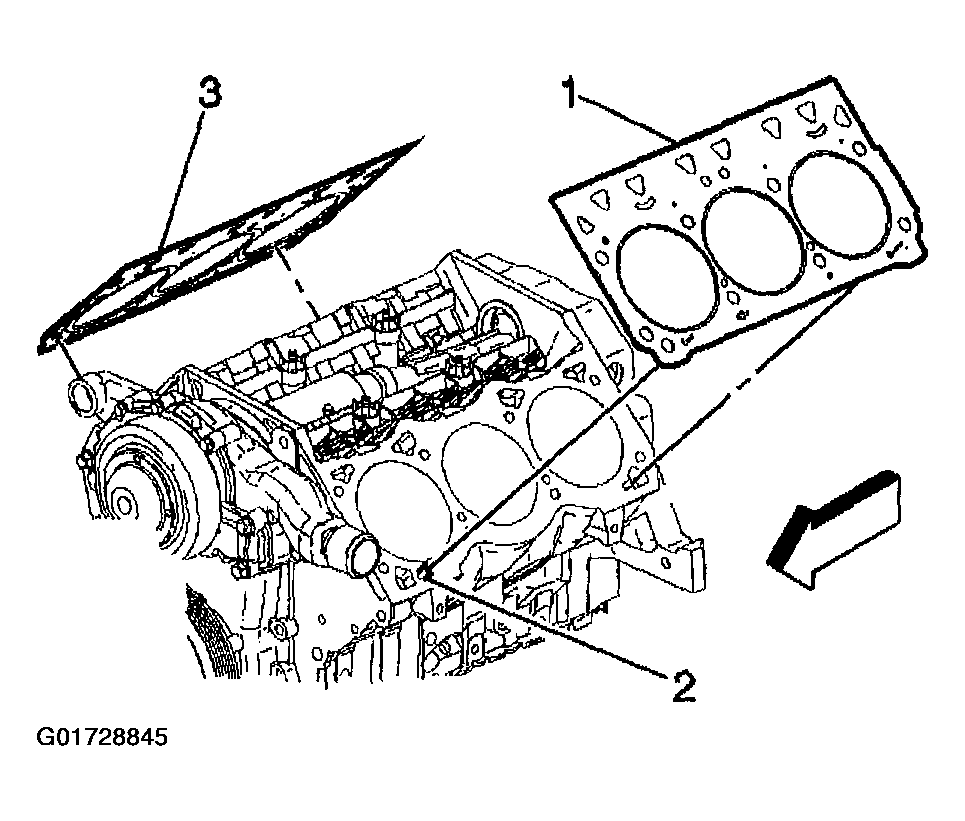

    Fig 2: Removing Right Cylinder Head Gasket
    G01728845Courtesy of GENERAL MOTORS CORP.
  8. Disassemble the cylinder head. Refer to CYLINDER HEAD DISASSEMBLE .
