Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine flywheel. Refer to Engine Flywheel Replacement .

    Important:  Make sure not to damage the crankshaft outside diameter surface or the inside diameter of the crankshaft rear oil seal housing.

  2. Remove the crankshaft rear oil seal. Insert a flat-bladed tool through the dust lip at an angle. Pry out the crankshaft rear oil seal by moving the handle of the tool towards the end of the crankshaft. Repeat as necessary around the crankshaft rear oil seal.

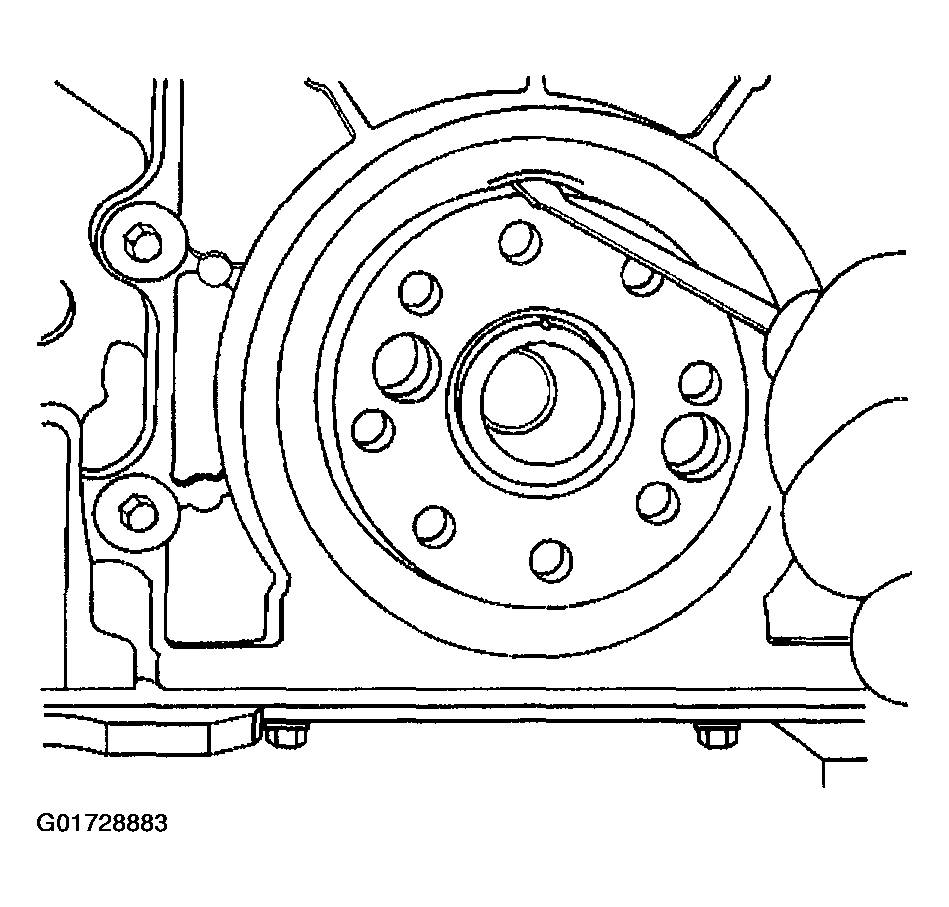

    Fig 1: Removing Crankshaft Rear Oil Seal
    G01728883Courtesy of GENERAL MOTORS CORP.
  3. Inspect the inside diameter of the bore. Repair or replace the crankshaft rear oil seal housing if necessary.

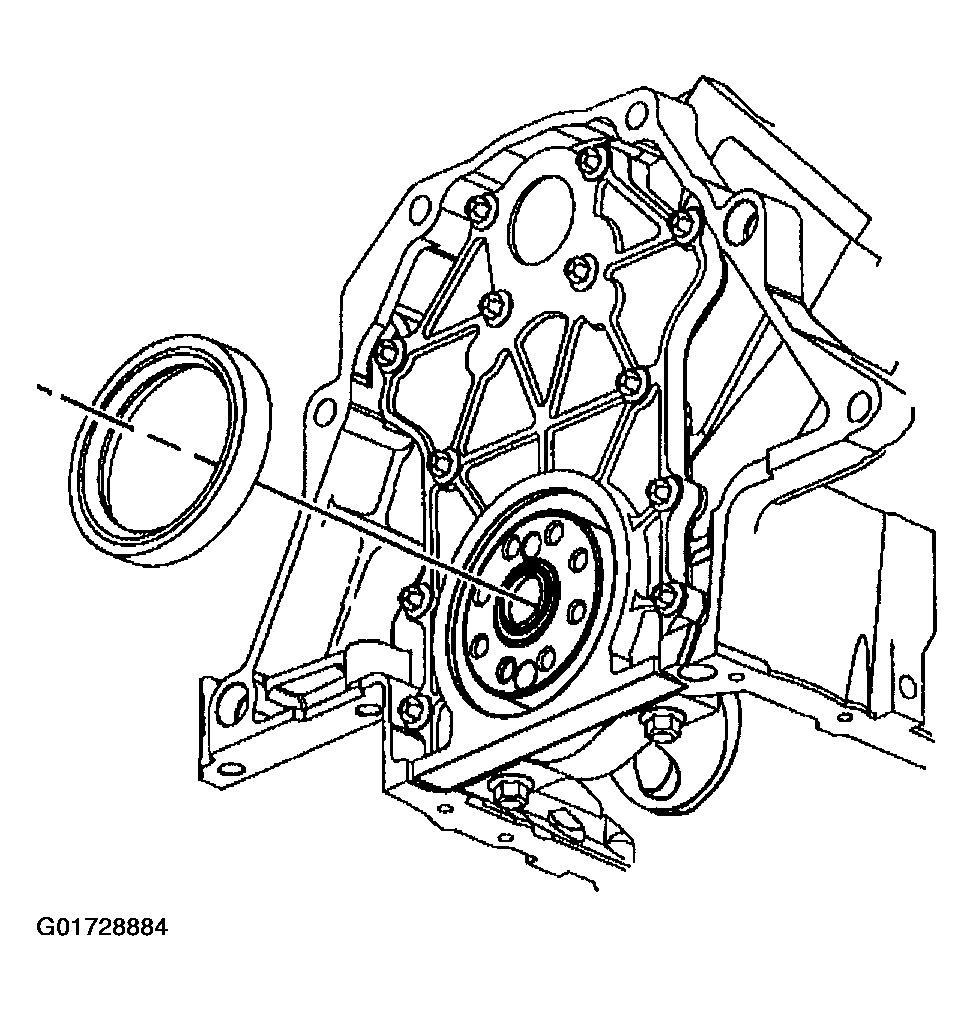

    Fig 2: Inspecting Inside Diameter Of The Bore
    G01728884Courtesy of GENERAL MOTORS CORP.
  4. Inspect the crankshaft for nicks or burrs on the surface that contacts the crankshaft rear oil seal.
  5. Repair or replace the crankshaft if necessary.
