Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the crankshaft front oil seal. Use the J 35354.
  2. Remove the J 35354.
  3. Install the crankshaft balancer. Refer to Crankshaft Balancer Replacement .

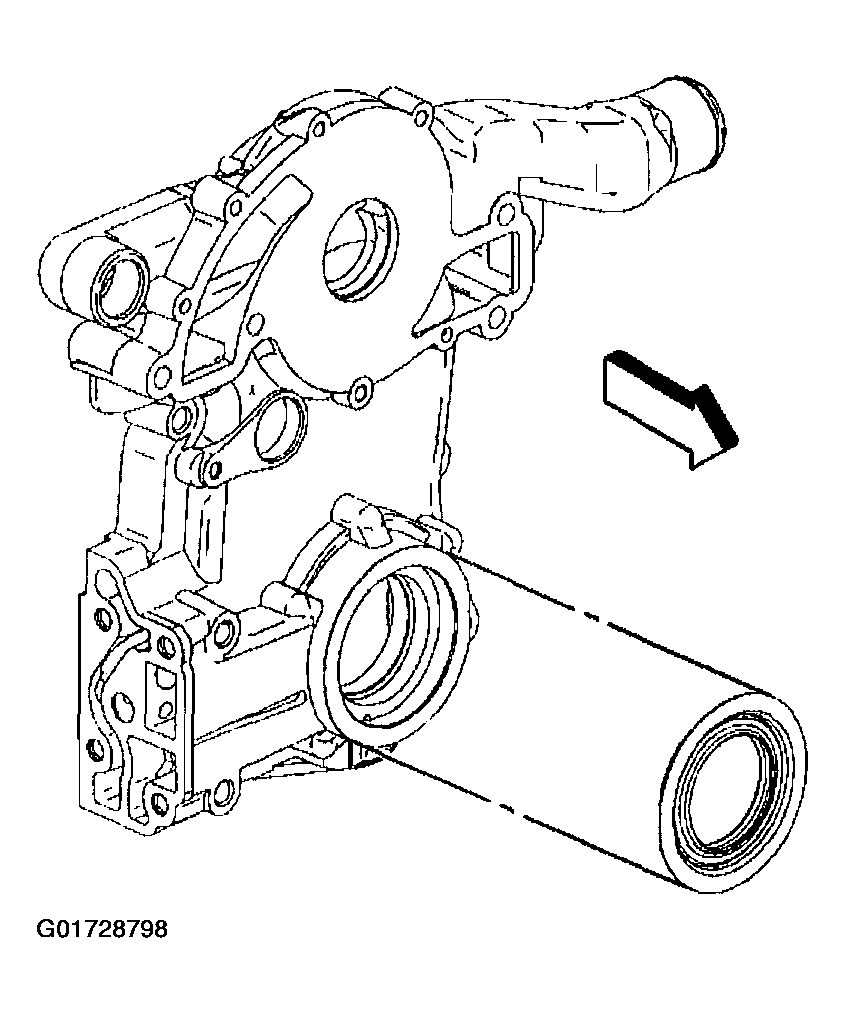

    Fig 1: Installing Crankshaft Front Oil Seal
    G01728798Courtesy of GENERAL MOTORS CORP.
