Upper Engine Noise, Regardless of Engine Speed

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

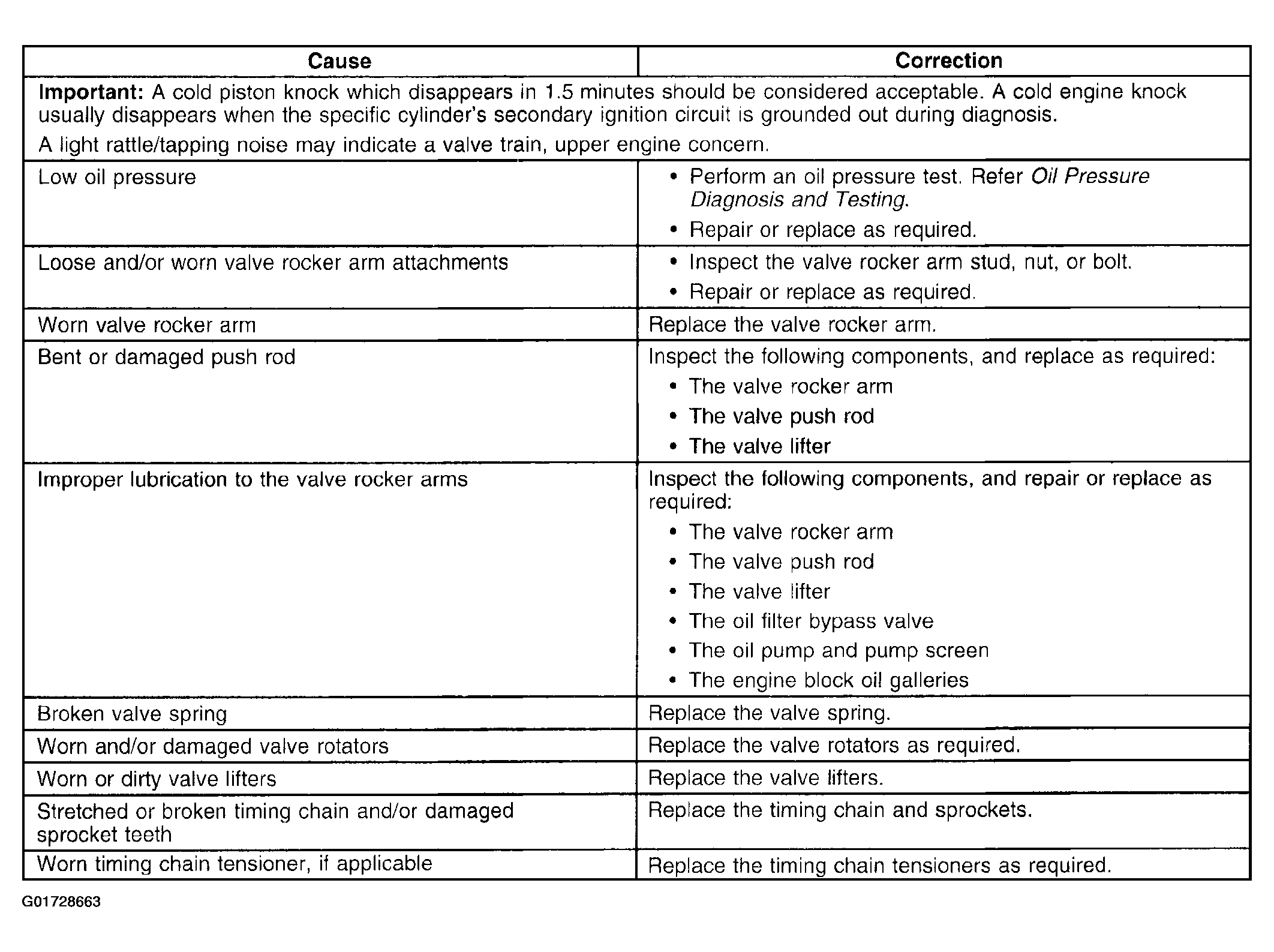

Fig 1: Upper Engine Noise, Regardless Of Engine Speed (1 Of 2)
G01728663Courtesy of GENERAL MOTORS CORP.

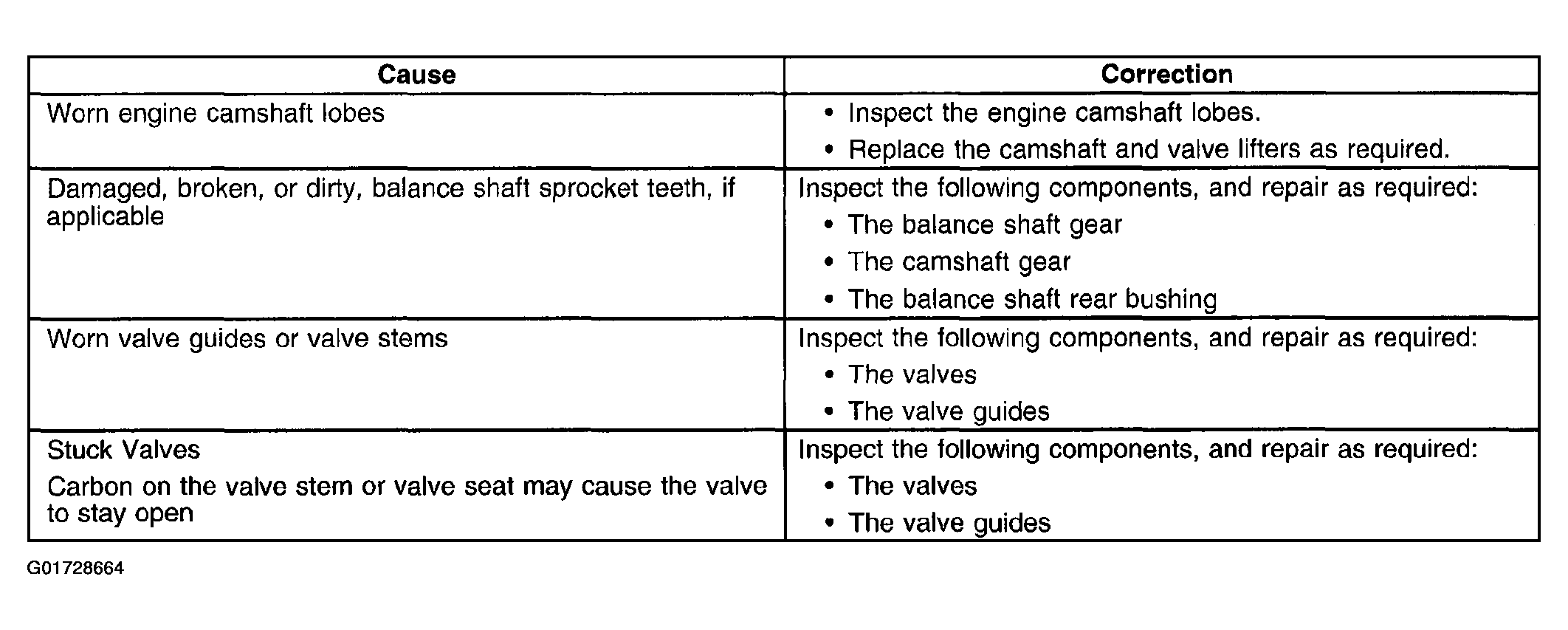

Fig 2: Upper Engine Noise, Regardless Of Engine Speed (2 Of 2)
G01728664Courtesy of GENERAL MOTORS CORP.
