Engine Noise Under Load

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

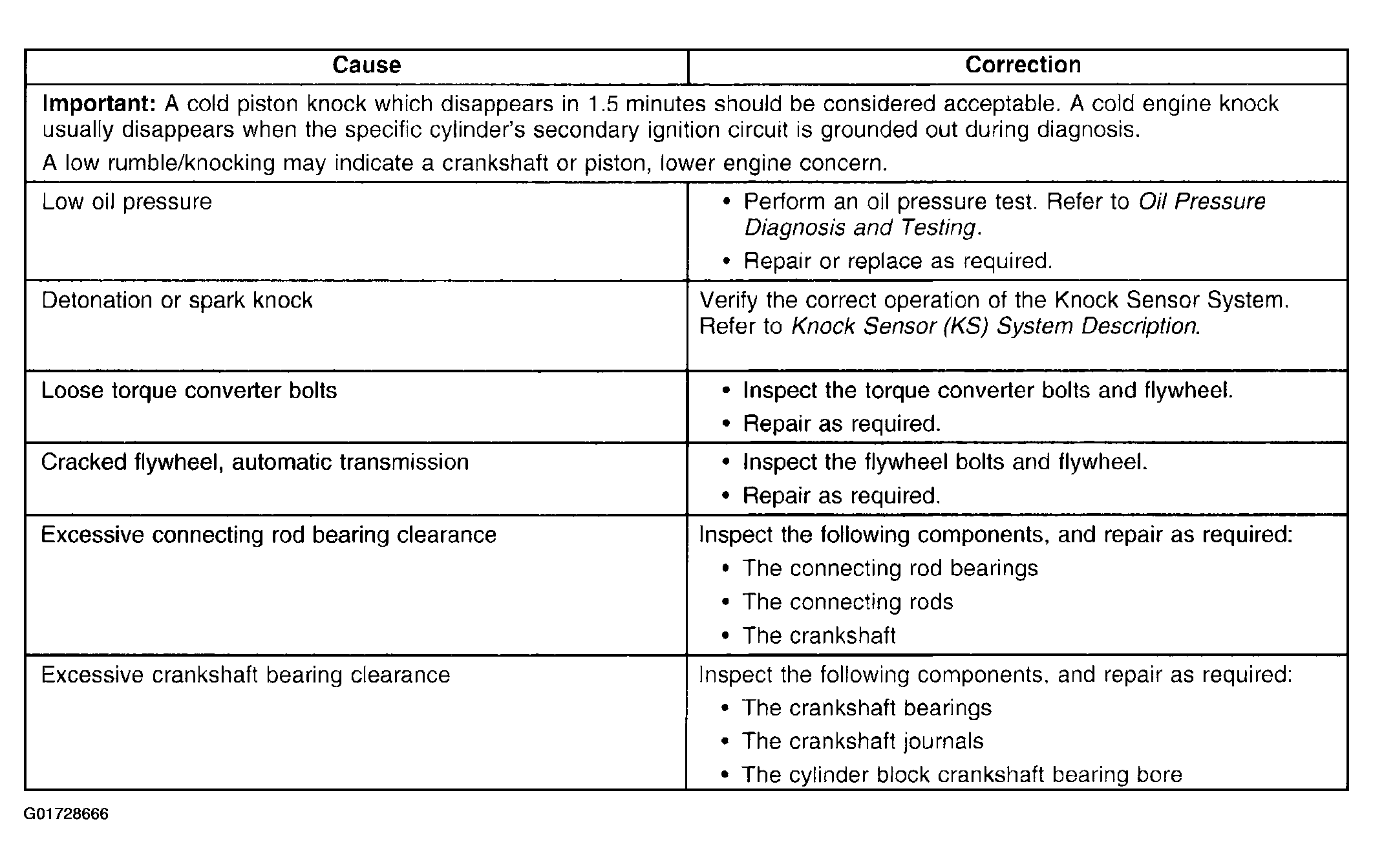

Fig 1: Engine Noise Under Load
G01728666Courtesy of GENERAL MOTORS CORP.
