Torque Specifications: 3.8L
WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS (3.8L)
| Application |
Ft. Lbs. (N.m) |
| Engine Mount Through Bolt/Nut |
59 (80) |
| Engine Mount-To-Frame Bolts |
43 (58) |
| Torque Converter-To-Flex Plate Bolts |
47 (63) |

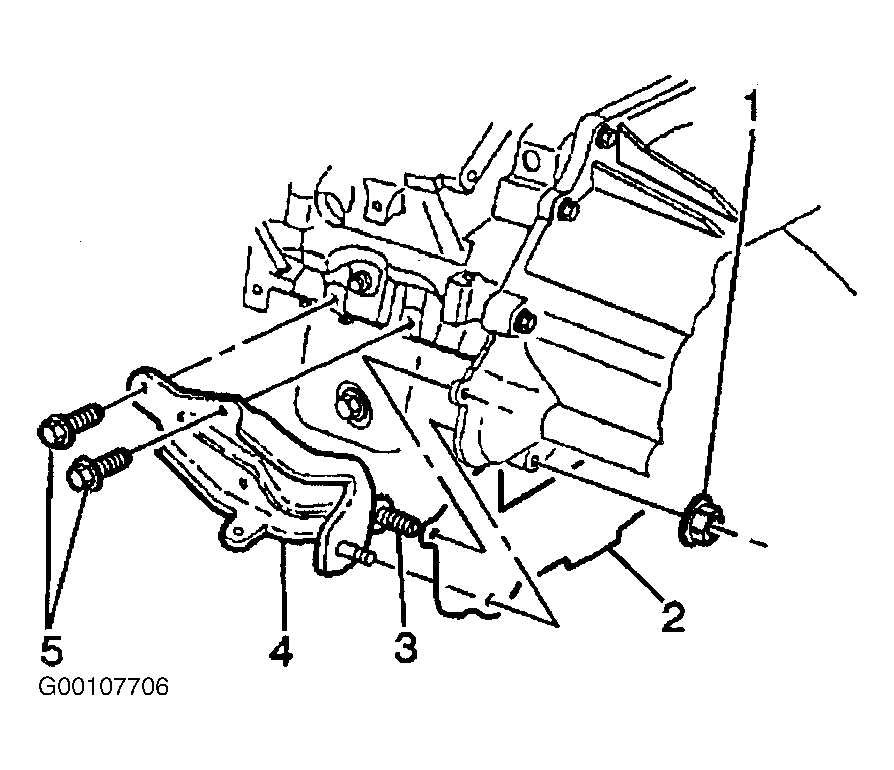

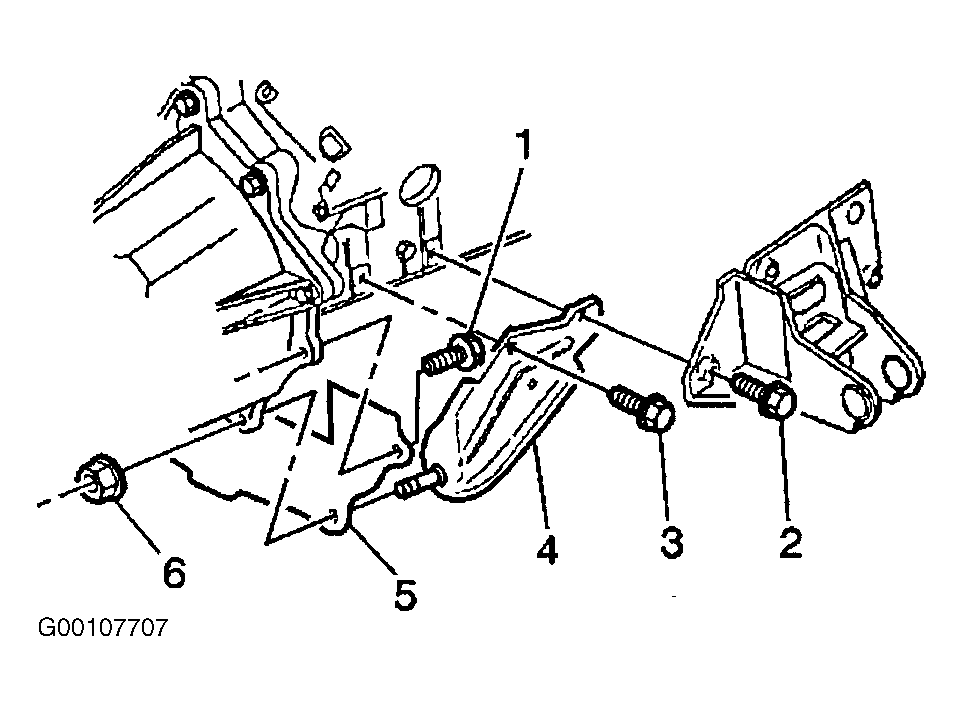

| Transmission Brace Bolts |
| No. 2 & 3 |
37 (50) |
| No. 5 |
21 (28) |
| Transmission Brace Nuts (No. 1 & 6) , |
59 (80) |
| Transmission Mount-To-Support Nut |
42 (57) |
| Transmission Oil Cooler Line Bracket-To-Frame Bolt |
13 (17) |
| Transmission Support-To-Rail Bolts |
66 (90) |
| Transmission-To-Engine Bolts & Nuts |
70 (95) |
| INCH Lbs. (N.m) |
| Torque Converter Cover Bolts |
75 (8.5) |
| Wiring Harness Clamp-To-Transmission Bolt |
22 (2.5) |
