Installation (5.7L)

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

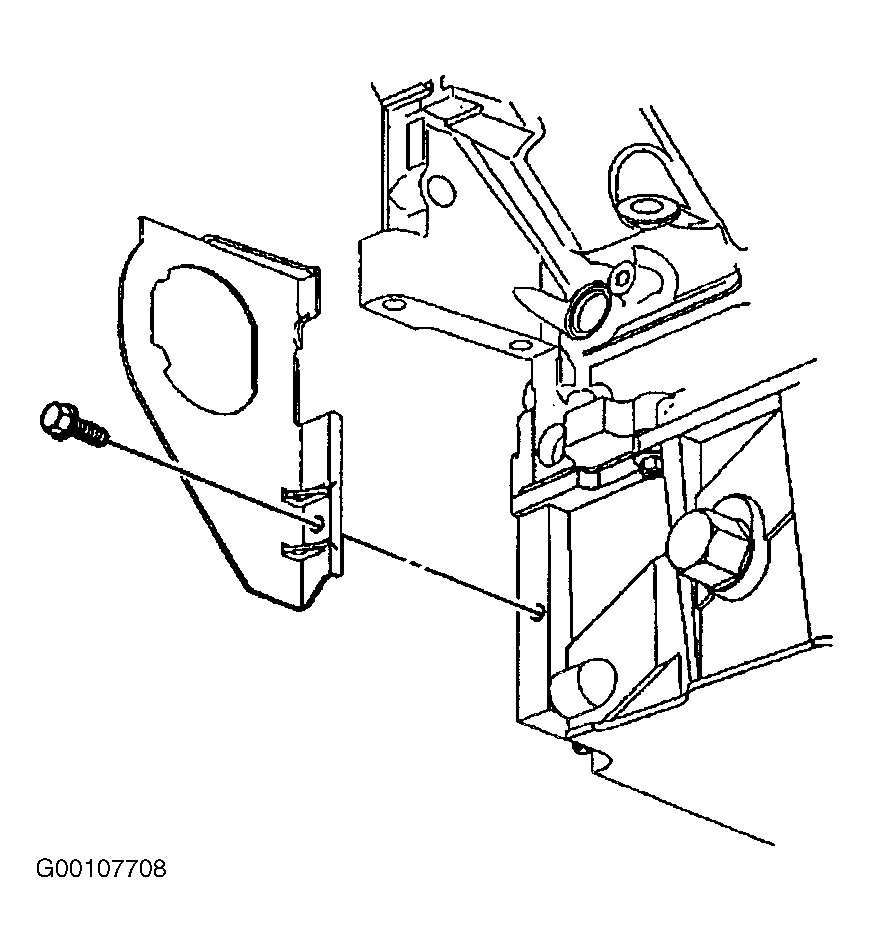

  1. Install the left side converter cover. See Figure.
  2. Install the left side converter cover bolt. Tighten the left side converter cover bolt to specification. See TORQUE SPECIFICATIONS .

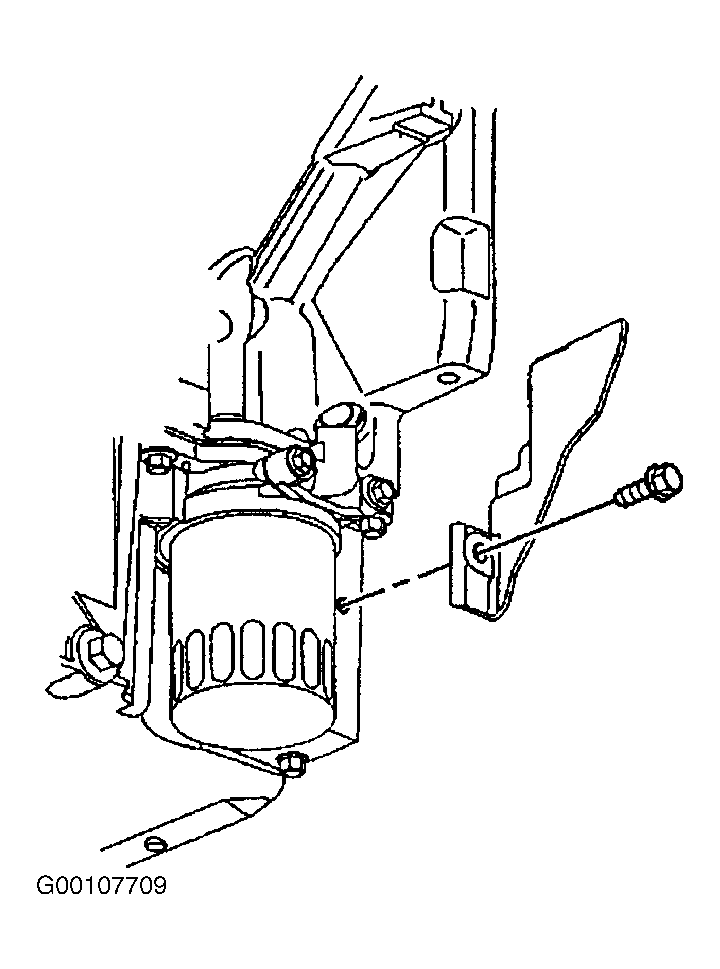

  3. Install the right side converter cover. See Figure.
  4. Install the right side converter cover bolt. See Figure. Tighten the right side converter cover bolt to specification. See TORQUE SPECIFICATIONS .
  5. Install the starter, if removed. See STARTERS - CAMARO & FIREBIRD article in STARTING & CHARGING SYSTEMS.
  6. Lower the vehicle.
