Floor Panel Reinforcement: Installation

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the floor panel center reinforcement.

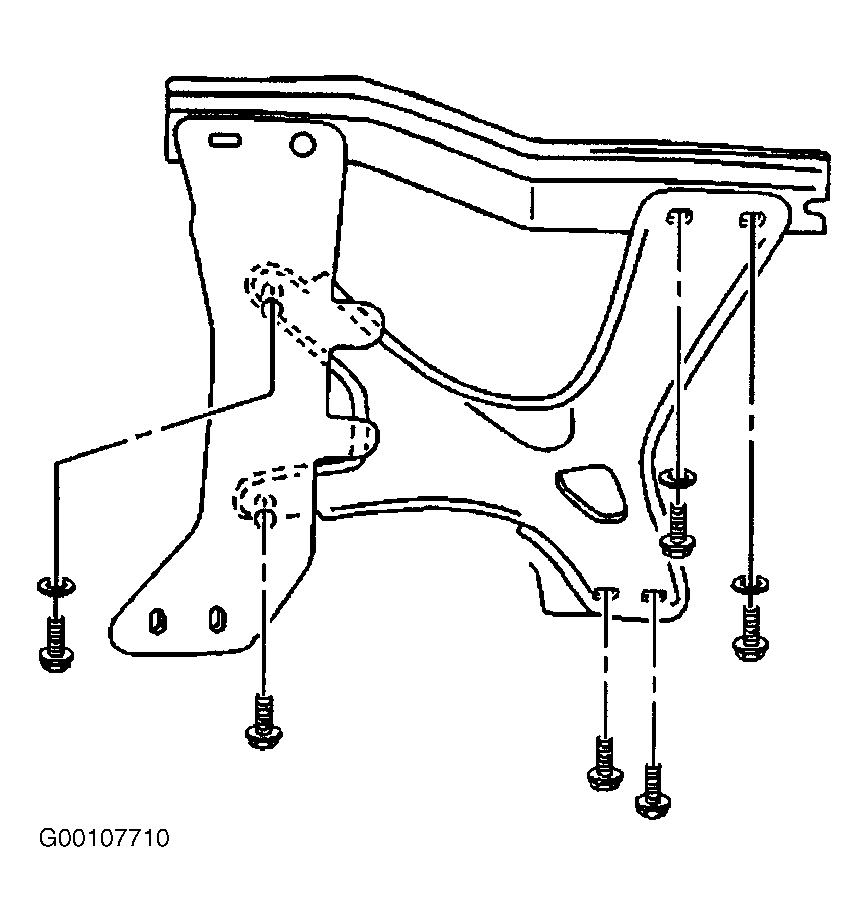

  2. Install the floor panel center reinforcement bolts and washers at the underbody. See Figure.
  3. Install the floor panel center reinforcement bolts and washers to the transmission support. See Figure. Tighten the floor panel center reinforcement bolts to specification. See TORQUE SPECIFICATIONS .
  4. Lower the vehicle.
