Removal & Installation (Impala)

WARNING: This page is about a different car, the 2002 Chevrolet Monte Carlo and 2002 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Disconnect negative battery cable.
  2. Remove driver-side lower B-pillar trim panel. See Fig 1. Remove Connector Position Assurance (CPA) clip from SIS connector. Disconnect SIS connector. Remove SIS bolts. Remove SIS.
  3. To install, reverse removal procedure. Tighten SIS bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

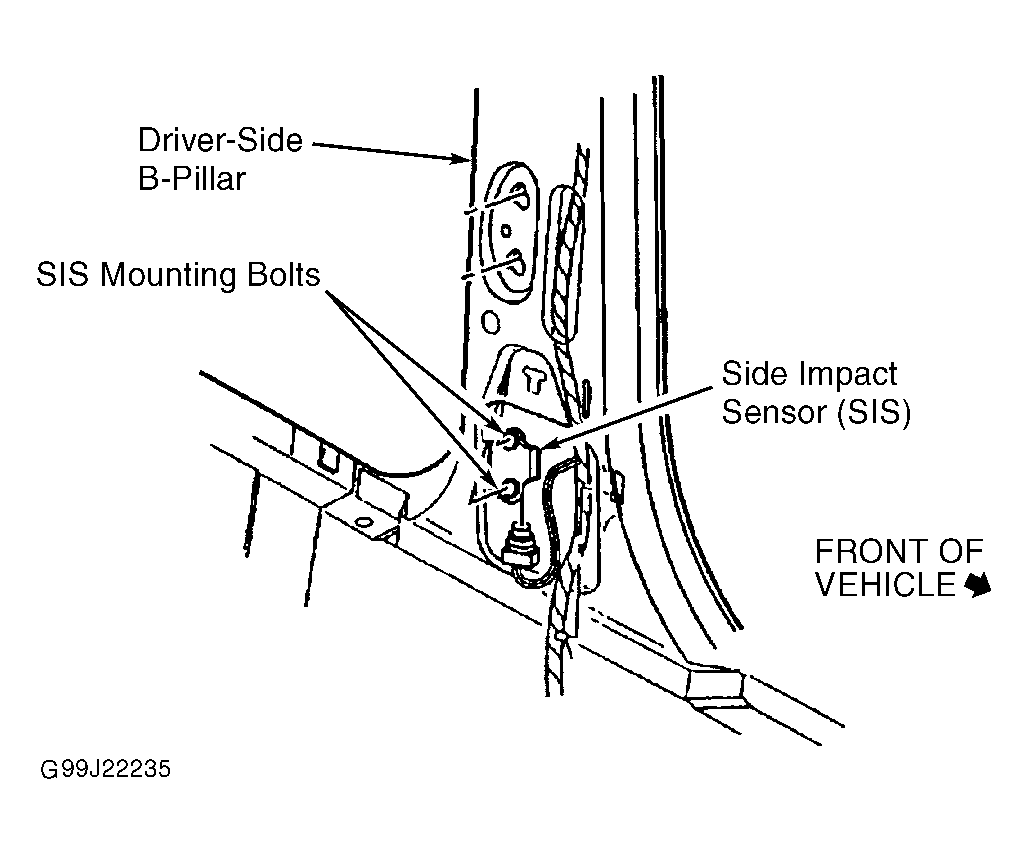

Fig 1: Identifying Side Impact Sensor (Impala)
G99J22235Courtesy of GENERAL MOTORS CORP.
