Removal & Installation (Driver-side)

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove driver-side air bag module Torx bolts from back of steering wheel. Pull driver-side air bag module away from steering wheel. Remove Connector Position Assurance (CPA) clip from upper SIR coil connector and disconnect connector. See Fig 1.
  3. To install, reverse removal procedure. Tighten driver-side air bag module Torx bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

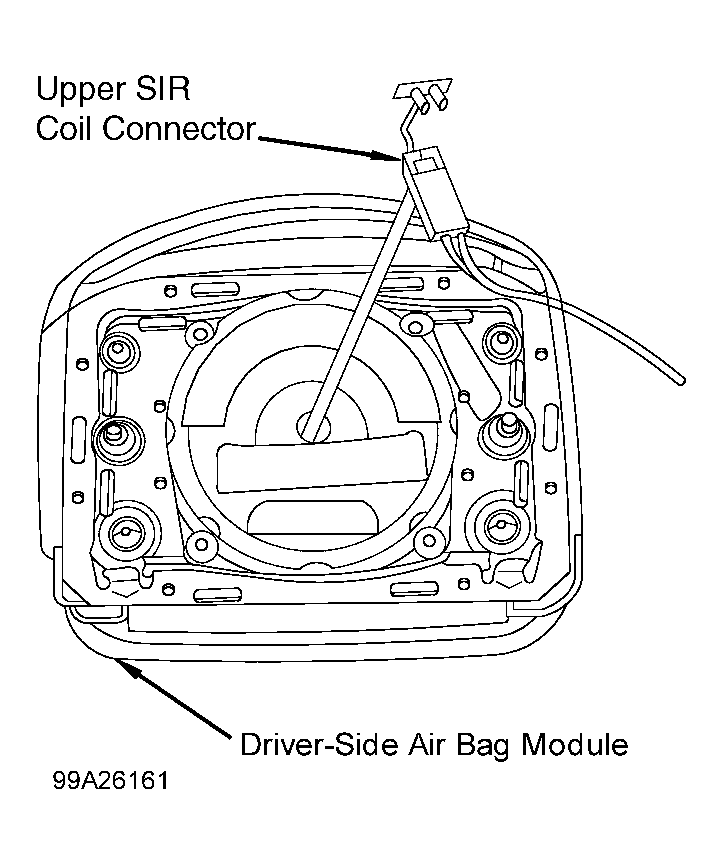

Fig 1: Identifying Driver-side Air Bag Module
G99A26161Courtesy of GENERAL MOTORS CORP.
