Removal & Installation (3.8L)

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition off. Drain cooling system. Raise and support vehicle. Disconnect connector of knock sensor to be removed. See Fig 1 Fig 2 . Remove knock sensor.
To install, reverse removal procedure. Tighten knock sensor to specification. See TORQUE SPECIFICATIONS . Refill the engine cooling system. See COOLING SYSTEM BLEEDING under COOLING SYSTEM.

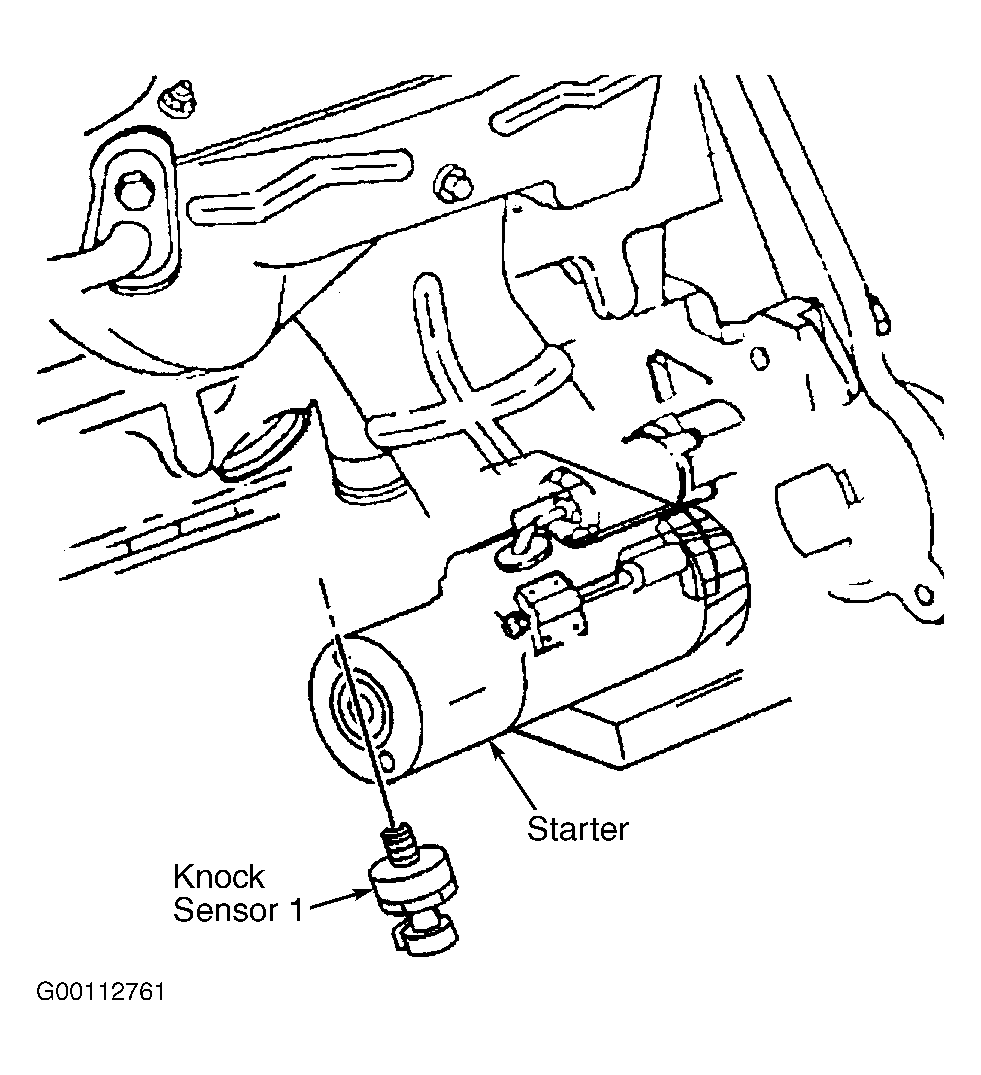

Fig 1: Removing Knock Sensor 1 (3.8L)

Courtesy of GENERAL MOTORS CORP.

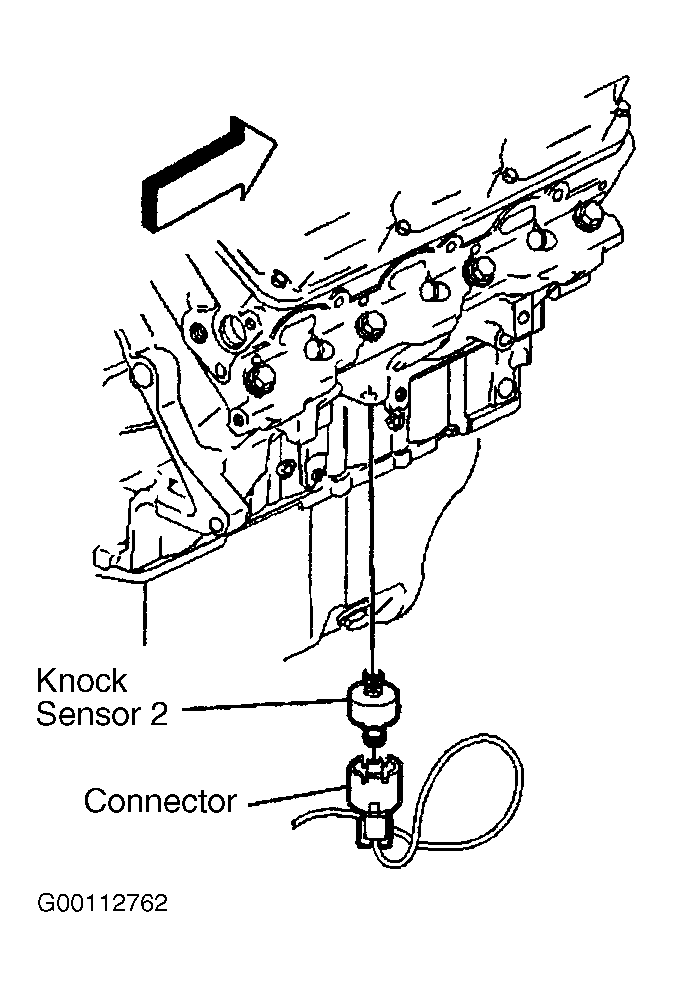

Fig 2: Removing Knock Sensor 2 (3.8L)

Courtesy of GENERAL MOTORS CORP.
