Removal & Installation (3.8L)
WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

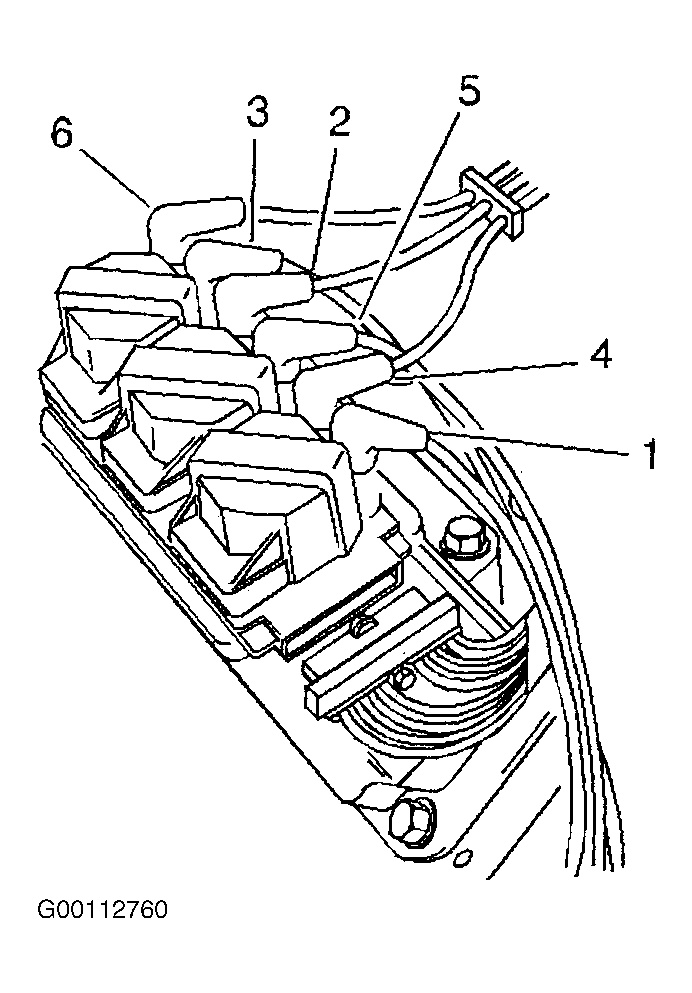

Turn ignition off. Disconnect spark plug wires from coils. Remove 6 screws retaining coils to ignition control module. Remove ignition coils from module. To install, reverse removal procedure. Tighten retaining screws to specification. See TORQUE SPECIFICATIONS . Ensure plug wires are installed in the proper location on coils. See Fig 1 .
