Removal & Installation (3.8L)
WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

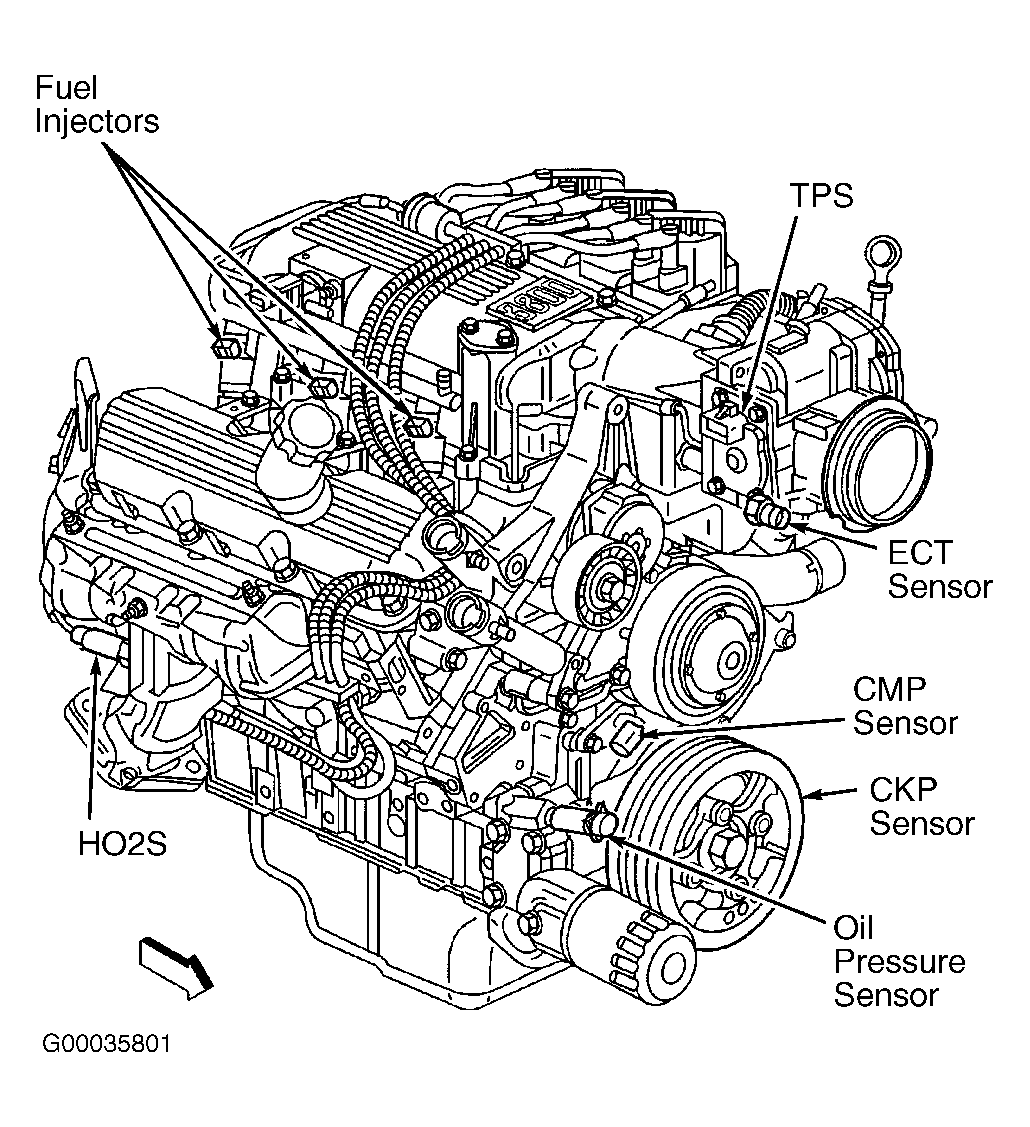

Turn ignition off. Disconnect Camshaft Position (CMP) sensor connector. See Figure . Remove CMP sensor mounting bolt. Remove CMP sensor. To install, reverse removal procedure. Tighten CMP sensor bolt to specification. See TORQUE SPECIFICATIONS .
