Removal & Installation
WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

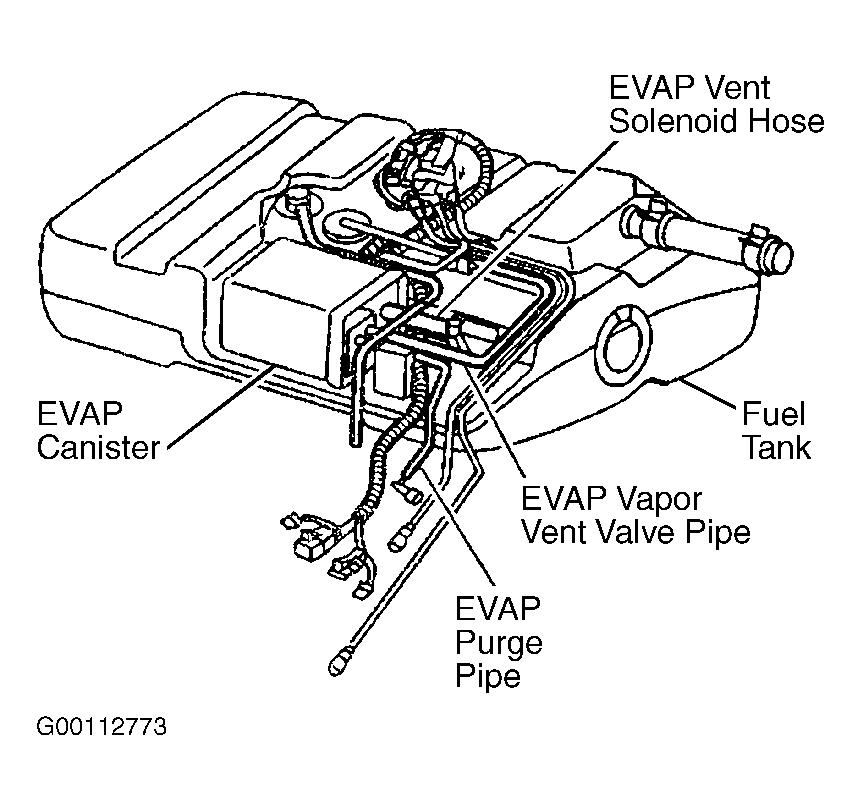

EVAP canister is located on top of fuel tank. Remove fuel tank. See FUEL TANK . Disconnect the EVAP vapor vent valve pipe from the EVAP canister. See Fig 1 . Disconnect the EVAP purge pipe from the EVAP canister. Disconnect the EVAP canister vent solenoid hose from the EVAP canister. Carefully bend the bracket in order to remove the EVAP canister from the bracket. To install, reverse removal procedure.
