Removal & Installation
WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

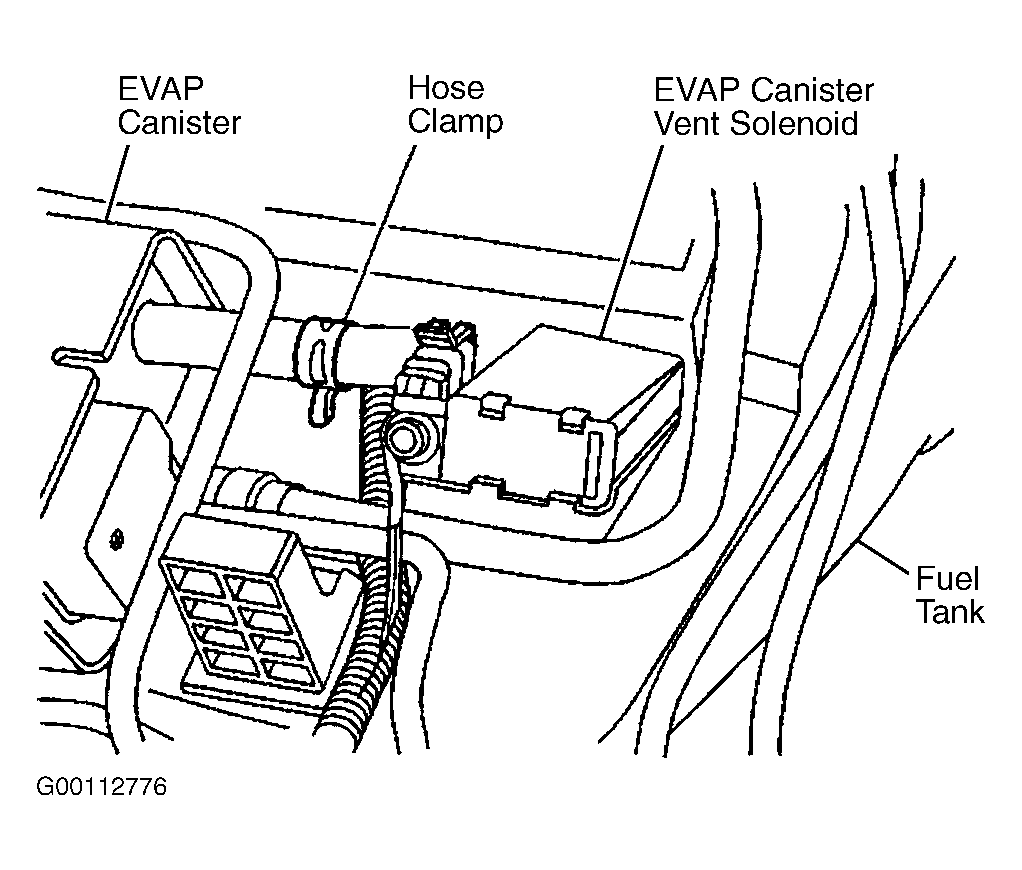

The EVAP canister vent solenoid is located on top of fuel tank. See Fig 1 . Remove fuel tank. See FUEL TANK . Disconnect the EVAP canister vent solenoid harness connector. Slide the vent hose clamp back. Disconnect the vent hose from the EVAP vent solenoid. Remove the EVAP vent solenoid. To install, reverse removal procedure.
