Removal & Installation (5.7L)

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition off. Disconnect the EVAP engine vacuum pipe from the EVAP canister purge solenoid. See Fig 1 . Disconnect the EVAP pipe from the EVAP canister purge solenoid.
  2. Disconnect the EVAP canister purge solenoid harness connector. Remove the EVAP canister purge solenoid. To install, reverse removal procedure.

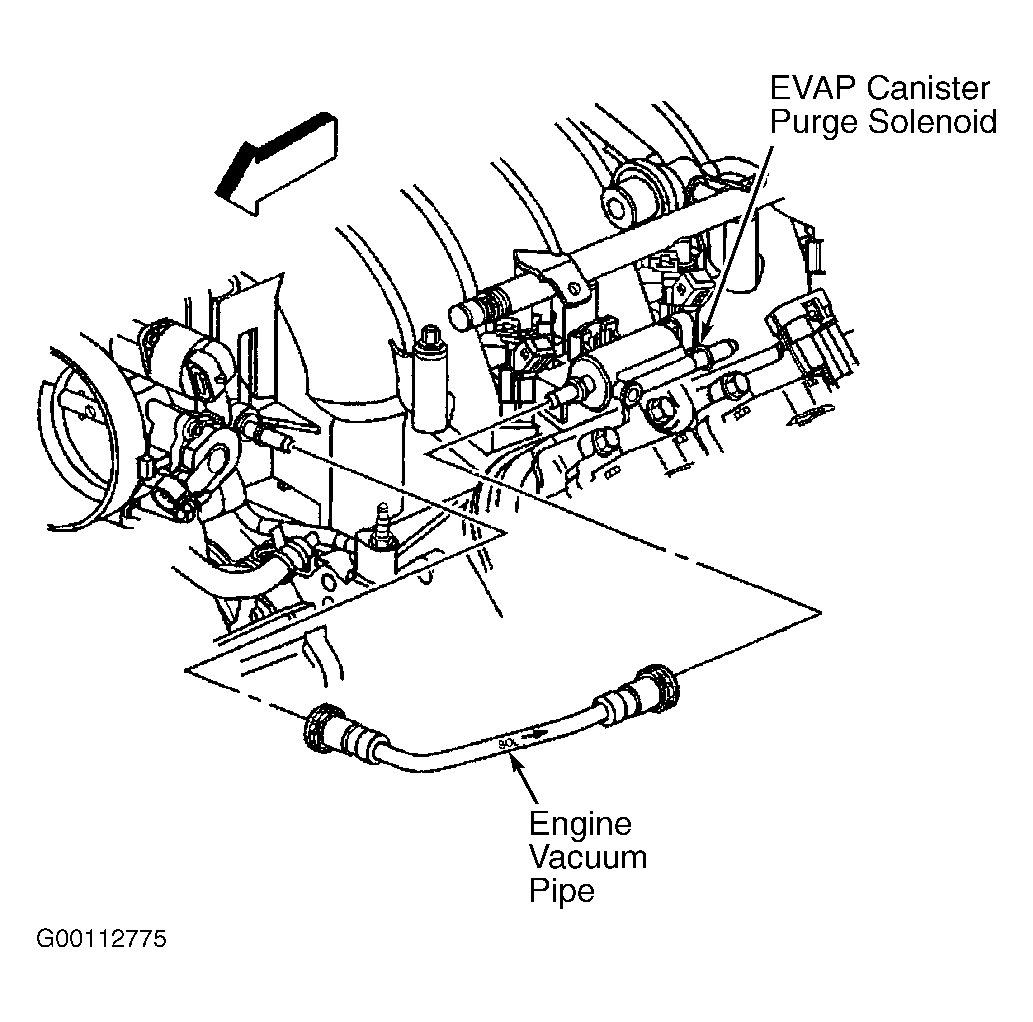

Fig 1: Locating EVAP Canister Purge Solenoid (5.7L)
G00112775Courtesy of GENERAL MOTORS CORP.
