Removal & Installation (3.8L)

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition off. Disconnect the EVAP canister purge solenoid harness connector. See Fig 1 . Disconnect the purge pipe from the EVAP canister purge solenoid. Remove the EVAP canister purge solenoid from the intake manifold.
  2. To install, reverse removal procedure. Tighten EVAP canister purge solenoid bracket nut to specification. See TORQUE SPECIFICATIONS  .

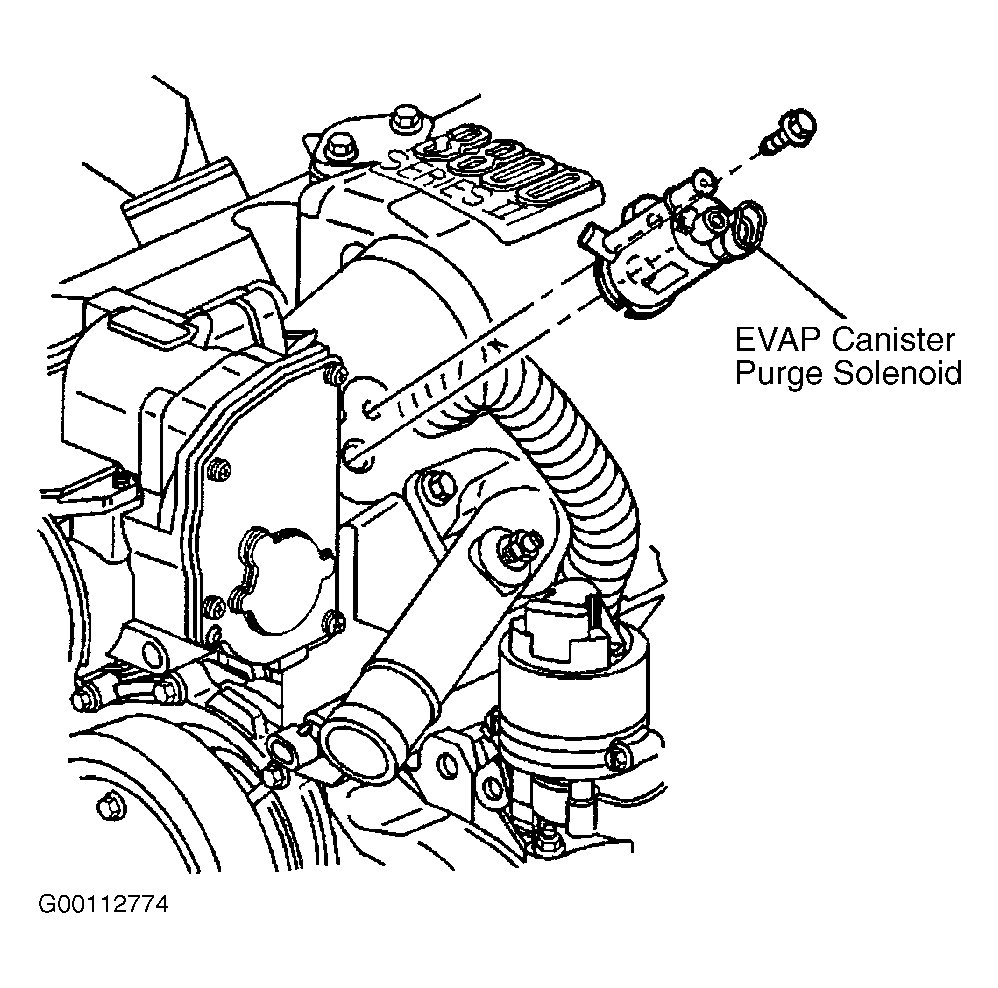

Fig 1: Locating EVAP Canister Purge Solenoid (3.8L)
G00112774Courtesy of GENERAL MOTORS CORP.
