Vehicle Speed Sensor: Installation
WARNING: This page is about a different car, the 2002 Pontiac Firebird, 2002 Chevrolet Corvette, and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

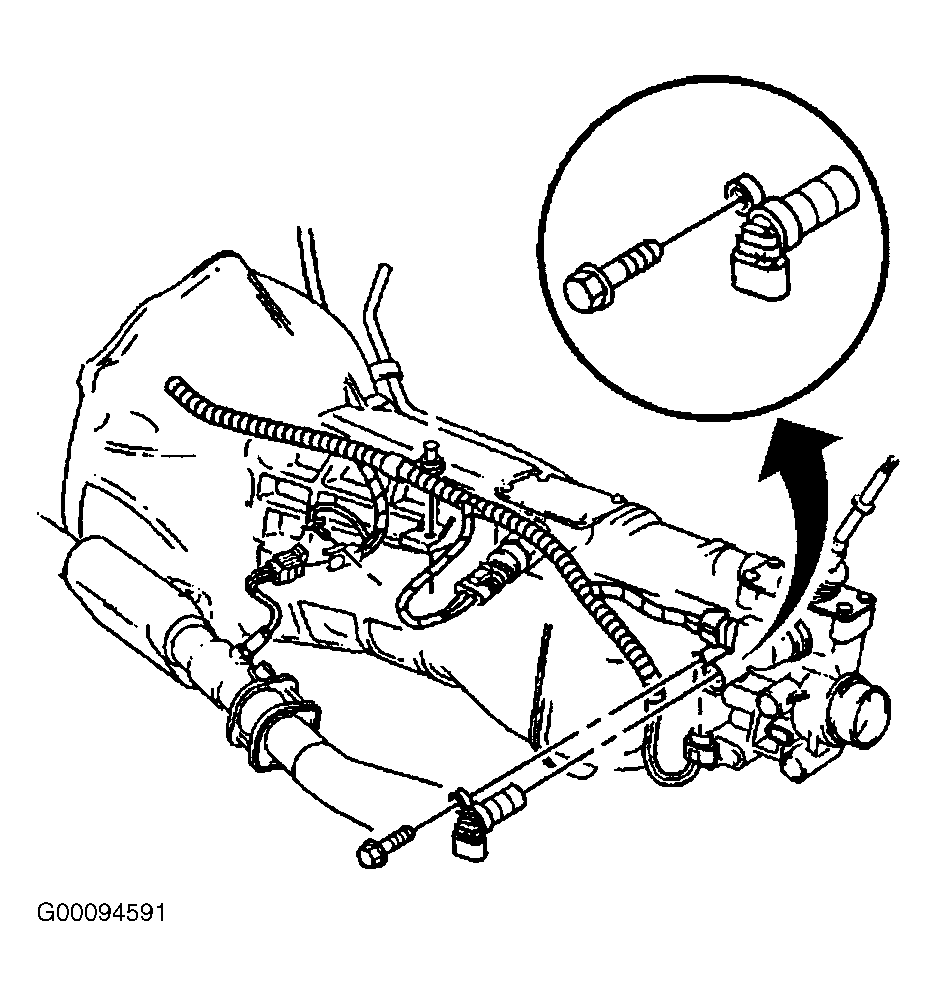

Install the vehicle speed sensor. See Fig 1 . Install the vehicle speed sensor bolt. Tighten the vehicle speed sensor bolt to specification. See TORQUE SPECIFICATIONS . Connect the vehicle speed sensor harness connector. Lower the vehicle.

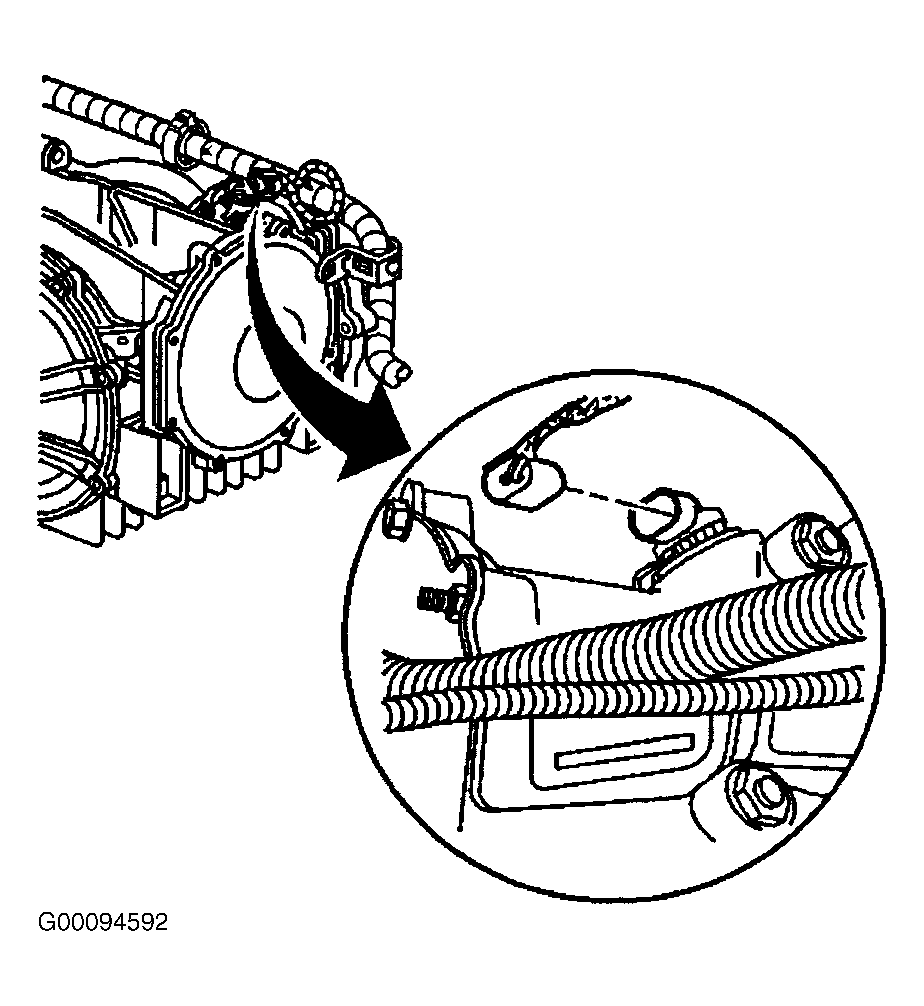

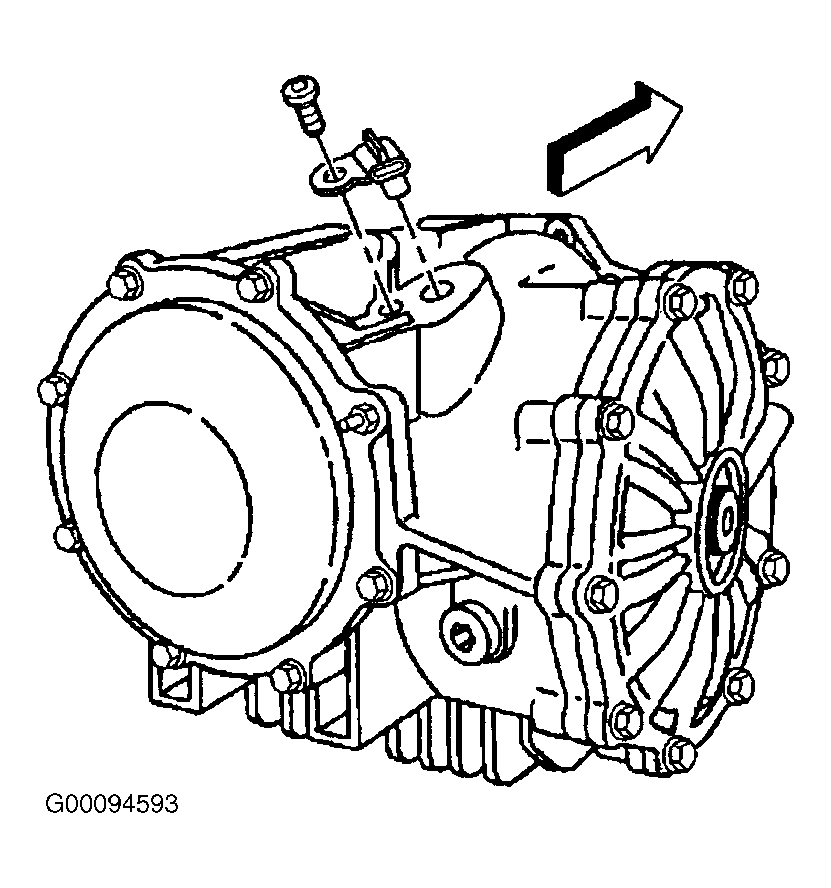

Lubricate the O-ring seal of the VSS with clean engine oil. Install the VSS into the hole on the axle case. See Fig 2 . Install the VSS retaining bolt the differential. Tighten the vehicle speed sensor retaining bolt to specification. See TORQUE SPECIFICATIONS . Connect the harness connector to the sensor. See Fig 1 . Install the right side muffler assembly. Lower the vehicle.
