Back-Up Light Switch: Installation
WARNING: This page is about a different car, the 2002 Pontiac Firebird, 2002 Chevrolet Corvette, and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

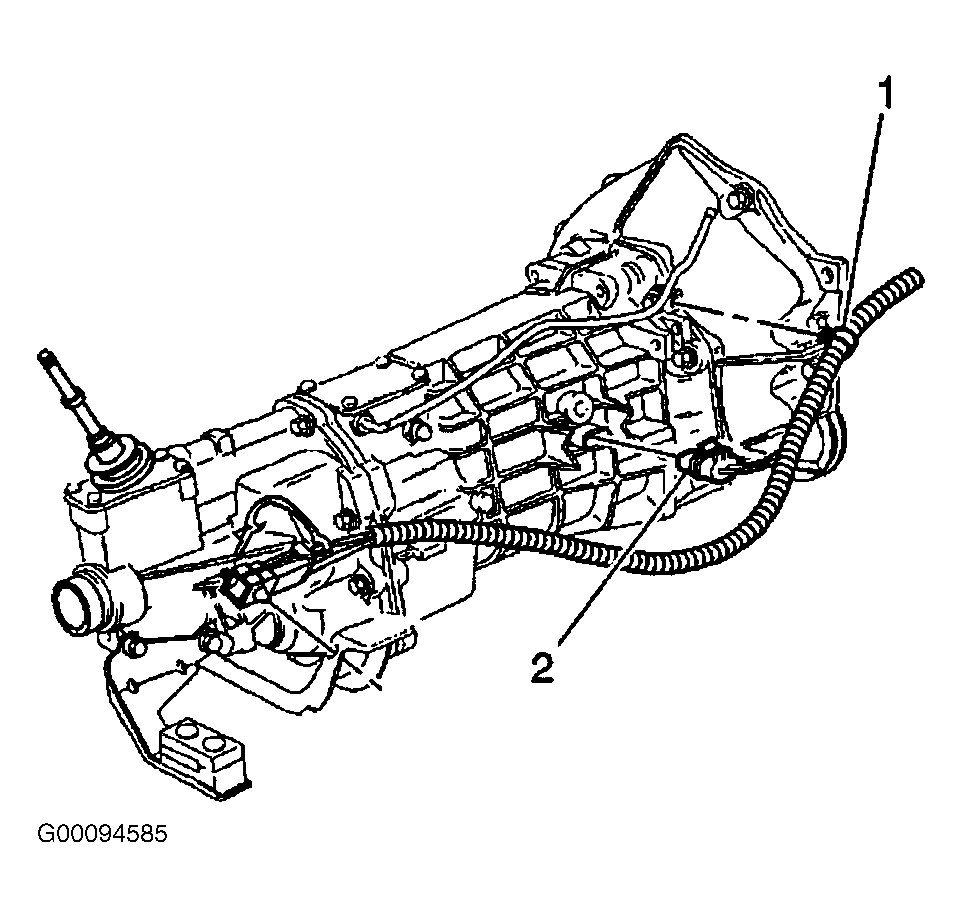

Apply pipe sealant with Teflon(R) (GM P/N 1052080) or equivalent, to the threads of the back-up light switch. Install the back-up light switch. Tighten the back-up light switch to specification. See TORQUE SPECIFICATIONS . Connect the back-up light switch harness connector (2). Ensure wiring harness clip (1) is secure. See Fig 1 . Lower the vehicle.

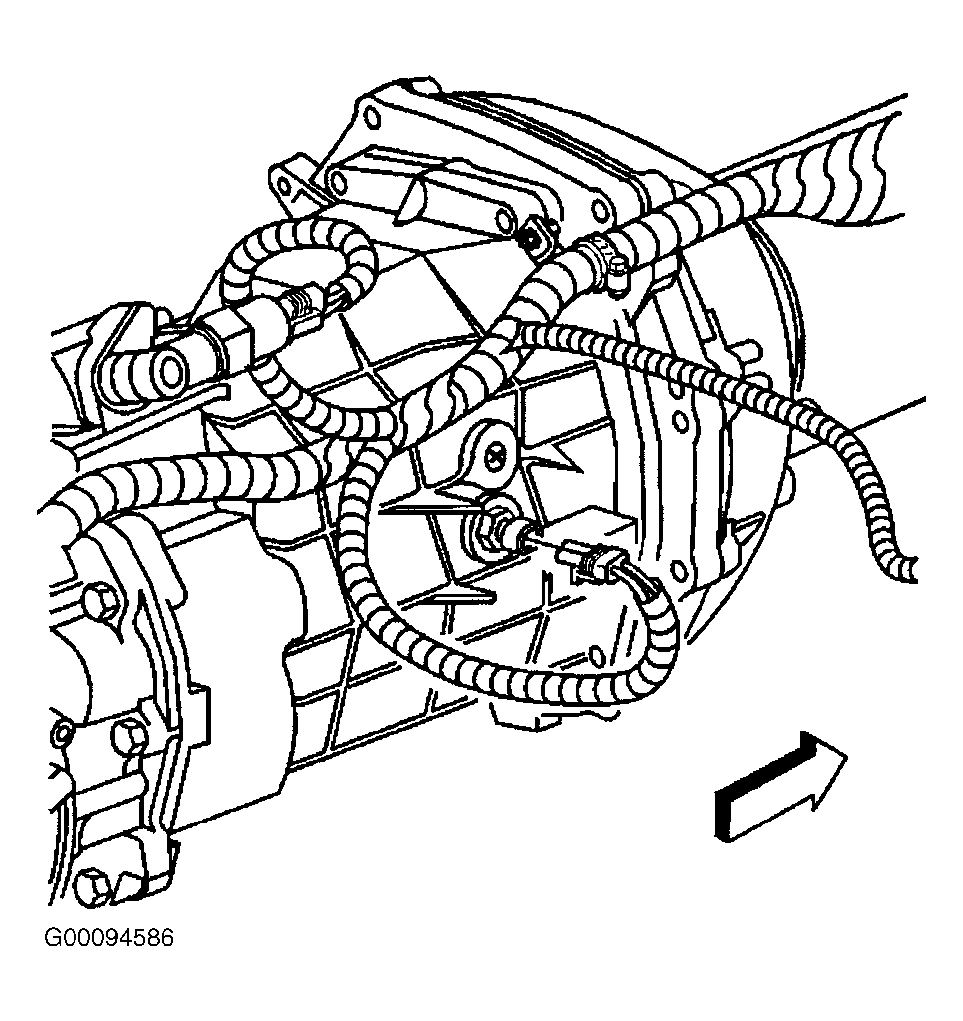

Install the back-up light switch. Tighten the back-up light switch to specification. See TORQUE SPECIFICATIONS . Connect the back-up light switch harness connector. See Fig 1 . Install the catalytic converter. Lower the vehicle.
