Starter Shield (5.7L): Installation

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

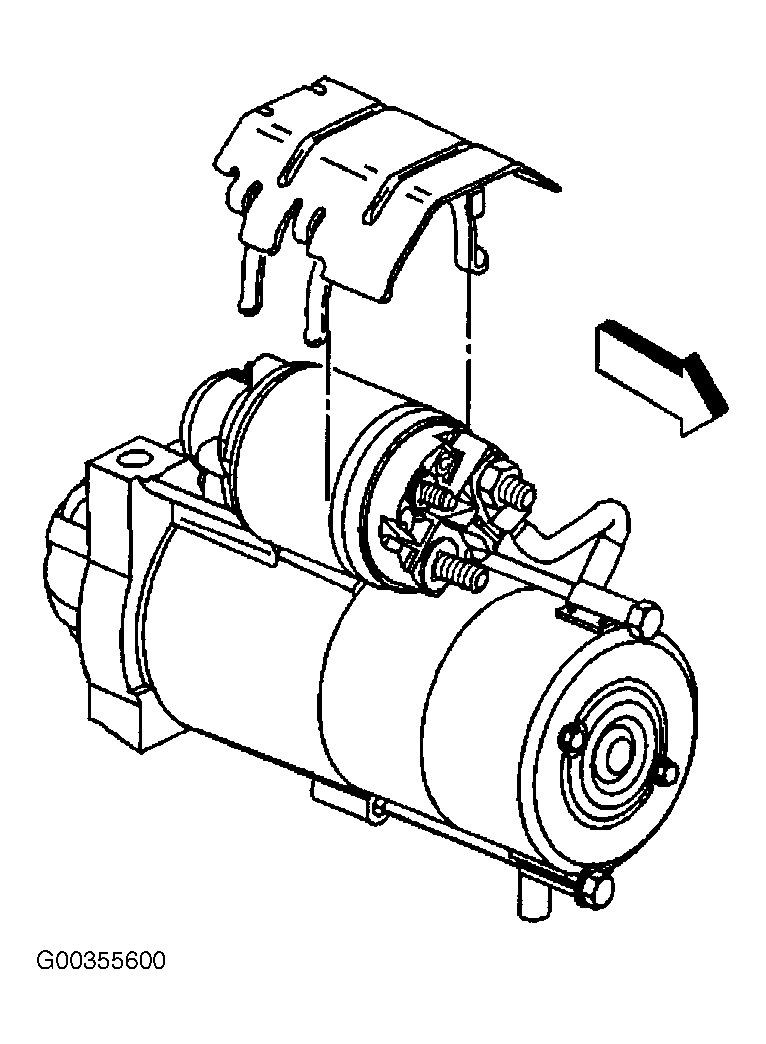

  1. Snap the starter motor shield to the starter solenoid. See Figure .
  2. Install the starter motor. Refer to STARTER MOTOR (5.7L)  .
