Vent Hose: Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

Raise and suitably support the vehicle. Remove the transmission support. See Fig 1 .
Slowly lower the transmission. Remove the ventilation hose from the ventilation tube at the transmission. Remove the ventilation hose clips from the torque arm. See Fig 2 . Remove the ventilation hose from the vehicle.

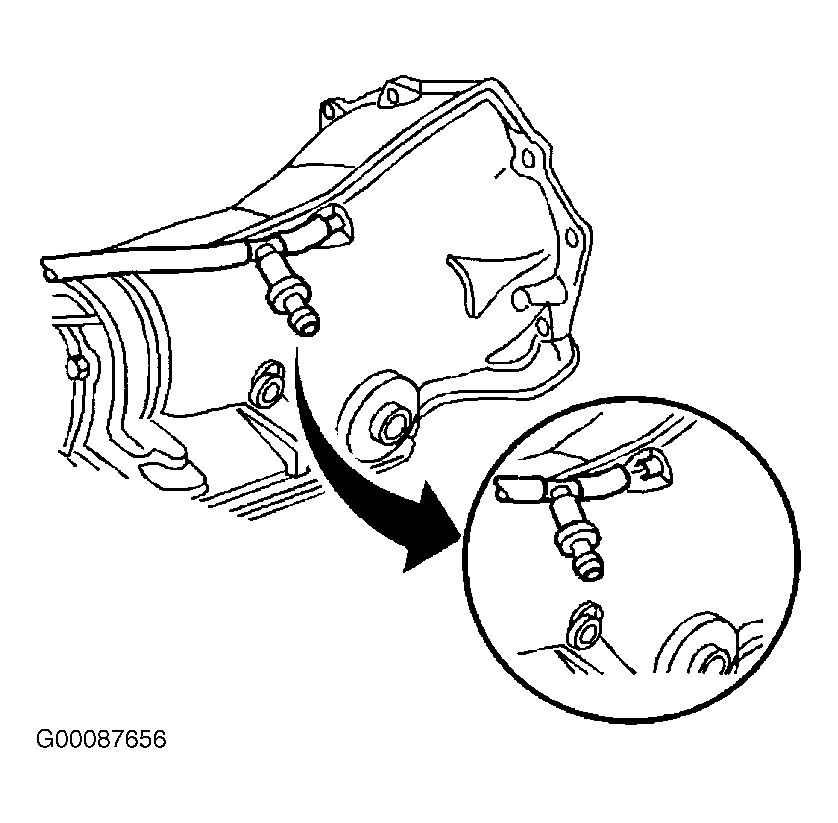

Fig 1: Disconnecting Transmission Vent Hose From Transmission

Courtesy of GENERAL MOTORS CORP.

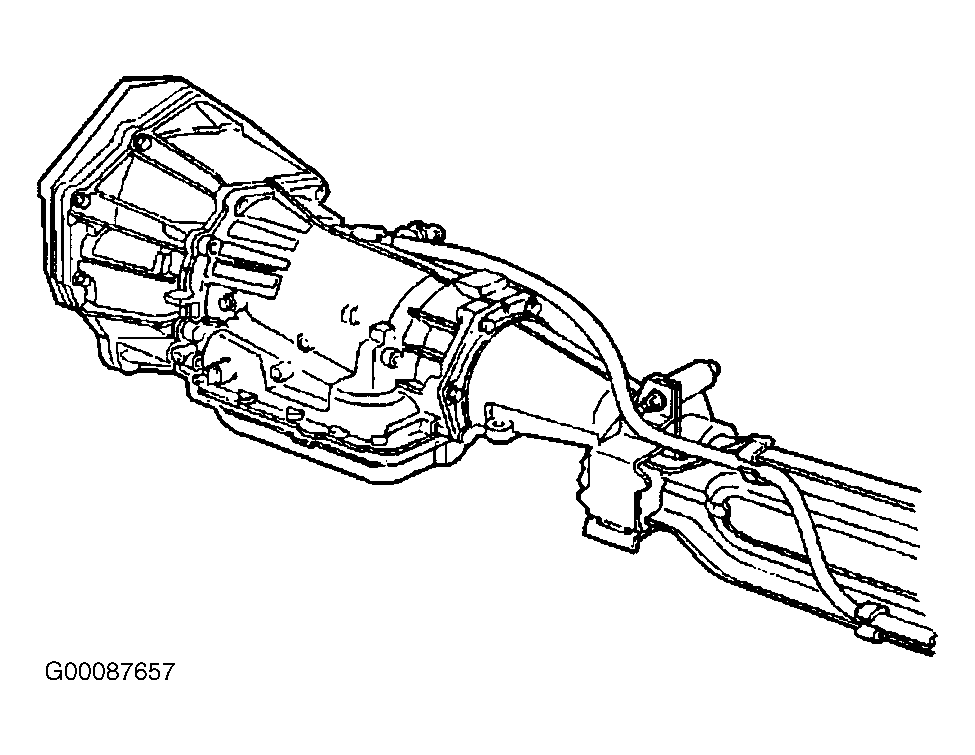

Fig 2: Removing & Installing Transmission Vent Hose At Torque Arm

Courtesy of GENERAL MOTORS CORP.
