Transmission Mount: Removal

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Support the transmission with a transmission jack. Remove the nut that secures the mount to the transmission support. See Fig 1 .
  2. Remove the bolts that secure the transmission support to the vehicle. See Fig 2 . Remove the transmission support from the vehicle. Remove the bolts that secure the mount to the transmission. Remove the mount from the transmission. See Fig 3 .
Fig 1: Removing & Installing Transmission Mount (1 Of 3)
G00087668Courtesy of GENERAL MOTORS CORP.
Fig 2: Removing Transmission Mount (2 Of 3)
G00087669Courtesy of GENERAL MOTORS CORP.

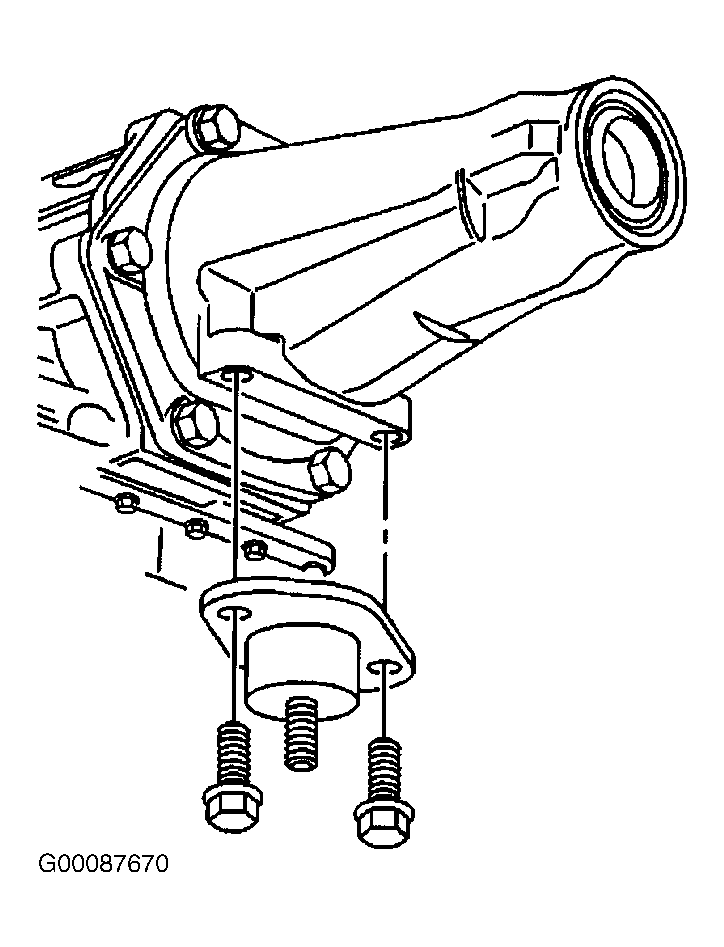

Fig 3: Removing Transmission Mount (3 Of 3)
G00087670Courtesy of GENERAL MOTORS CORP.
