Transmission Extension Housing Assembly & Seal: Installation

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

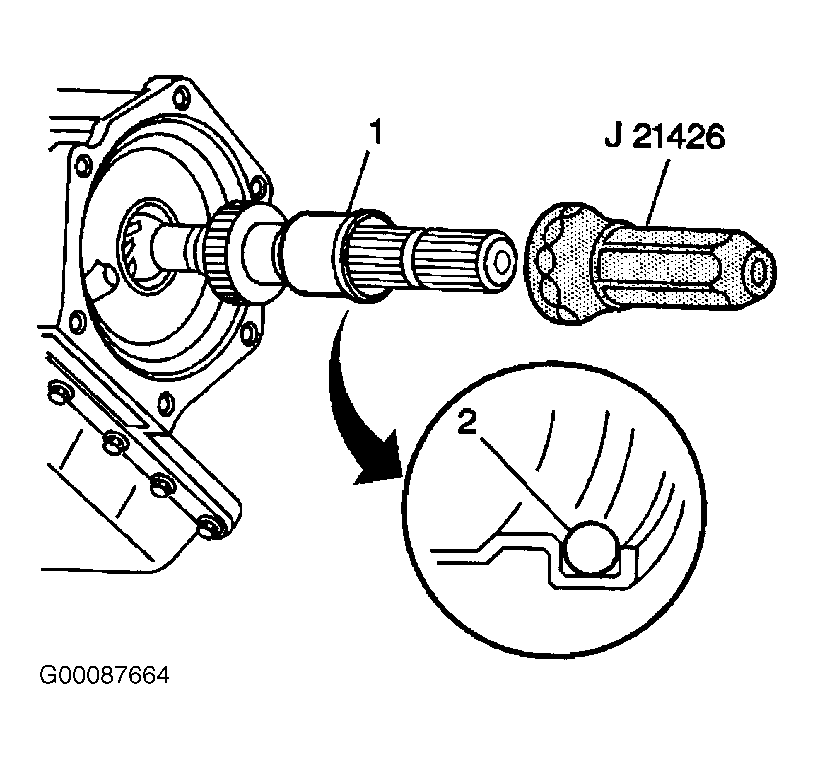

  1. Install the output shaft sleeve seal (2), if necessary. See Figure . Install the output shaft sleeve (1) using (J-21426), if necessary. Install a new case extension seal using a soft face hammer and (J-21426). See Fig 1 . Install a new case extension O-ring (3). Install the case extension (2).
  2. Install the case extension bolts (1). Tighten the case extension bolts (1) to 26 ft. lbs. (35 N.m). Install the rear axle torque arm. See appropriate REAR article in SUSPENSION.
  3. Install the propeller shaft. See appropriate DRIVESHAFT & UNIVERSAL JOINTS article in DRIVE AXLES. Install the catalytic converter hanger. Lower the vehicle. Check the transmission fluid level.
Fig 1: Installing Case Extension Seal
G00087665Courtesy of GENERAL MOTORS CORP.
