Park/Neutral Position Switch: Installation

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the transmission control is still in the NEUTRAL position. Install the tang on the Park Neutral position switch, into the slot on the transmission control.

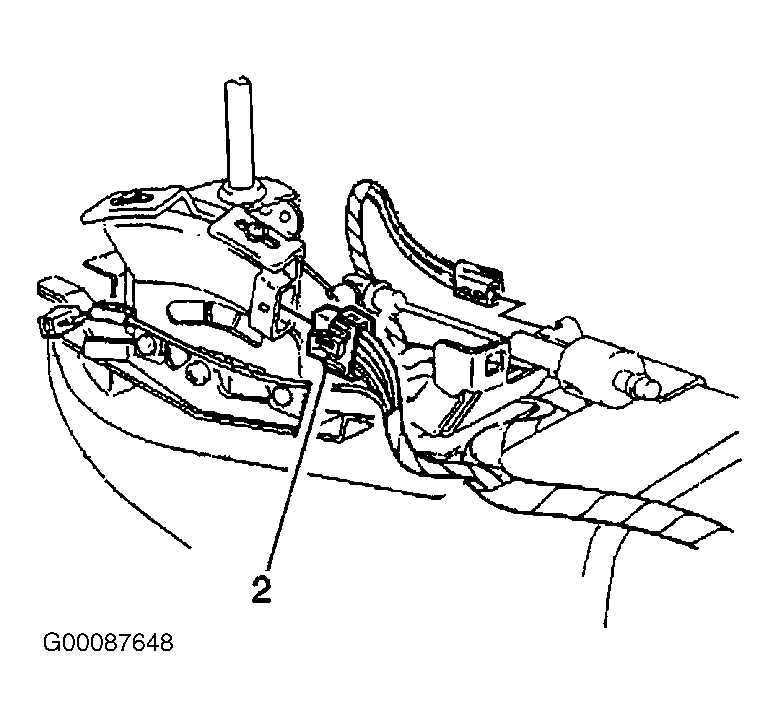

  2. Adjust the Park Neutral switch. See PARK/NEUTRAL POSITION SWITCH  under ADJUSTMENTS. Connect the Park Neutral position switch electrical connector (2). See Figure . Install the front floor console.
