Cylinder Bore Ridge Reaming

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the Cylinder Bore Ridge Reamer (J-24270), in order to remove the cylinder bore ring ridge, if required. See Fig 1.
    • Turn the crankshaft until the piston is at the bottom of the stroke.
    • Place a cloth on top of the piston.
    • Use the reamer in order to remove cylinder ring ridge.
    • Turn the crankshaft so the piston is at the top of the stroke.
    • Remove the cloth.
    • Remove the cutting debris from the cylinder and piston.

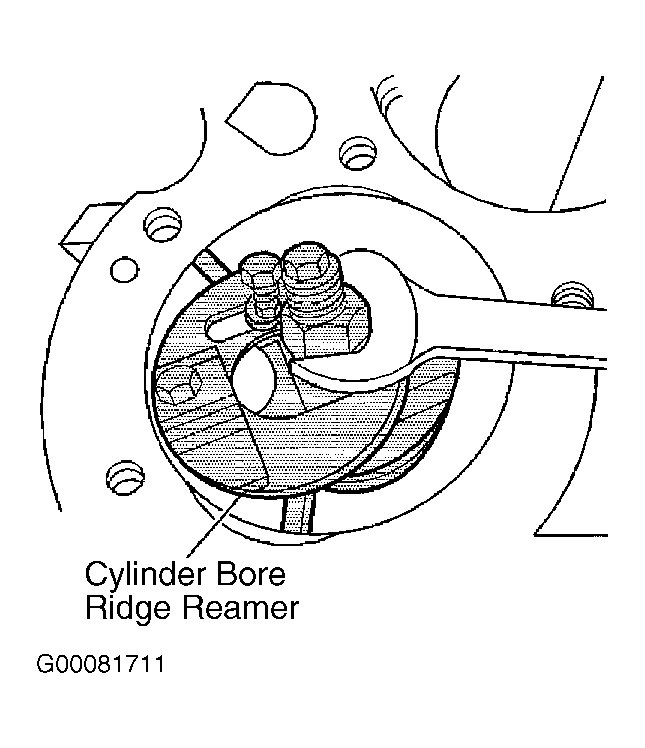

Fig 1: Reaming Cylinder Bores
G00081711Courtesy of GENERAL MOTORS CORP.
