Oil Pump: Disassembly

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

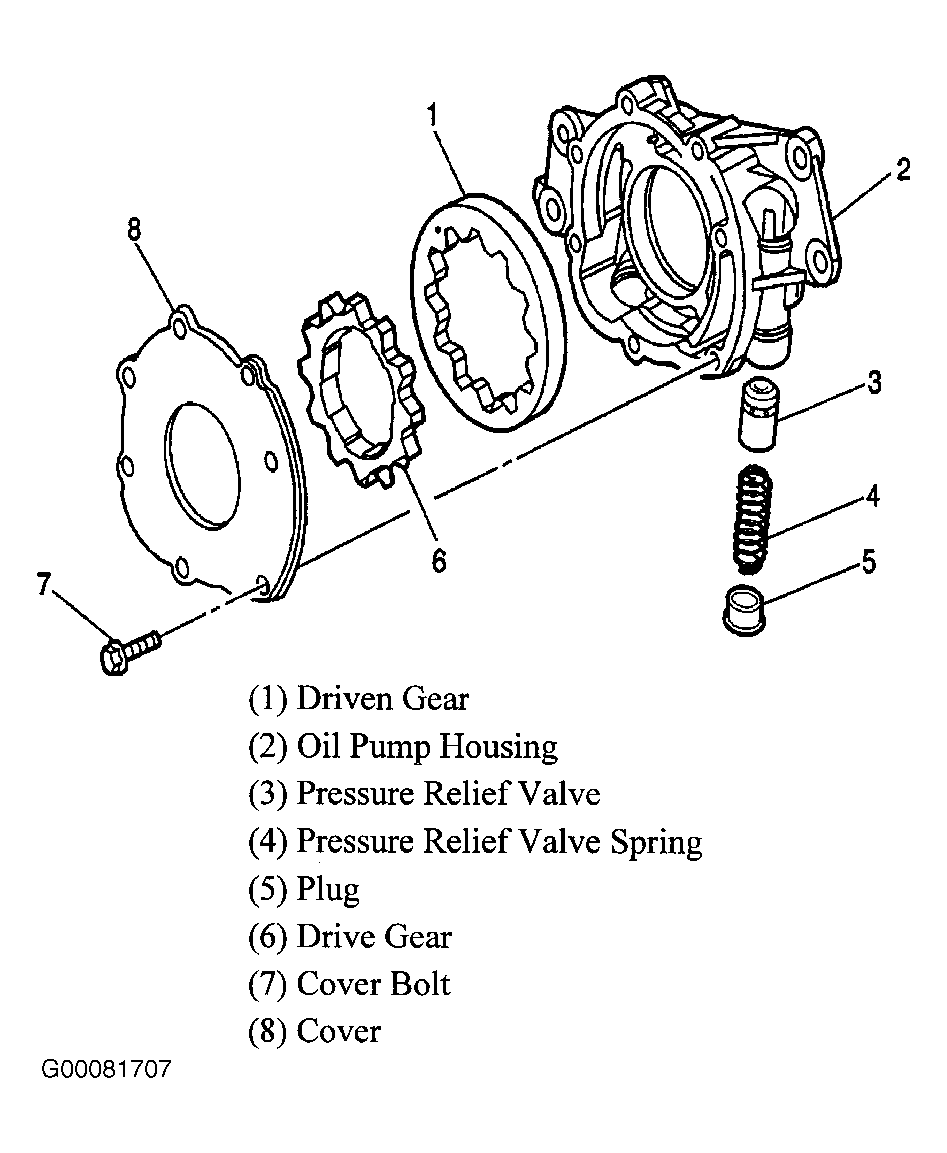

  1. Remove the oil pump cover bolts. See Figure. Remove the oil pump cover. Remove the drive gear. Remove the driven gear.
  2. Remove the pressure relief valve plug. Remove the pressure relief valve spring. Remove the pressure relief valve. Inspect the oil pump components.
