Removal & Installation

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio. Remove the Daytime Running Light (DRL) ambient light sensor module from the HVAC duct. See Fig 1 .
  2. Disconnect the DRL module electrical connectors. See Fig 2 . Remove the DRL module.
  3. Installation Procedure Install the DRL module. Connect the DRL module electrical connectors. Slide the module onto the HVAC duct retainers. Install the radio.

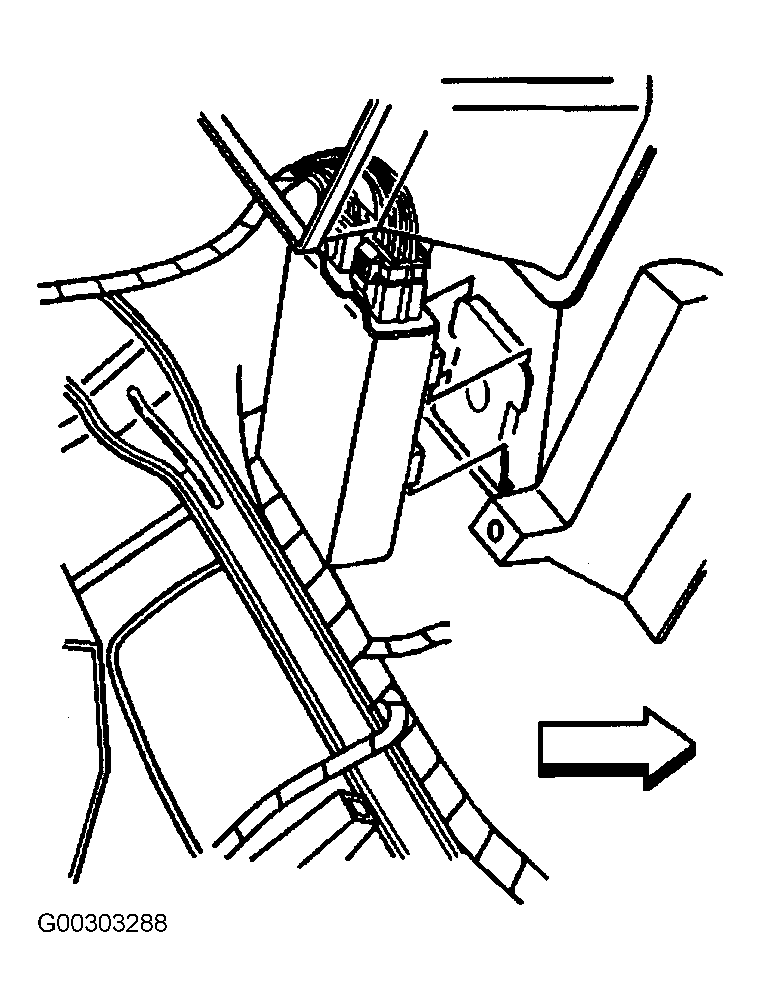

Fig 1: Removing/Installing DRL Ambient Light Sensor Module From HVAC Duct
G00303288Courtesy of GENERAL MOTORS CORP.

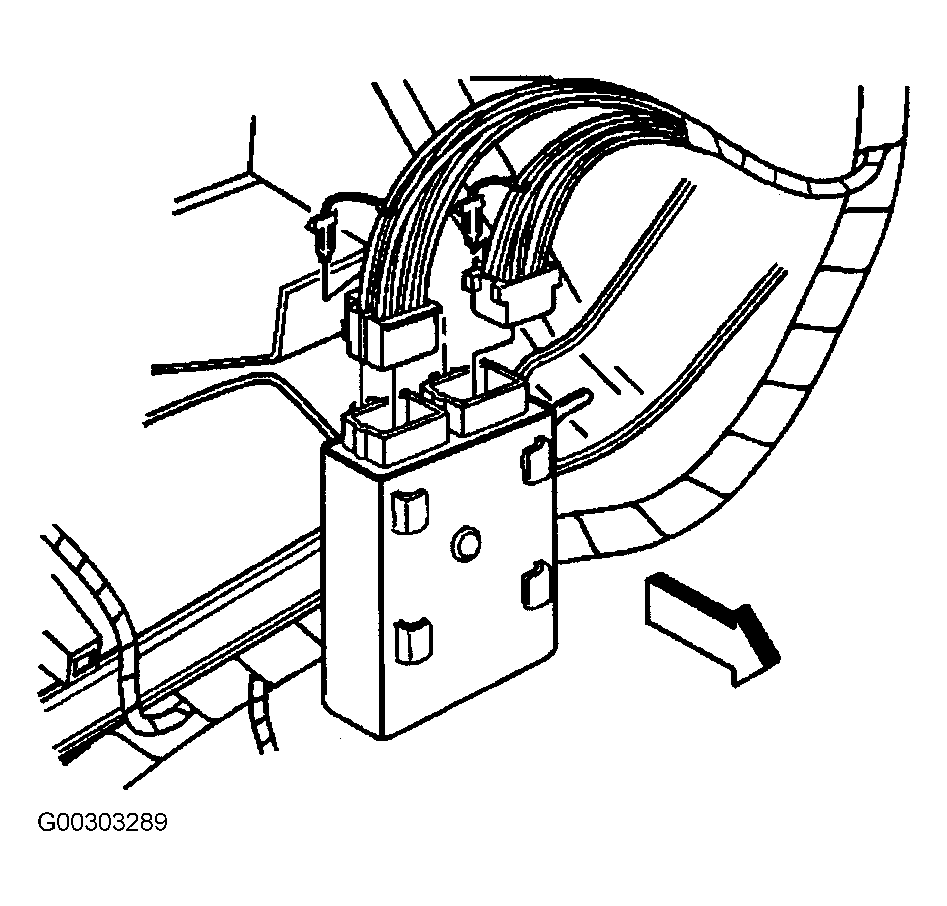

Fig 2: Disconnecting/Connecting DRL Module Electrical Connectors
G00303289Courtesy of GENERAL MOTORS CORP.
