Removal (3.8L Engine)

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Compressor related noise is generally A/C system related and not always caused by the compressor itself. Prior to replacing compressor, refer to A/C SYSTEM PERFORMANCE TEST .

Recover the refrigerant. See RECOVERY, EVACUATION & RECHARGING in GENERAL SERVICING PROCEDURES article in GENERAL SERVICING. Remove the serpentine drive belt. Disconnect the electrical connector from the A/C compressor. Remove the negative battery cable nut and cable from the engine block. See Fig 1. Raise and support the vehicle.
Remove the A/C compressor hose assembly bolt. See Fig 2. Remove the A/C compressor hose assembly. Discard the sealing washers. Remove the A/C compressor rear bolts. See Fig 3. Remove the A/C compressor bolts. See Fig 4. Remove the A/C compressor.

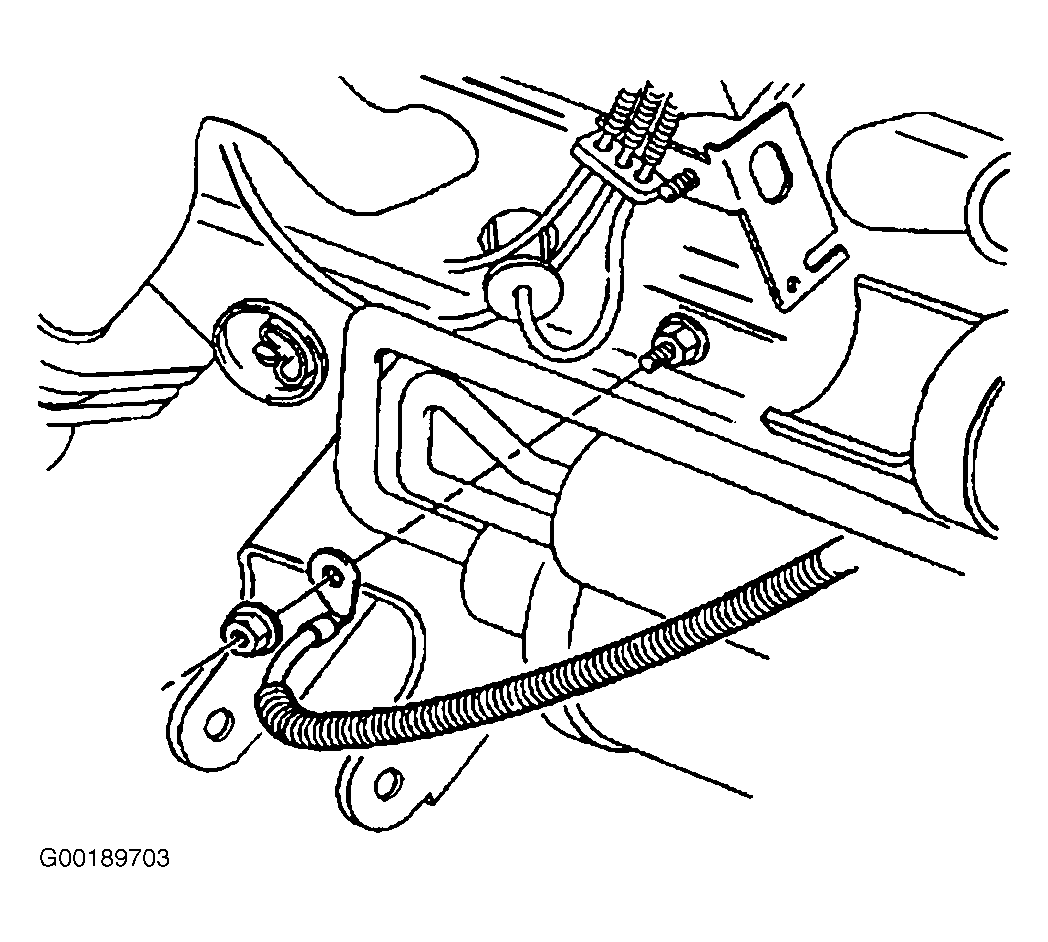

Fig 1: Removing & Installing Battery Ground Cable At Engine Block

Courtesy of GENERAL MOTORS CORP.

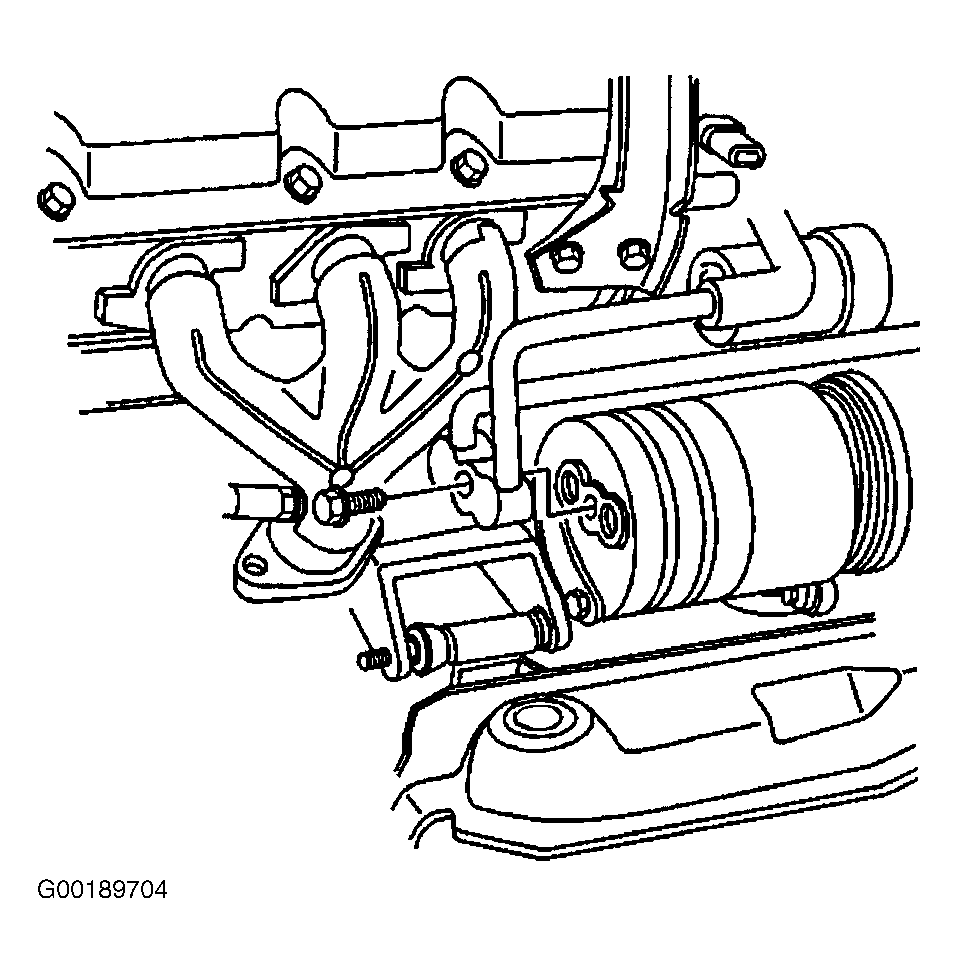

Fig 2: Removing & Installing Compressor Hose Bolt

Courtesy of GENERAL MOTORS CORP.

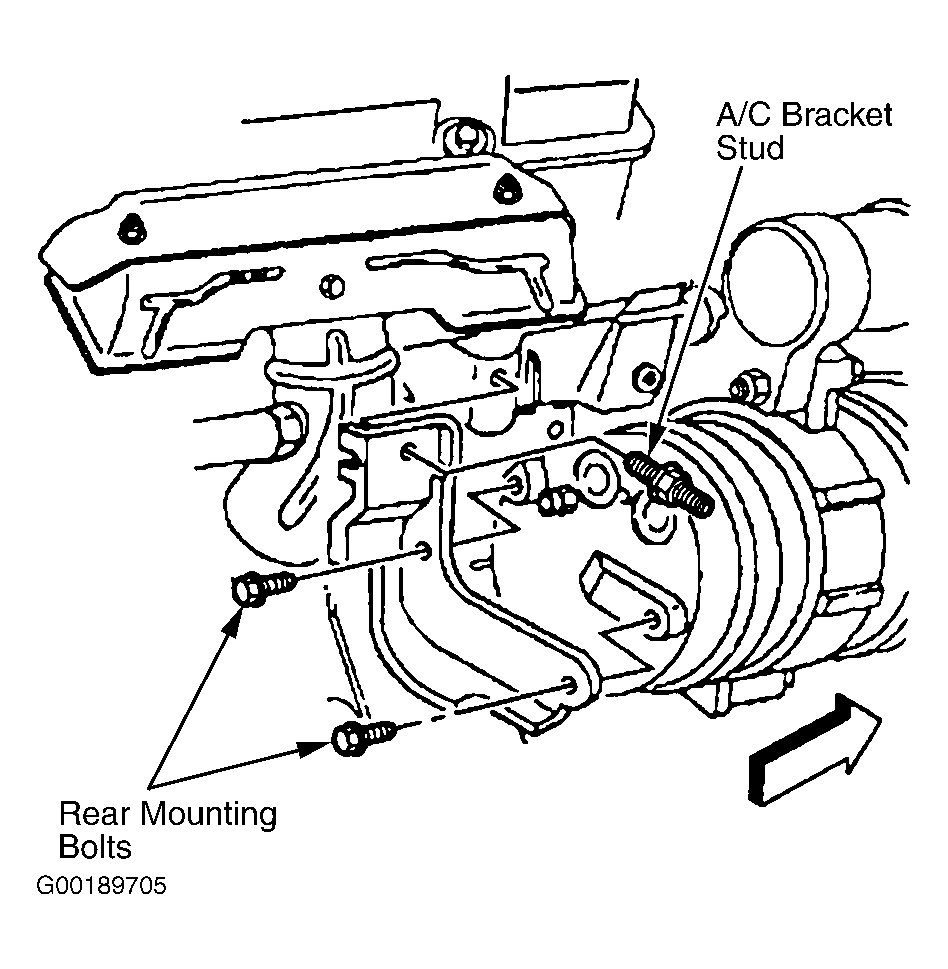

Fig 3: Identifying Compressor Rear Mounting Bolts (3.8L)

Courtesy of GENERAL MOTORS CORP.

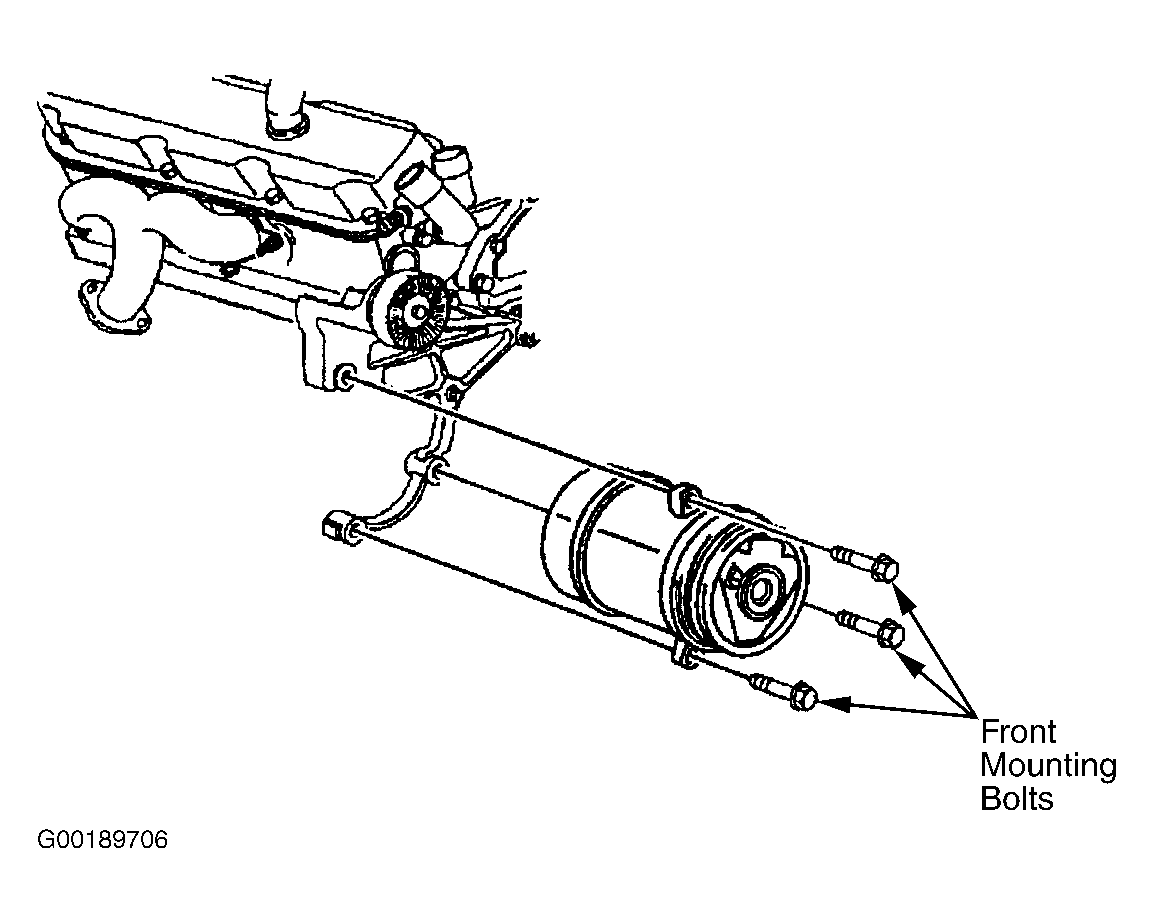

Fig 4: Identifying Compressor Front Mounting Bolts (3.8L)

Courtesy of GENERAL MOTORS CORP.
