Description & Operation: Notes
WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
The Air Delivery controls are divided into two primary areas. The first, Air Speed, is dependent upon blower motor speed. The second, Air Distribution, is related to various single or multiple air outlets.

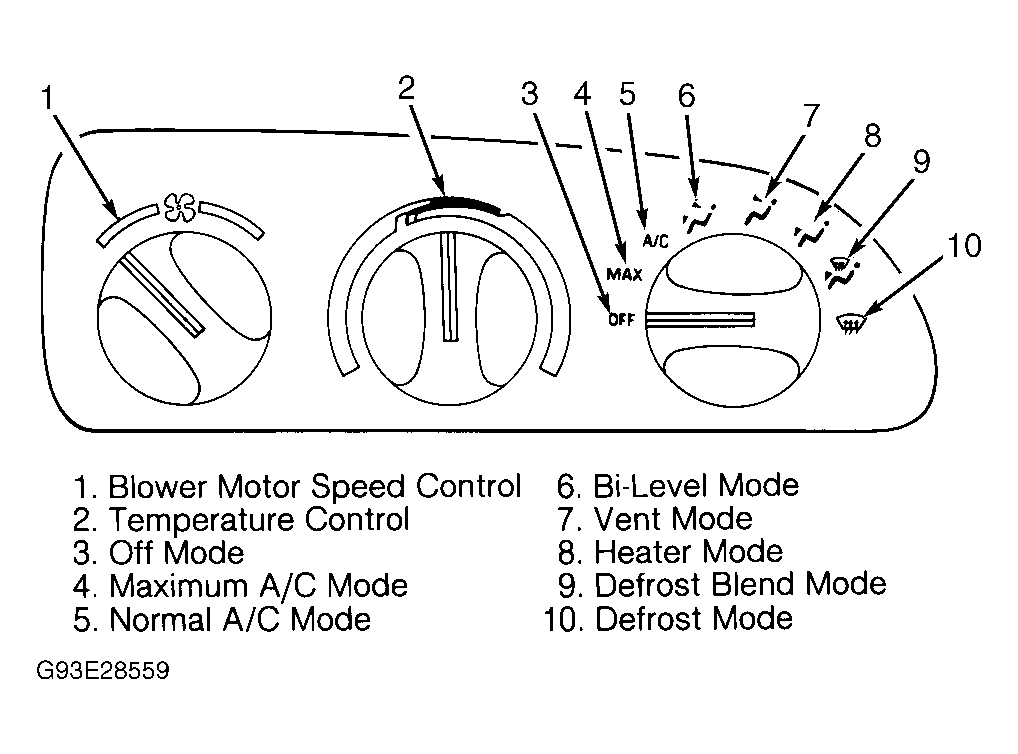

The Air Temperature controls are divided into three primary areas. The first, Heater Mode, is related to how the heater system responds when a heater mode is selected, and how the HVAC system provides the desired temperature for each setting. See Fig 1. The second, A/C Mode, is related to how the A/C system responds when an A/C mode is selected by the vehicle operator, and how the HVAC system provides the desired temperature for each setting. The third, A/C Cycle, describes the complete A/C cycle.
