Connector Identification

WARNING: This page is about a different car, the 2002 Pontiac Firebird and 2002 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.

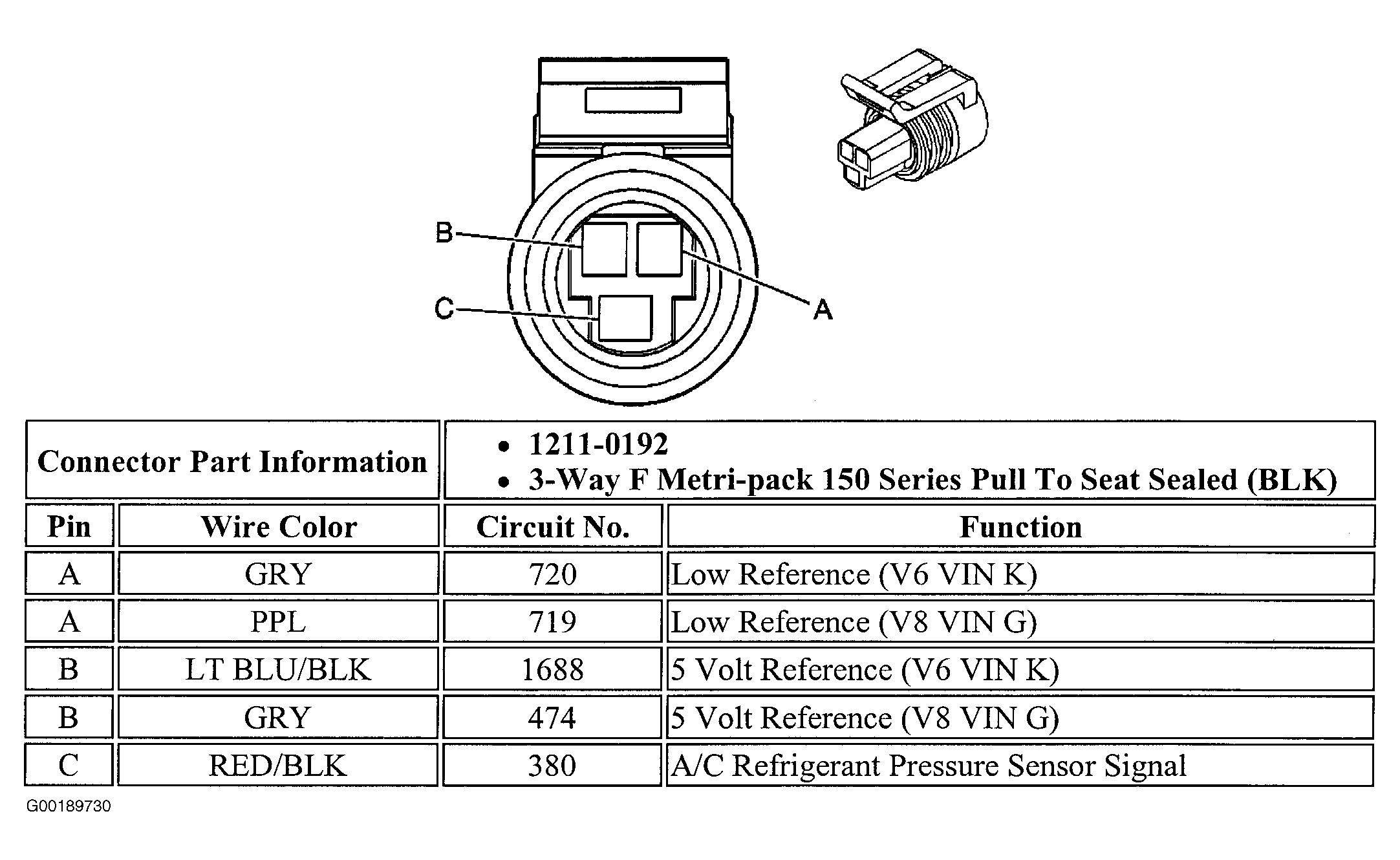

Fig 1: Identifying Refrigerant Pressure Sensor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

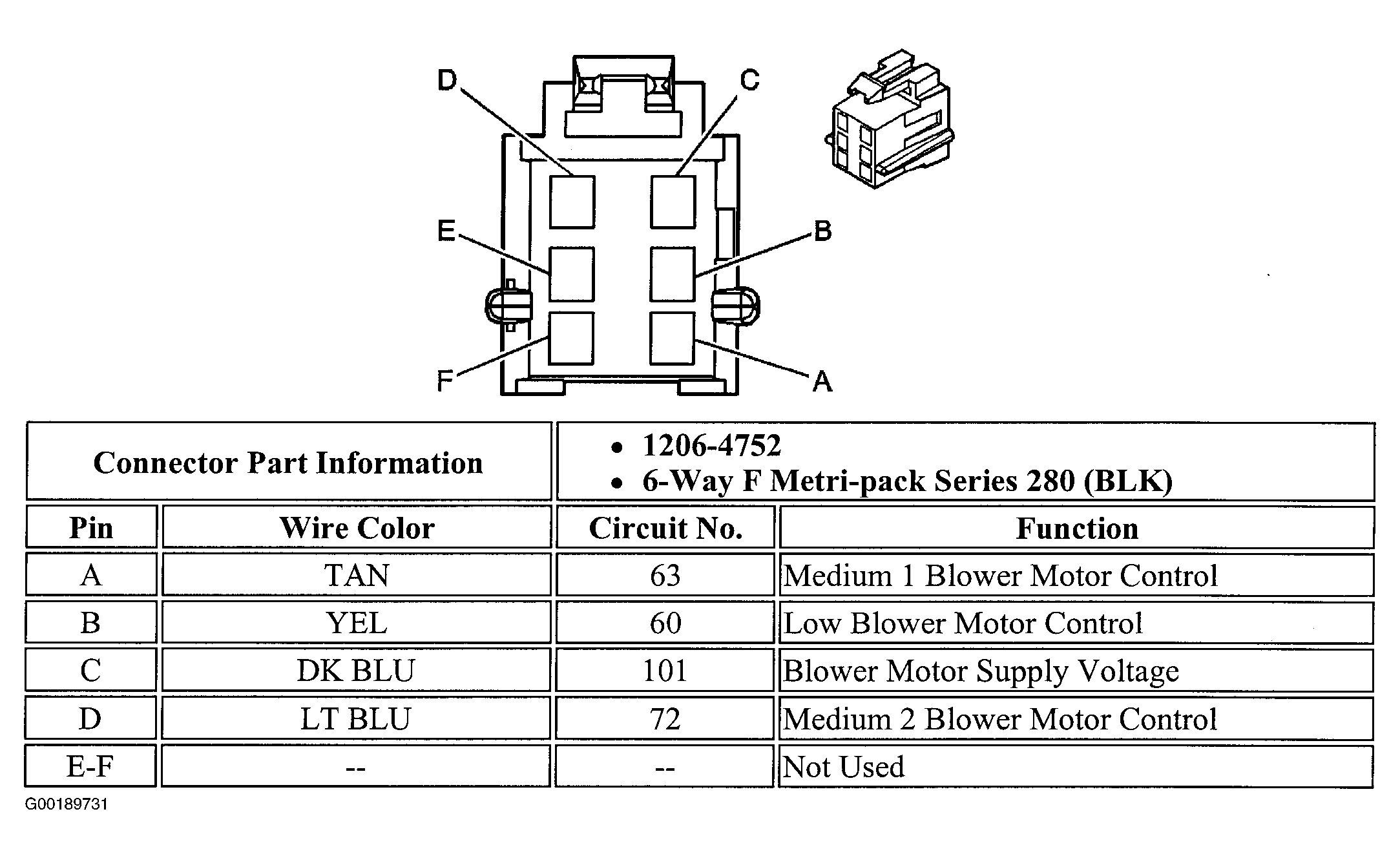

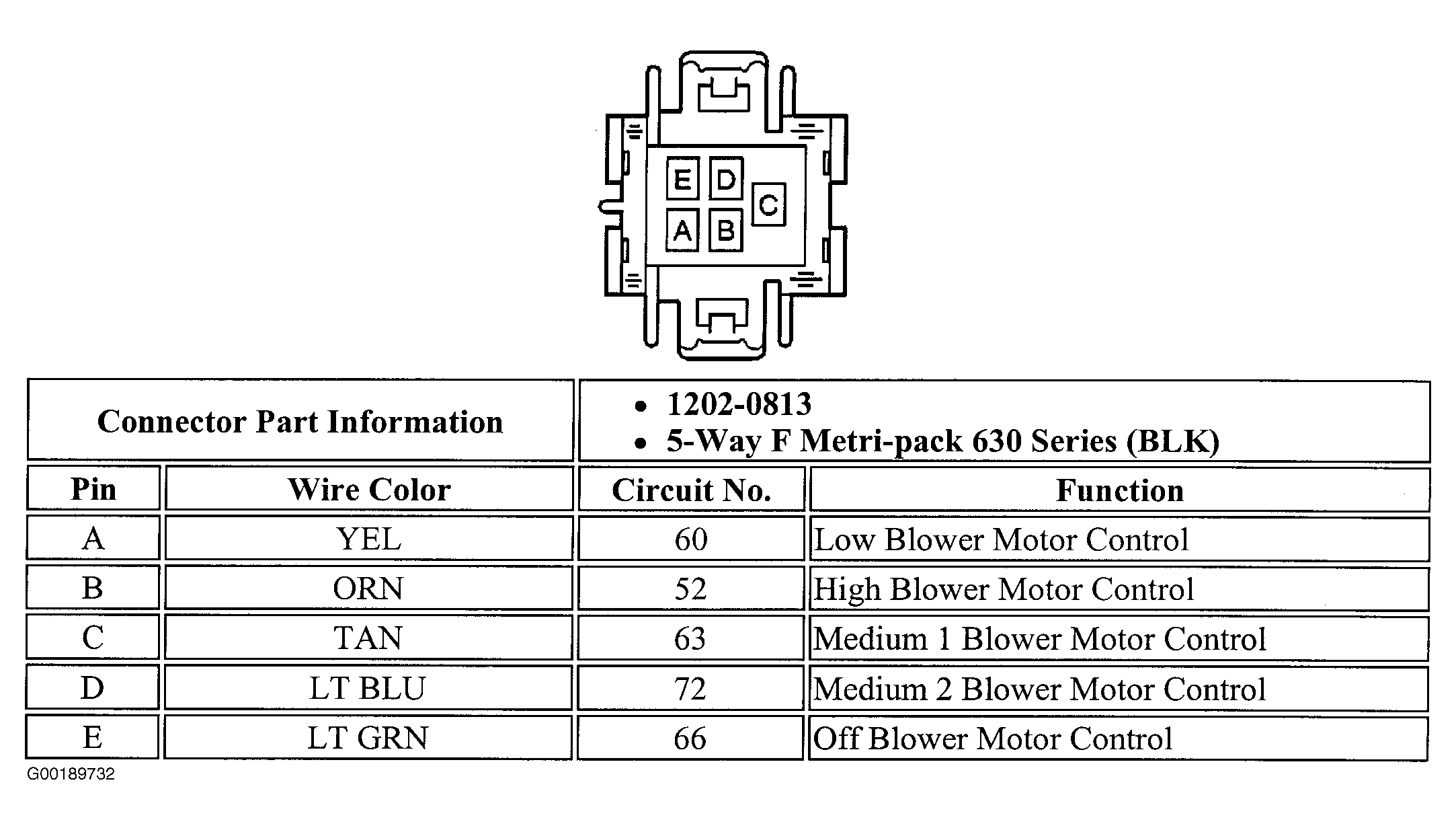

Fig 2: Identifying Blower Motor Resistor Harness Connector Terminals

Courtesy of GENERAL MOTORS CORP.

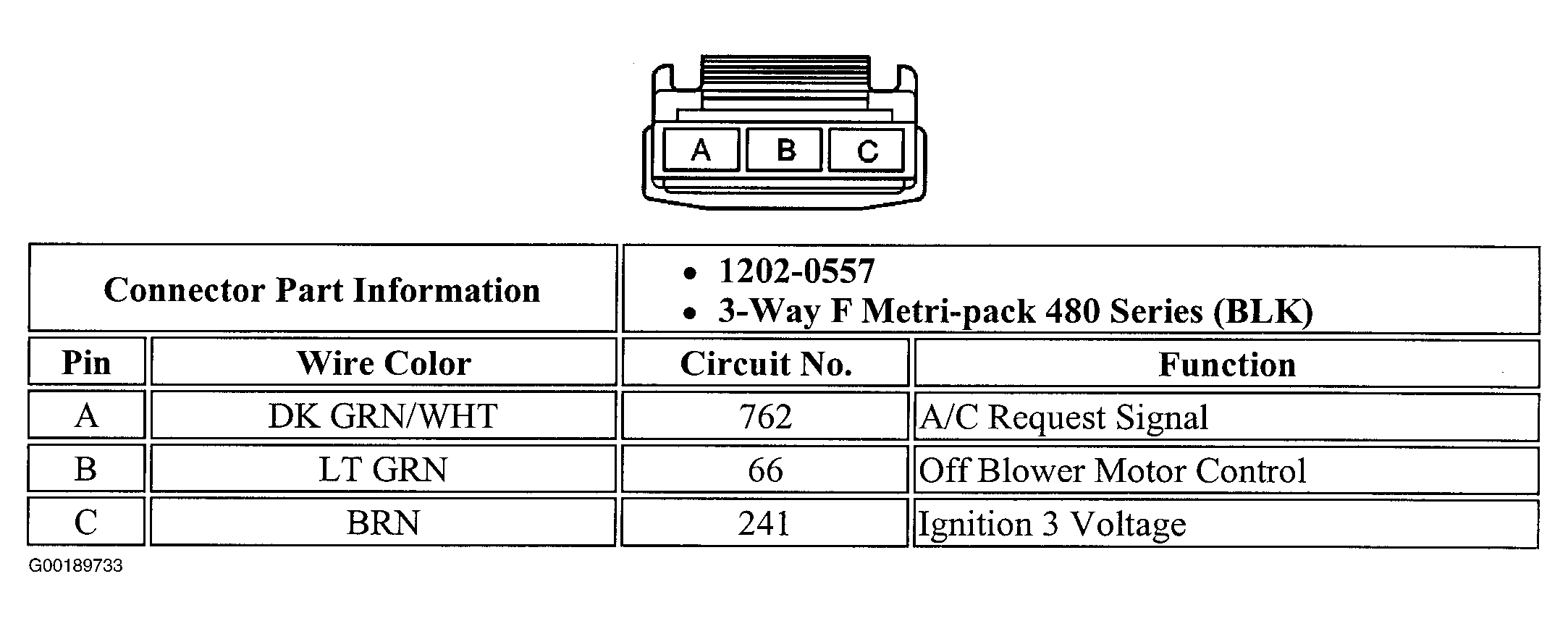

Fig 3: Identifying HVAC Control Harness Connector (C1) Terminals

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying HVAC Control Harness Connector (C2) Terminals

Courtesy of GENERAL MOTORS CORP.
